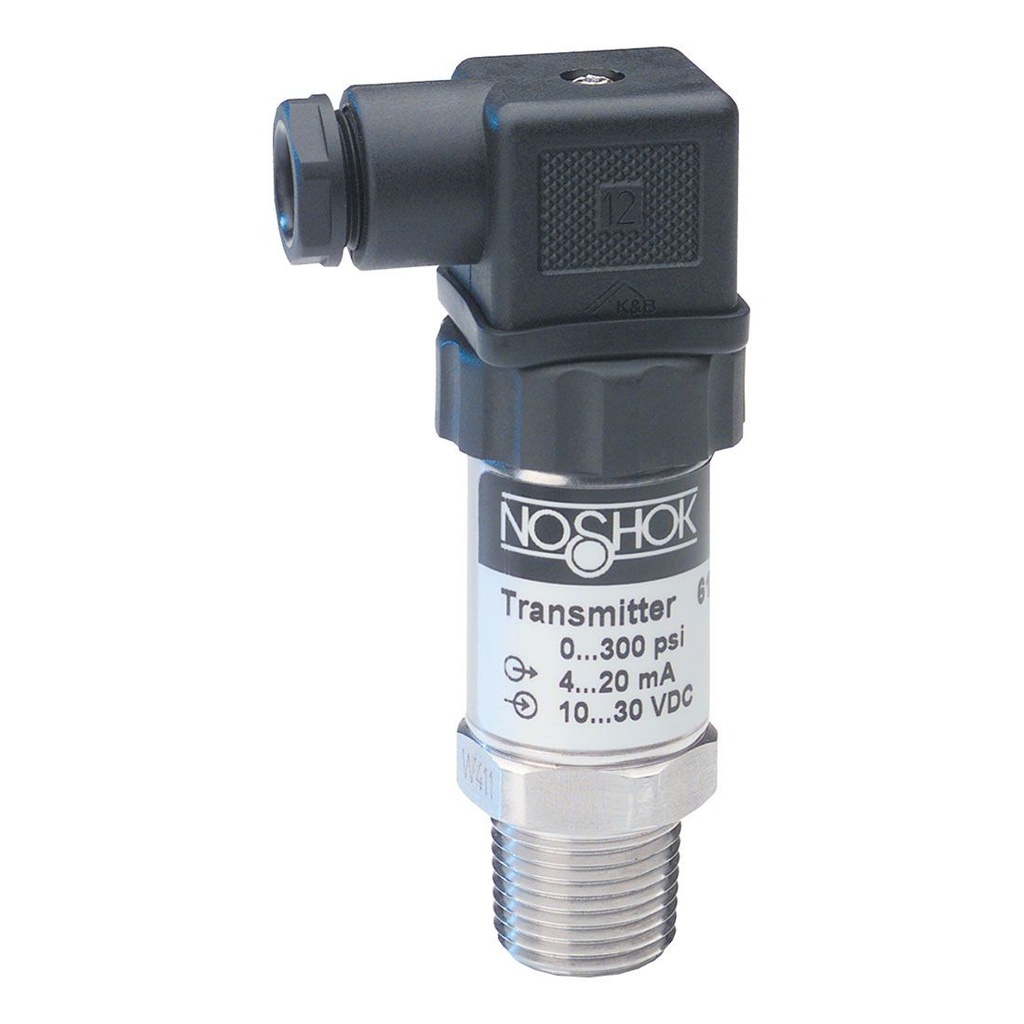

Representative photo. Please check item description for details.
| OBSOLETE | 615 Series High Accuracy Heavy-Duty Pressure Transducer, Internal Diaphragm, 0 psig to 15,000 psig
Manufacturer: Noshok Inc
Mfg Product Code: 615-15000-1-1-8-36
Weight: 0.45 lb(s)
On Hand: 0
This product will be discontinued March 31, 2024. Please use the Noshok PT Series Crossover Tool to find the new equivalent part number.
- Vacuum ranges through 0 psig to 145,000 psig; absolute ranges from 0 psia to 15 psia through 0 psia to 300 psia
- Current and voltage outputs available
- 316 and 17-4PH Stainless Steel wetted parts
- CE compliant to suppress RFI, EMI and ESD
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
| OBSOLETE | 615 Series High Accuracy Heavy-Duty Pressure Transducer, Internal Diaphragm, 0 psig to 15,000 psig
Measurement Maximum:15000.0
Process Connection Type:NPT-Male
Max Operating Pressure:15000 psid
Case Material:316 SS
Measurement Minimum:0
Output Communication Protocol:4-20 mA, 2-wire
Input Voltage:10-30 VDC
Ingress Protection:IP65
Response Time:≤ 1 ms
Electrical Connector Type:Integral Cable
Cord/Cable Length:3 ft
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Alternative Products
Specifications
| Measurement Maximum | 15000.0 |
| Process Connection Type | NPT-Male |
| Max Operating Pressure | 15000 psid |
| Case Material | 316 SS |
| Measurement Minimum | 0 |
| Output Communication Protocol | 4-20 mA, 2-wire |
| Input Voltage | 10-30 VDC |
| Ingress Protection | IP65 |
| Response Time | ≤ 1 ms |
| Electrical Connector Type | Integral Cable |
| Cord/Cable Length | 3 ft |
