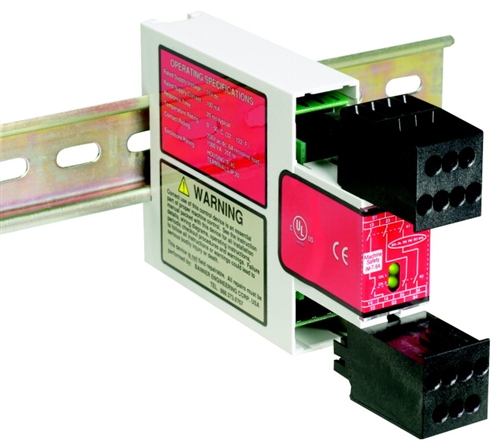

Relay Module for Safety Light Curtain/Control with EDM (IM-T-9A)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 61425
Weight: 0.54 lb(s)
Features:
- Relay Module for Safety Light Curtain/Control with EDM
- Supply Voltage: 24 V dc
- Safety Input: 1 Dual/Single Channel
- Safety Output: 3 NO, 6 Amp
- Aux Output: None
- Terminal Block: Removable
- Width: 22.5 mm
Relay Module for Safety Light Curtain/Control with EDM (IM-T-9A)
Measurement Maximum:0
Max Operating Temperature:50 °C
Power Consumption:0.1 A
Measurement Minimum:0
Ingress Protection:IP20
Device Type:Safety Relay
Feature: PCCC:No
Feature: Has EtherNet/IP:No
Feature: Modbus/TCP:No
Safe Output Rating:Relay - 6 A
Supply Voltage:24 VDC +/- 15%
Safety Module Type:Interface Module
Independently Controlled Safe Outputs:1
PL Rating:e
Safety Input - Dual Channel (Solid-State):50 mA @ 24 VDC +/- 15%
SISTEMA:B10d = 1 x 107
Relative Humidity:90% @ 50 °C
Vibration:10-55 Hz at 0.35 mm
Feature: LCD Display:No
SIL Rating:3
Safety Category Rating:4
Input Configuration:2 OSSD
Terminal Type:Screw
Input Operation:Simultaneous or Concurrent
Number of Safe Inputs:1
Output Configuration:3 NO
Safety Mat:No
Response Time:≤20 ms
Number of Stored Colors:1
Country of Origin:US
Feature: Common Ethernet Protocol:No
Electrical Life:1,000,000 @ 450 VA
Feature: E-Stops/Rope Pulls:No
Feature: Expandable:No
Feature: Removable Terminals:Yes
Feature: Gate Switch (NC/NC) Input:No
Feature: Gate Switch (NC/NO) Input:No
Feature: Gate Switch (OSSD) Input:No
Feature: Light Curtains/Scanner with EDM Input:Yes
Feature: Light Curtains/Scanner without EDM Input:No
Feature: Motor Speed:No
Feature: Muting:No
Feature: Safety Mat:No
Feature: In-Series Diagnostics:No
Mechanical Life:20 mil
Specifications
| Measurement Maximum | 0 |
| Max Operating Temperature | 50 °C |
| Power Consumption | 0.1 A |
| Measurement Minimum | 0 |
| Ingress Protection | IP20 |
| Device Type | Safety Relay |
| Feature: PCCC | No |
| Feature: Has EtherNet/IP | No |
| Feature: Modbus/TCP | No |
| Safe Output Rating | Relay - 6 A |
| Supply Voltage | 24 VDC +/- 15% |
| Safety Module Type | Interface Module |
| Independently Controlled Safe Outputs | 1 |
| PL Rating | e |
| Safety Input - Dual Channel (Solid-State) | 50 mA @ 24 VDC +/- 15% |
| SISTEMA | B10d = 1 x 107 |
| Relative Humidity | 90% @ 50 °C |
| Vibration | 10-55 Hz at 0.35 mm |
| Feature: LCD Display | No |
| SIL Rating | 3 |
| Safety Category Rating | 4 |
| Input Configuration | 2 OSSD |
| Terminal Type | Screw |
| Input Operation | Simultaneous or Concurrent |
| Number of Safe Inputs | 1 |
| Output Configuration | 3 NO |
| Safety Mat | No |
| Response Time | ≤20 ms |
| Number of Stored Colors | 1 |
| Country of Origin | US |
| Feature: Common Ethernet Protocol | No |
| Electrical Life | 1,000,000 @ 450 VA |
| Feature: E-Stops/Rope Pulls | No |
| Feature: Expandable | No |
| Feature: Removable Terminals | Yes |
| Feature: Gate Switch (NC/NC) Input | No |
| Feature: Gate Switch (NC/NO) Input | No |
| Feature: Gate Switch (OSSD) Input | No |
| Feature: Light Curtains/Scanner with EDM Input | Yes |
| Feature: Light Curtains/Scanner without EDM Input | No |
| Feature: Motor Speed | No |
| Feature: Muting | No |
| Feature: Safety Mat | No |
| Feature: In-Series Diagnostics | No |
| Mechanical Life | 20 mil |
