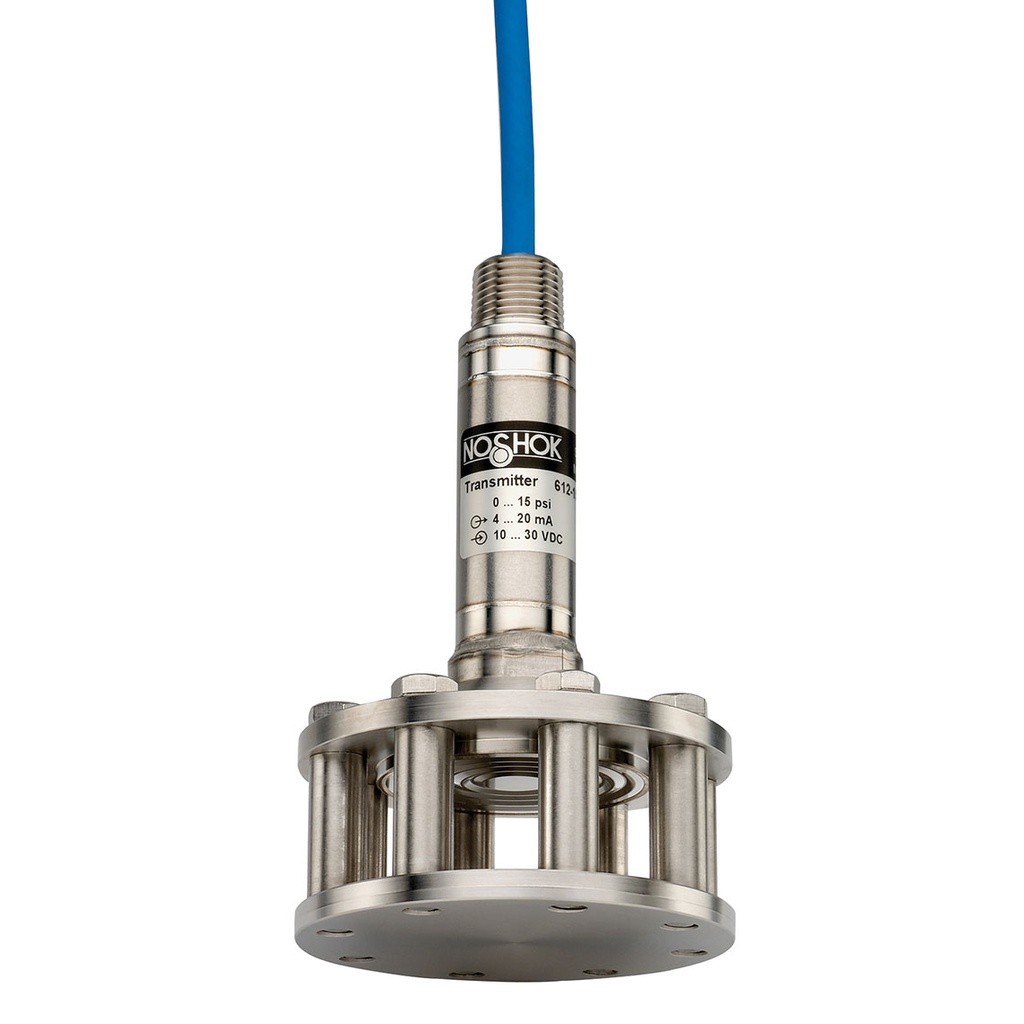

613 Series Cage-Protected Submersible Level Transmitter, 0 psi to 10 psi, 100' Std PUR Cable
Manufacturer: Noshok Inc
Mfg Product Code: 613-10-1-1-100
Weight: 0.01 lb(s)
0 to 10 psig, 0.25% Accy BFSL, 4 to 20 mA O/P Cage Protected Submersible Transducer w/100 ft PUR Cable
- Ranges from 0 psi to 5 psi through 0 psi to 300 psi
- Current & voltage outputs available
- 316 Stainless Steel and Polyurethane wetted parts
- CE compliant to suppress RFI, EMI and ESD
Applications:
- Lift stations
- Sewage
- Slurry tanks
- Storm canals
- Water & wastewater
- Wet wells
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
613 Series Cage-Protected Submersible Level Transmitter, 0 psi to 10 psi, 100' Std PUR Cable
0 to 10 psig, 0.25% Accy BFSL, 4 to 20 mA O/P Cage Protected Submersible Transducer w/100 ft PUR Cable
Pressure Range:0 psi to 10 psi (23.10 ft/H2O)
Min Operating Pressure:0 psi
Max Operating Pressure:10 psi
Min Operating Temperature:14 °F
Product Unit of Measure:psi
Max Operating Temperature:122 °F
Accuracy:±0.25% full scale (BFSL)
Case Material:316 SS
Wetted Material:316 SS
Output Communication Protocol:4-20 mA
Input Voltage:10-30 VDC
Ingress Protection:IP68
Vibration:15 g
Response Time:≤1 ms
Shock:100 g
Electrical Connector Type:PUR Cable
Proof Pressure:2x Range
Burst Pressure:4x Range
Cable Type:100' Std PUR Cable
Cable Length (ft):100.0
Cord/Cable Length:100 ft
Specifications
| Pressure Range | 0 psi to 10 psi (23.10 ft/H2O) |
| Min Operating Pressure | 0 psi |
| Max Operating Pressure | 10 psi |
| Min Operating Temperature | 14 °F |
| Product Unit of Measure | psi |
| Max Operating Temperature | 122 °F |
| Accuracy | ±0.25% full scale (BFSL) |
| Case Material | 316 SS |
| Wetted Material | 316 SS |
| Output Communication Protocol | 4-20 mA |
| Input Voltage | 10-30 VDC |
| Ingress Protection | IP68 |
| Vibration | 15 g |
| Response Time | ≤1 ms |
| Shock | 100 g |
| Electrical Connector Type | PUR Cable |
| Proof Pressure | 2x Range |
| Burst Pressure | 4x Range |
| Cable Type | 100' Std PUR Cable |
| Cable Length (ft) | 100.0 |
| Cord/Cable Length | 100 ft |
