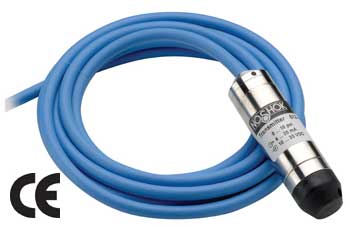

612 Series Submersible Level Transmitter, Front Flush Diaphragm, 0 psig to 60 psig, Desiccant Cartridge
Manufacturer: Noshok Inc
Mfg Product Code: 612-60-1-1-N-150-DC
Weight: 0.45 lb(s)
Submersible Pressure Transmitter, Wetted Materials: 316 SS, Polyamide, Polyurethane, 0 psig to 60 psig, 0.25% Accuracy (BFSL), 4 mA to 20 mA Output, Nose Cone, 150 ft PUR Cable, Desiccant Cartridge
- Ranges from 0 inH2O to 50 inH2O through 0 psig to 1,000 psig
- Current and voltage outputs available
- 316 Stainless Steel, Polyamide and Polyurethane wetted parts
- CE compliant to suppress RFI, EMI and ESD
- Ideal for applications including irrigation, tank monitoring, water & wastewater and well head measurement
Applications
- Irrigation
- Tank monitoring
- Water & wastewater
- Well head measurement
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
612 Series Submersible Level Transmitter, Front Flush Diaphragm, 0 psig to 60 psig, Desiccant Cartridge
Submersible Pressure Transmitter, Wetted Materials: 316 SS, Polyamide, Polyurethane, 0 psig to 60 psig, 0.25% Accuracy (BFSL), 4 mA to 20 mA Output, Nose Cone, 150 ft PUR Cable, Desiccant Cartridge
Measurement Maximum:60.0
Process Connection Type:Nose Cone
Pressure Range:0 psig to 60 psig
Min Operating Pressure:0 psig
Max Operating Pressure:60 psig
Min Operating Temperature:14 °F
Product Unit of Measure:psig
Max Operating Temperature:122 °F
Accuracy:±0.25% full scale (BFSL)
Wetted Material:316 SS
Measurement Minimum:0
Output Communication Protocol:4-20 mA, 2-wire
Input Voltage:10-30 VDC
Ingress Protection:IP68
Response Time:≤1 ms
Electrical Connector Type:PUR Cable
Cable Length (ft):150.0
Cord/Cable Length:150 ft
Specifications
| Measurement Maximum | 60.0 |
| Process Connection Type | Nose Cone |
| Pressure Range | 0 psig to 60 psig |
| Min Operating Pressure | 0 psig |
| Max Operating Pressure | 60 psig |
| Min Operating Temperature | 14 °F |
| Product Unit of Measure | psig |
| Max Operating Temperature | 122 °F |
| Accuracy | ±0.25% full scale (BFSL) |
| Wetted Material | 316 SS |
| Measurement Minimum | 0 |
| Output Communication Protocol | 4-20 mA, 2-wire |
| Input Voltage | 10-30 VDC |
| Ingress Protection | IP68 |
| Response Time | ≤1 ms |
| Electrical Connector Type | PUR Cable |
| Cable Length (ft) | 150.0 |
| Cord/Cable Length | 150 ft |
