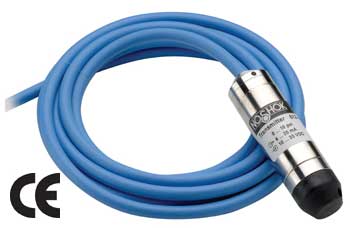

612 Series Submersible Level Transmitter, Front Flush Diaphragm, 0 inH₂O to 400 inH₂O
Manufacturer: Noshok Inc
Mfg Product Code: 612-400inH2O-1-1-N-50
Weight: 0.45 lb(s)
Submersible Pressure Transmitter, Wetted Materials: 316 SS, Polyamide, Polyurethane, 0 inH2O to 400 inH2O, 0.25% Accuracy (BFSL), 4 mA to 20 mA Output, Nose Cone, 50 ft PUR Cable
- Ranges from 0 inH2O to 50 inH2O through 0 psig to 1,000 psig
- Current and voltage outputs available
- 316 Stainless Steel, Polyamide and Polyurethane wetted parts
- CE compliant to suppress RFI, EMI and ESD
- Ideal for applications including irrigation, tank monitoring, water & wastewater and well head measurement
Applications
- Irrigation
- Tank monitoring
- Water & wastewater
- Well head measurement
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
612 Series Submersible Level Transmitter, Front Flush Diaphragm, 0 inH₂O to 400 inH₂O
Submersible Pressure Transmitter, Wetted Materials: 316 SS, Polyamide, Polyurethane, 0 inH2O to 400 inH2O, 0.25% Accuracy (BFSL), 4 mA to 20 mA Output, Nose Cone, 50 ft PUR Cable
Measurement Maximum:400.0
Process Connection Type:Nose Cone
Pressure Range:0 inH₂O to 400 inH₂O
Min Operating Pressure:0 inH₂O
Max Operating Pressure:400 inH2O
Min Operating Temperature:14 °F
Product Unit of Measure:in.H2O
Max Operating Temperature:122 °F
Accuracy:±0.25% full scale (BFSL)
Wetted Material:316 SS
Measurement Minimum:0
Output Communication Protocol:4-20 mA, 2-wire
Input Voltage:10-30 VDC
Ingress Protection:IP68
Response Time:≤1 ms
Electrical Connector Type:PUR Cable
Cable Length (ft):50.0
Cord/Cable Length:50 ft
Specifications
| Measurement Maximum | 400.0 |
| Process Connection Type | Nose Cone |
| Pressure Range | 0 inH₂O to 400 inH₂O |
| Min Operating Pressure | 0 inH₂O |
| Max Operating Pressure | 400 inH2O |
| Min Operating Temperature | 14 °F |
| Product Unit of Measure | in.H2O |
| Max Operating Temperature | 122 °F |
| Accuracy | ±0.25% full scale (BFSL) |
| Wetted Material | 316 SS |
| Measurement Minimum | 0 |
| Output Communication Protocol | 4-20 mA, 2-wire |
| Input Voltage | 10-30 VDC |
| Ingress Protection | IP68 |
| Response Time | ≤1 ms |
| Electrical Connector Type | PUR Cable |
| Cable Length (ft) | 50.0 |
| Cord/Cable Length | 50 ft |
