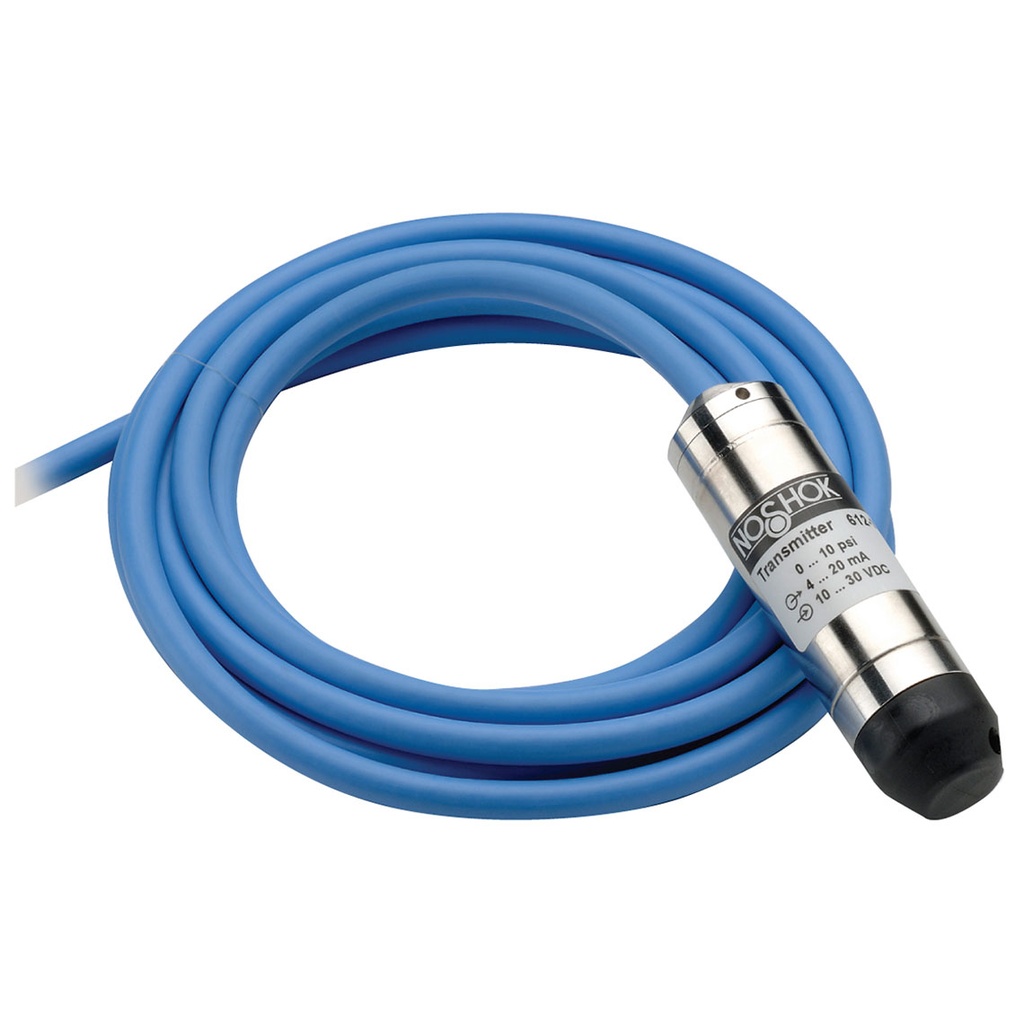

612 Series Submersible Level Transmitter, 0 psig to 25 psig, 80' Std PUR Cable, 0.125% Accuracy
Manufacturer: Noshok Inc
Mfg Product Code: 612-25-2-1-N-80
Weight: 25.0 lb(s)
- Ranges from 0 inH2O to 50 inH2O through 0 psig to 1,000 psig
- Current and voltage outputs available
- 316 Stainless Steel, Polyamide and Polyurethane wetted parts
Applications:
- Irrigation
- Tank monitoring
- Water & wastewater
- Well head measurement
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
612 Series Submersible Level Transmitter, 0 psig to 25 psig, 80' Std PUR Cable, 0.125% Accuracy
Measurement Maximum:25.0
Process Connection Type:Nose Cone
Pressure Range:0 psig to 25 psig (57.7 ftH2O)
Min Operating Pressure:0 psig
Max Operating Pressure:25 psig
Min Operating Temperature:14 °F
Product Unit of Measure:psig
Max Operating Temperature:122 °F
Accuracy:±0.25% full scale (BFSL)
Case Material:316 SS
Wetted Material:316 SS
Measurement Minimum:0
Output Communication Protocol:4-20 mA
Input Voltage:10-30 VDC
Ingress Protection:IP68
Vibration:15 g
Response Time:≤1 ms
Shock:100 g
Electrical Connector Type:PUR Cable
Proof Pressure:2x Range
Burst Pressure:4x Range
Cable Type:50' Std PUR Cable
Cable Length (ft):50.0
Cord/Cable Length:50 ft
Specifications
| Measurement Maximum | 25.0 |
| Process Connection Type | Nose Cone |
| Pressure Range | 0 psig to 25 psig (57.7 ftH2O) |
| Min Operating Pressure | 0 psig |
| Max Operating Pressure | 25 psig |
| Min Operating Temperature | 14 °F |
| Product Unit of Measure | psig |
| Max Operating Temperature | 122 °F |
| Accuracy | ±0.25% full scale (BFSL) |
| Case Material | 316 SS |
| Wetted Material | 316 SS |
| Measurement Minimum | 0 |
| Output Communication Protocol | 4-20 mA |
| Input Voltage | 10-30 VDC |
| Ingress Protection | IP68 |
| Vibration | 15 g |
| Response Time | ≤1 ms |
| Shock | 100 g |
| Electrical Connector Type | PUR Cable |
| Proof Pressure | 2x Range |
| Burst Pressure | 4x Range |
| Cable Type | 50' Std PUR Cable |
| Cable Length (ft) | 50.0 |
| Cord/Cable Length | 50 ft |
