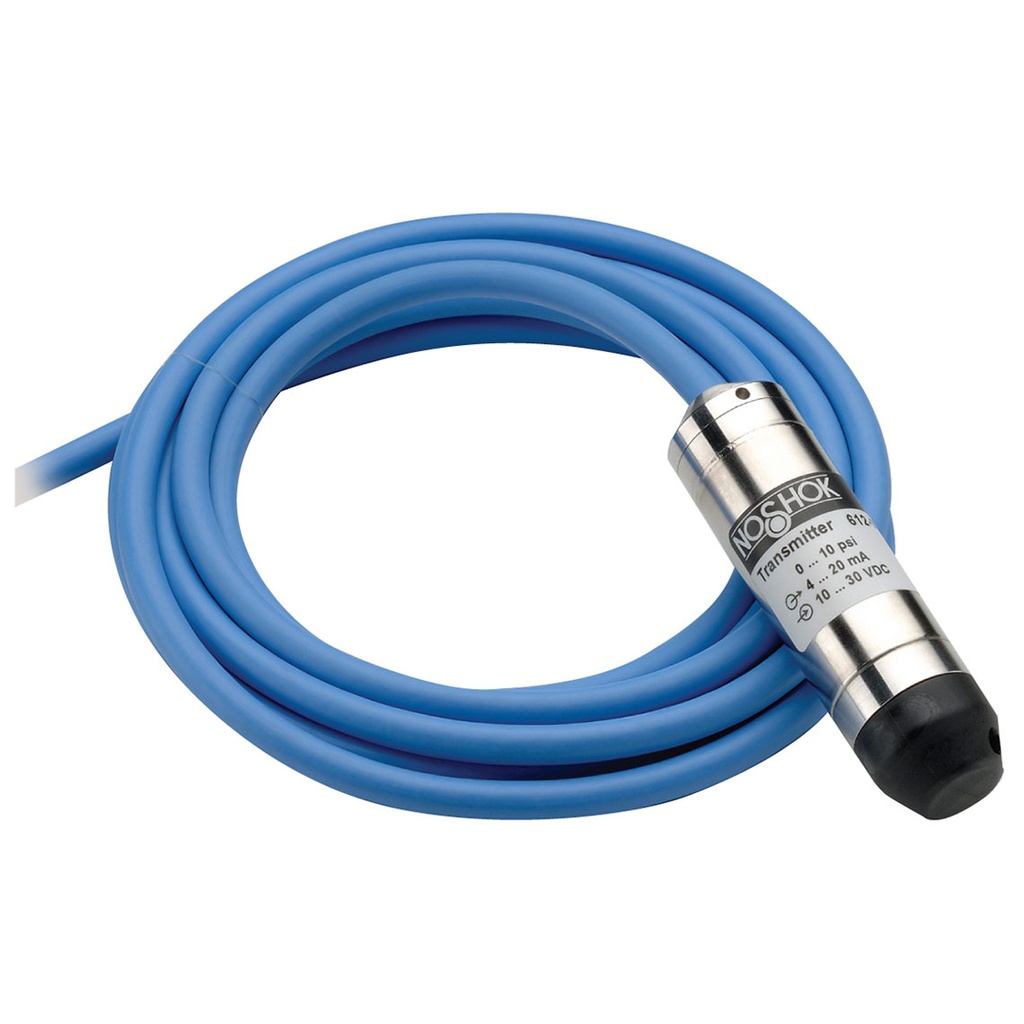

612 Series Submersible Pressure Transmitter, Wetted Materials: 316 SS, Polyamide, Polyurethane, 0 inH2O to 100 inH2O, 0.25% Accuracy (BFSL), 4 mA to 20 mA Output, Nose Cone, 35 ft PUR Cable
Manufacturer: Noshok Inc
Mfg Product Code: 612-100inH2O-1-1-N-35
Weight: 10.0 lb(s)
- Ranges from 0 inH2O to 50 inH2O through 0 psig to 1,000 psig
- Current and voltage outputs available
- 316 Stainless Steel, Polyamide and Polyurethane wetted parts
Applications:
- Irrigation
- Tank monitoring
- Water & wastewater
- Well head measurement
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
612 Series Submersible Pressure Transmitter, Wetted Materials: 316 SS, Polyamide, Polyurethane, 0 inH2O to 100 inH2O, 0.25% Accuracy (BFSL), 4 mA to 20 mA Output, Nose Cone, 35 ft PUR Cable
Measurement Maximum:100.0
Process Connection Type:Nose Cone
Min Operating Pressure:0 inH₂O
Max Operating Pressure:100 inH2O
Min Operating Temperature:14 °F
Product Unit of Measure:in.H20
Max Operating Temperature:122 °F
Accuracy:±0.25% full scale (BFSL)
Case Material:316 SS
Wetted Material:316 SS
Measurement Minimum:0 inh20
Output Communication Protocol:4-20 mA
Input Voltage:10-30 VDC
Ingress Protection:IP68
Vibration:15 g
Response Time:≤1 ms
Shock:100 g
Electrical Connector Type:PUR Cable
Proof Pressure:2x Range
Burst Pressure:4x Range
Cable Type:35' Std PUR Cable
Cable Length (ft):35.0
Cord/Cable Length:35 ft
Specifications
| Measurement Maximum | 100.0 |
| Process Connection Type | Nose Cone |
| Min Operating Pressure | 0 inH₂O |
| Max Operating Pressure | 100 inH2O |
| Min Operating Temperature | 14 °F |
| Product Unit of Measure | in.H20 |
| Max Operating Temperature | 122 °F |
| Accuracy | ±0.25% full scale (BFSL) |
| Case Material | 316 SS |
| Wetted Material | 316 SS |
| Measurement Minimum | 0 inh20 |
| Output Communication Protocol | 4-20 mA |
| Input Voltage | 10-30 VDC |
| Ingress Protection | IP68 |
| Vibration | 15 g |
| Response Time | ≤1 ms |
| Shock | 100 g |
| Electrical Connector Type | PUR Cable |
| Proof Pressure | 2x Range |
| Burst Pressure | 4x Range |
| Cable Type | 35' Std PUR Cable |
| Cable Length (ft) | 35.0 |
| Cord/Cable Length | 35 ft |
