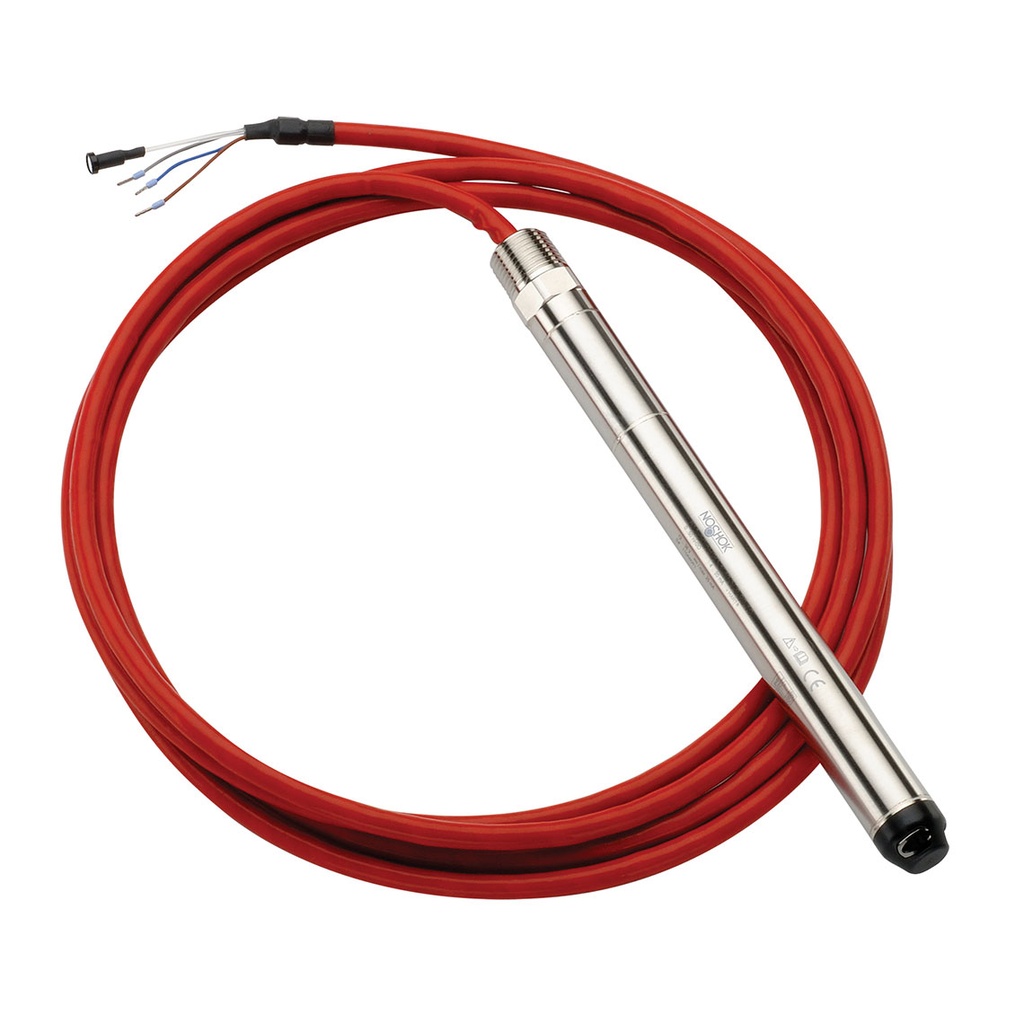

611 Series Small Diameter Submersible Level Transmitter, 0 psig to 100inch WC, 50' Std PUR Cable
Manufacturer: Noshok Inc
Mfg Product Code: 611-100inH2O-1-43-N-50
Weight: 5.0 lb(s)
Small Diameter Submersible Transmitter, Wetted Materials: 316 SS, 0 inH2O to 100 inH2O, ±1% of Span Accuracy, 4 mA to 20 mA Output + HART, Polyamide Nose Cone, 50 ft PUR Cable
- Hydrostatic level measurement for use in applications including bore holes and wells with small diameters (outer diameter 0.87")
- Low power output signals for battery-powered applications, and optional temperature output available
- 5:1 turndown using optional HART® signal
Applications:
- Well head measurement
- Groundwater monitoring
- Level measurement in open bodies of water
- Sewage lift and pumping stations
- Setting ponds and rainwater
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
611 Series Small Diameter Submersible Level Transmitter, 0 psig to 100inch WC, 50' Std PUR Cable
Small Diameter Submersible Transmitter, Wetted Materials: 316 SS, 0 inH2O to 100 inH2O, ±1% of Span Accuracy, 4 mA to 20 mA Output + HART, Polyamide Nose Cone, 50 ft PUR Cable
Cable Length:70 ft
Measurement Maximum:15.0
Process Connection Type:Nose Cone
Pressure Range:0 psig to 15 psig (34.6 ftH2O)
Min Operating Pressure:0 psig
Max Operating Pressure:15 psig
Min Operating Temperature:14 °F
Product Unit of Measure:psig
Max Operating Temperature:122 °F
Accuracy:±1.0 of span
Case Material:316 SS
Wetted Material:316 SS
Measurement Minimum:0
Output Communication Protocol:4-20 mA
Input Voltage:4-20 mA
Ingress Protection:IP68
Vibration:4 g
Electrical Connector Type:PUR Cable
Max Submersion Depth:325 ft
Proof Pressure:5x Range
Cable Type:70' Standard PUR Cable
Cable Length (ft):70.0
Cord/Cable Length:70 ft
Specifications
| Enviromag | |
|---|---|
| Cable Length | 70 ft |
| Uncategorized | |
|---|---|
| Measurement Maximum | 15.0 |
| Process Connection Type | Nose Cone |
| Pressure Range | 0 psig to 15 psig (34.6 ftH2O) |
| Min Operating Pressure | 0 psig |
| Max Operating Pressure | 15 psig |
| Min Operating Temperature | 14 °F |
| Product Unit of Measure | psig |
| Max Operating Temperature | 122 °F |
| Accuracy | ±1.0 of span |
| Case Material | 316 SS |
| Wetted Material | 316 SS |
| Measurement Minimum | 0 |
| Output Communication Protocol | 4-20 mA |
| Input Voltage | 4-20 mA |
| Ingress Protection | IP68 |
| Vibration | 4 g |
| Electrical Connector Type | PUR Cable |
| Max Submersion Depth | 325 ft |
| Proof Pressure | 5x Range |
| Cable Type | 70' Standard PUR Cable |
| Cable Length (ft) | 70.0 |
| Cord/Cable Length | 70 ft |
