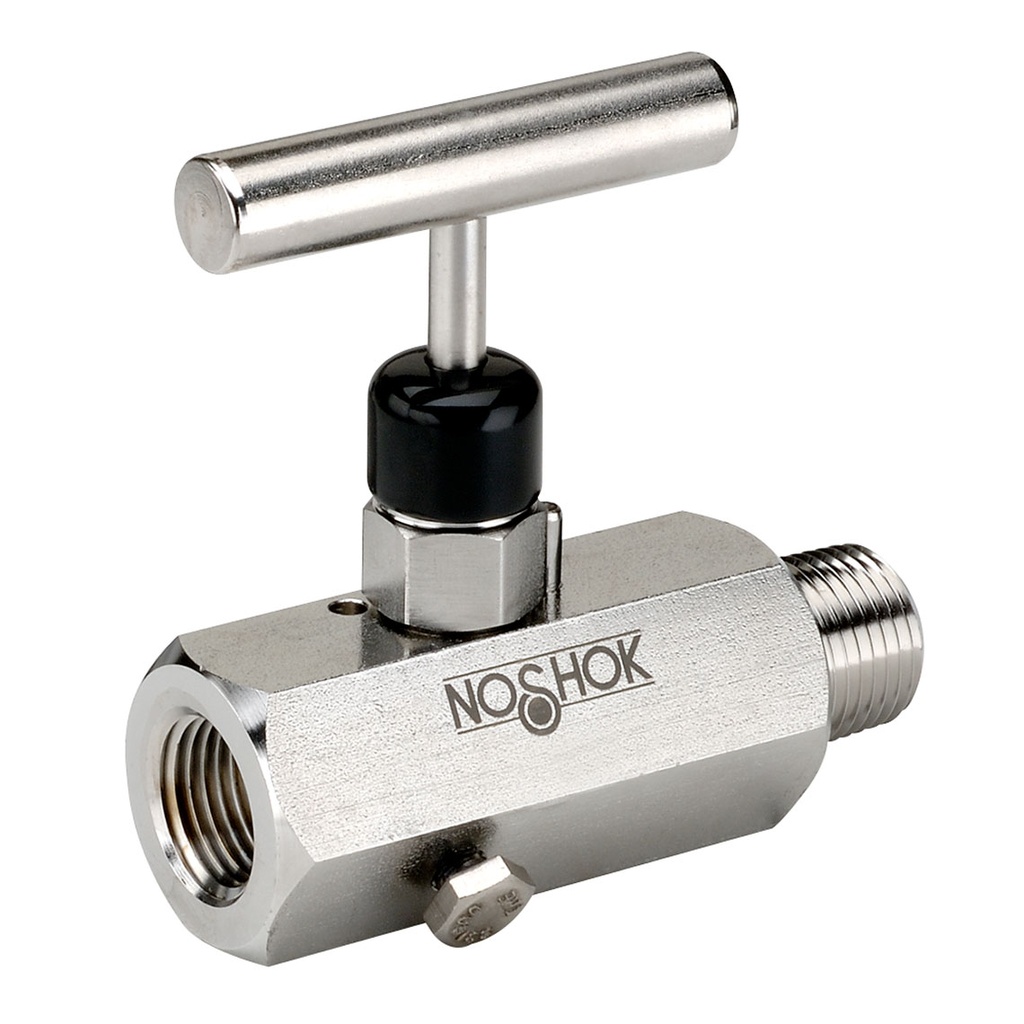

600 Series Block & Bleed, Hard Seat Needle Valve, 1/2" NPT, Male x Female, 316 SS, 0.187" Orifice
Manufacturer: Noshok Inc
Mfg Product Code: 604-MFS
Weight: 1.3 lb(s)
On Hand: 0
1/2" NPT, Male x Female, 316 SS, Hard Seat, 0.187" Orifice Block and Bleed Valve
- Block & bleed design allows pressure to be bled off without disturbing the permanent piping installation, allowing quick and easy removal or replacement of instruments
- 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
- Blow-out proof stem provides a secondary stem seal in the full open position
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
600 Series Block & Bleed, Hard Seat Needle Valve, 1/2" NPT, Male x Female, 316 SS, 0.187" Orifice
1/2" NPT, Male x Female, 316 SS, Hard Seat, 0.187" Orifice Block and Bleed Valve
Orifice Size:0.187"
Seat:Hard Seat
Process Connection Type:NPT-Male/NPT-Female
Valve Type:Male-Female
Valve Material:316 SS
Pressure Rating:10,000 psi @ 200 °F
Flow Coefficient:0.44 Cv
Process Connection Size:1/2"
Measurement Minimum:0
Body Material:316 SS
Seat Type:Hard Seat
Specifications
| Orifice Size | 0.187" |
| Seat | Hard Seat |
| Process Connection Type | NPT-Male/NPT-Female |
| Valve Type | Male-Female |
| Valve Material | 316 SS |
| Pressure Rating | 10,000 psi @ 200 °F |
| Flow Coefficient | 0.44 Cv |
| Process Connection Size | 1/2" |
| Measurement Minimum | 0 |
| Body Material | 316 SS |
| Seat Type | Hard Seat |
