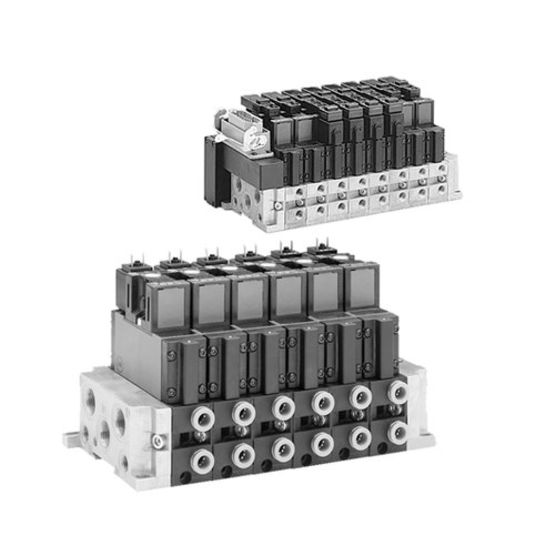

AVENTICS CD01-PA Series Std Valve System (ISO 15407-1), 26 mm, Internal Pilot, Manual Override w/o Detent

Manufacturer: Asco LP

Mfg Product Code: 5763520620

Weight: 2.0 lb(s)

Std Valve System (ISO 15407-1), 26 mm, Int Pilot, Man O/R w/o Detent

The AVENTICS Series CD01-PA is the flexible valve system according to ISO 15407-1. The Series offers pneumatic or electrical control, vacuum or pressure of up to 16 bar, dual-pressure application, pressure-zones, ATEX certification, and various accessories allow for a wide range of modularity.

Features

• Nominal flow Qn: 1010 l/min
• Switching principle: 5/2
• Compressed air connection output: base plate DIN ISO 15407-1
• Working pressure min.: 2 bar
• Working pressure max: 10 bar
• DC operating voltage: 24 V
• Voltage tolerance DC: -10% / +10%
• Manual override: without detent
• Electrical connection type: Plug
• Electrical connection size: EN 175301-803, form C
• Actuating control: Double Solenoid
• Sealing principle: Soft Seal
• Pilot: Internal
• Certificates: Free of substances that impair surface wetting in the coating process
• Standards: ISO 15407-1
• Pilot valve width: 26 mm
• Valve type: Spool valve, positive overlapping
• Connection type: Plate connection
• Compressed air connection input: base plate DIN ISO 15407-1
• Compressed air connection, exhaust: base plate DIN ISO 15407-1
• Compressed air connection pilot input: base plate DIN ISO 15407-1
• Compressed air connection pilot exhaust: base plate DIN ISO 15407-1
• Power consumption DC: 1.6 W
• Frame size: 26 mm
• Control pressure min.: 2 bar:
