AVENTICS 565 Series Directional Poppet Valve, G 1/2 BSP

Manufacturer: Asco LP

Mfg Product Code: 5652010000

Weight: 1.21 lb(s)

Directional Poppet Valve, G 1/2 BSP, 3/2 NO / NC

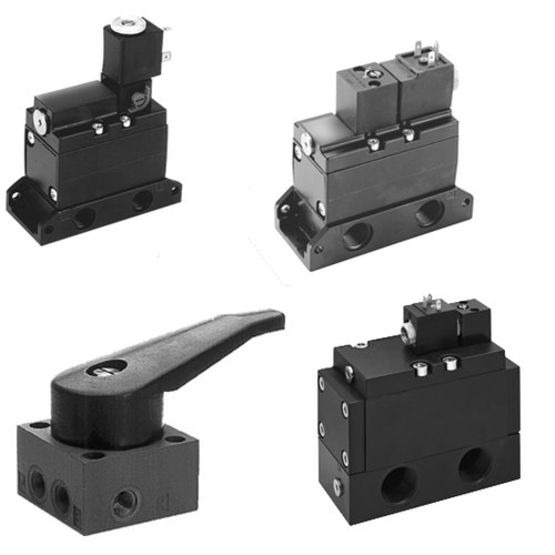

The AVENTICS Series 563/565/567 have an aluminium housing, and are suited for assembly on single or manifold subbases and offer flow rate performances of up to 13620 l/min with a working pressure of up to 30 bar.

Features

• Activation: Pneumatically
• Nominal flow Qn: 4240 l/min
• Compressed air connection output: G 1/2
• Connection type: Plate connection
• Working pressure min.: -1 bar
• Working pressure max: 10 bar
• Valve type: Poppet valve
• Control pressure min.: 3.5 bar
• Control pressure max.: 10 bar
• Min. ambient temperature: -20 °C
• Max. ambient temperature: 70 °C
• Min. medium temperature: -20 °C
• Max. medium temperature: 70 °C
• Medium: Compressed air
• Max. particle size: 5 µm
• Oil content of compressed air min.: 0 mg/m³
• Oil content of compressed air max.: 5 mg/m³
• Weight: 0.55 kg
• Housing material: Aluminum
• Seal material: Fluorocarbon caoutchouc, Acrylonitrile butadiene styrene:
