AVENTICS 56x Series Directional Poppet Valve, G 1/4 BSP, 110 VAC, 3/2 NO / NC, Manual Override w/Detent

Manufacturer: Asco LP

Mfg Product Code: 5633011320

Weight: 0.75 lb(s)

Directional Poppet Valve, G 1/4 BSP, 110 VAC, 3/2 NO / NC

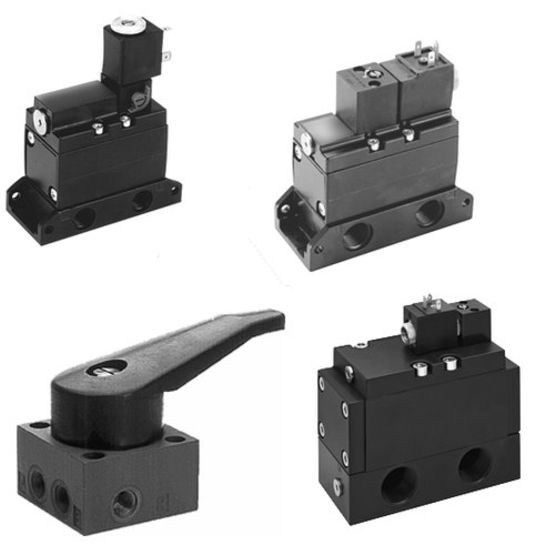

The AVENTICS Series 563/565/567 have an aluminium housing, and are suited for assembly on single or manifold subbases and offer flow rate performances of up to 13620 l/min with a working pressure of up to 30 bar.

Features

• Activation: Electrically
• Nominal flow Qn: 1350 l/min
• Switching principle: 3/2
• Version: NO/NC
• Working pressure min.: 3.5 bar
• Working pressure max: 10 bar
• Operational voltage AC at 60 Hz: 110 V
• Voltage tolerance AC 60 Hz: -10% / +10%
• Manual override: with detent
• Electrical connection type: Plug
• Electrical connection size: Form B, industry
• Pilot: External, Internal
• Valve type: Poppet valve
• Connection type: Plate connection
• Control pressure min.: 3.5 bar
• Control pressure max.: 10 bar
• Min. ambient temperature: -20 °C
• Max. ambient temperature: 50 °C
• Min. medium temperature: -20 °C
• Max. medium temperature: 50 °C
• Medium: Compressed air
• Max. particle size: 5 µm
• Oil content of compressed air min.: 0 mg/m³
• Oil content of compressed air max.: 5 mg/m³
• Compressed air connection input: G 1/4:
