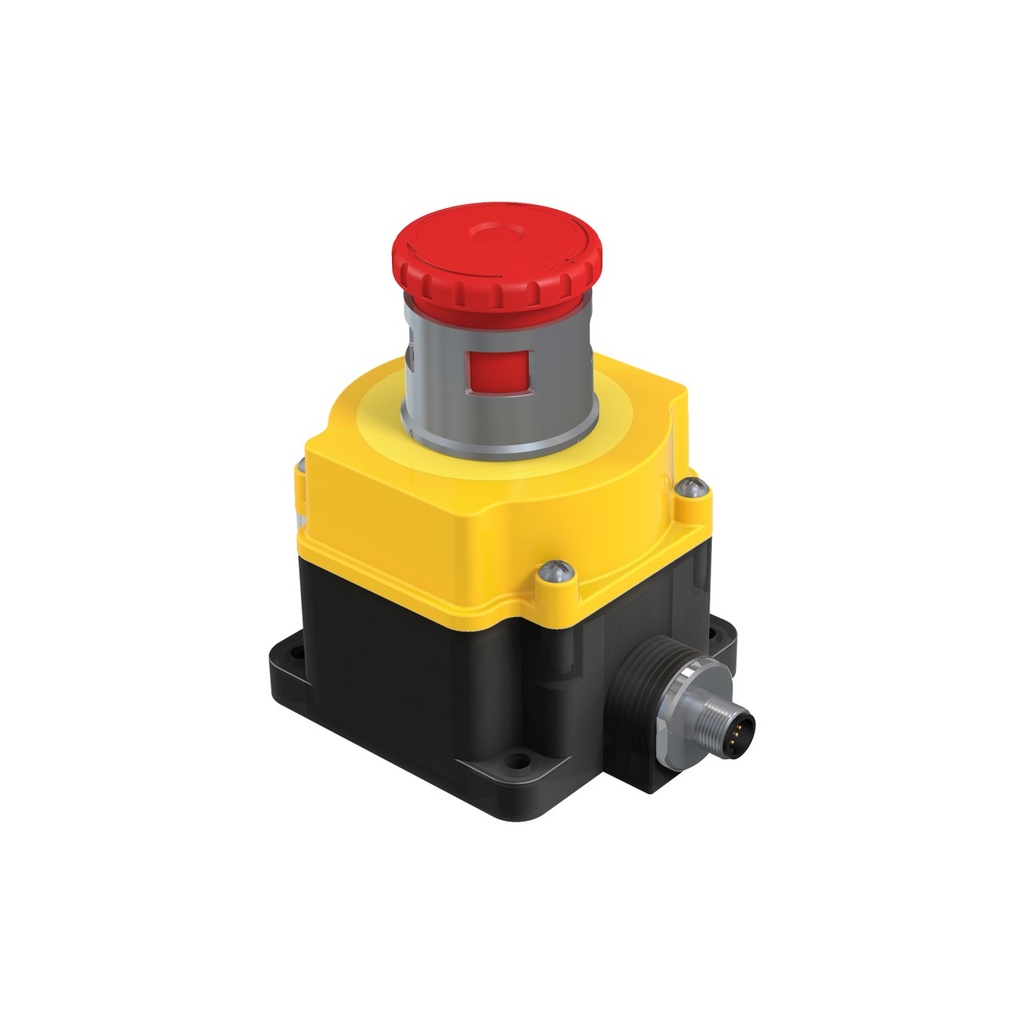

SSA-EB1 Flush-mount Emergency Stop Push Button: (SSA-EB1MP-02ED1)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 55849
Weight: 0.9 lb(s)
SSA-EB1 Flush-mount Emergency Stop Push Button:
Features:
- SSA-EB1 Flush-mount Emergency Stop Push Button:
- Lockable 44 mm Actuator
- IP65
- Contacts: 2NC
- Cable Gland 1/2-14NPT
SSA-EB1 Flush-mount Emergency Stop Push Button: (SSA-EB1MP-02ED1)
SSA-EB1 Flush-mount Emergency Stop Push Button:
Valve: Actuation:Twist-to-Release
Measurement Maximum:0
Min Operating Temperature:-25 °C
Max Operating Temperature:60 °C
Measurement Minimum:0
Ingress Protection:IP65
Housing Style:Base
Device Type:Push Button
Housing Material_:Polycarbonate
Physical Dimensions:113 x 110 x 81 mm
Feature: Quick Disconnect:No
Contact Quantity:2 NC
Actuator/Button Material:Thermoplastic
Contact Rating:2 A @ 24 VDC
Mounting Thread/Style:Flat
Feature: Illuminated:No
Feature: Lockable:Yes
Connection Type:Cable Gland 1/2-14NPT
Country of Origin:US
Button Diameter:44 mm
Feature: Button Shroud:No
Feature: In-Series Diagnostics:No
Feature: Actuation:Twist-to-Release
Specifications
| Valve Features | |
|---|---|
| Valve: Actuation | Twist-to-Release |
| Uncategorized | |
|---|---|
| Measurement Maximum | 0 |
| Min Operating Temperature | -25 °C |
| Max Operating Temperature | 60 °C |
| Measurement Minimum | 0 |
| Ingress Protection | IP65 |
| Housing Style | Base |
| Device Type | Push Button |
| Housing Material_ | Polycarbonate |
| Physical Dimensions | 113 x 110 x 81 mm |
| Feature: Quick Disconnect | No |
| Contact Quantity | 2 NC |
| Actuator/Button Material | Thermoplastic |
| Contact Rating | 2 A @ 24 VDC |
| Mounting Thread/Style | Flat |
| Feature: Illuminated | No |
| Feature: Lockable | Yes |
| Connection Type | Cable Gland 1/2-14NPT |
| Country of Origin | US |
| Button Diameter | 44 mm |
| Feature: Button Shroud | No |
| Feature: In-Series Diagnostics | No |
| Feature: Actuation | Twist-to-Release |
