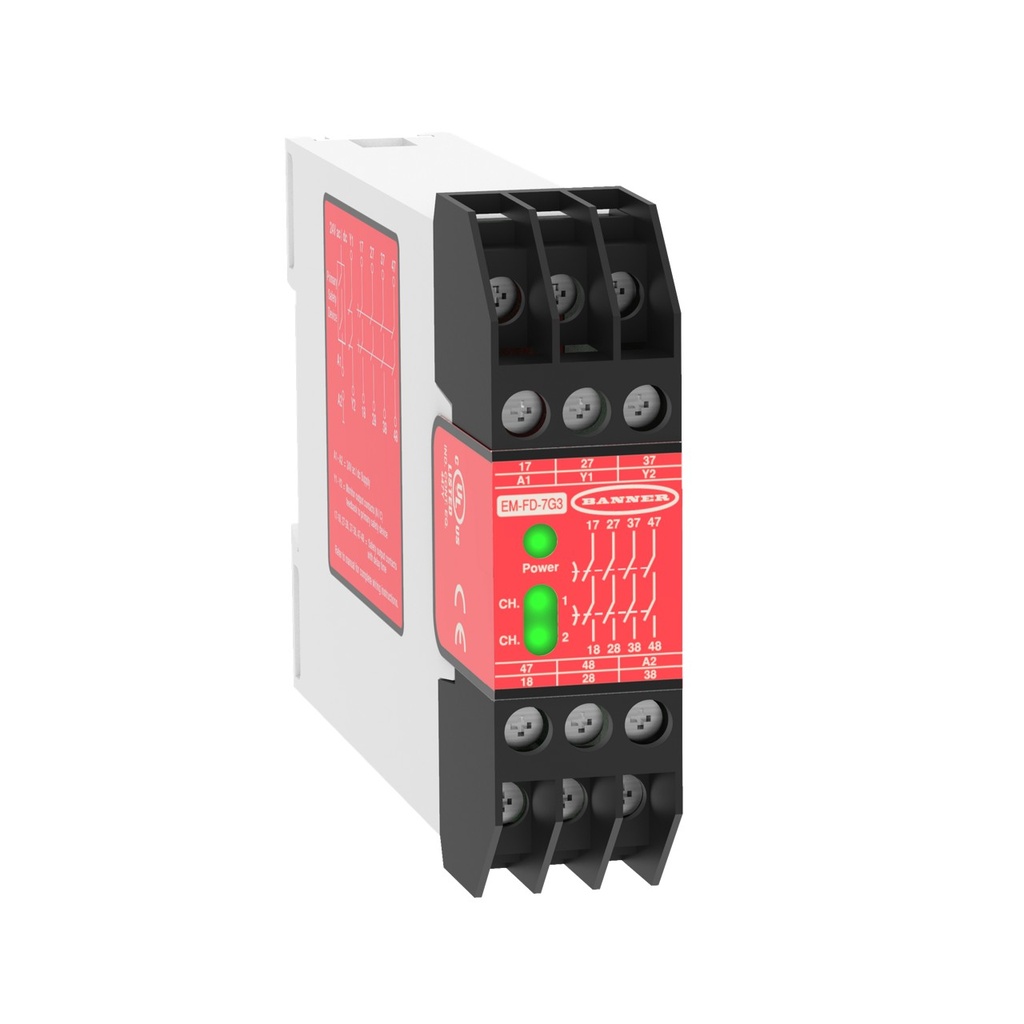

Safety Extension Module (EM-FD-7G3)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 55723
Weight: 0.52 lb(s)
Safety Extension Module
Features:
- Safety Extension Module
- Inputs: 1 = output of primary device
- 24 V ac/dc
- Safety Outputs: 4 NO, 6 Amp
- Aux Outputs: None
- 1.0 sec time delay
- Terminal Block: Fixed
- Width 22.5mm
Safety Extension Module (EM-FD-7G3)
Safety Extension Module
Measurement Maximum:0
Max Operating Temperature:50 °C
Power Consumption:0.1 A
Measurement Minimum:0
Ingress Protection:IP20
Device Type:Safety Relay
Feature: PCCC:No
Feature: Has EtherNet/IP:No
Feature: Modbus/TCP:No
Safe Output Rating:Relay - 6 A
Supply Voltage:24 VAC/dc +/- 10%
Safety Module Type:Relay Extension Module
Independently Controlled Safe Outputs:1
Relative Humidity:90% @ 50 °C
Vibration:10-55 Hz at 0.35 mm
Feature: LCD Display:No
Input Configuration:1 NC
Terminal Type:Screw
Number of Safe Inputs:1
Output Configuration:4 NO
Safety Mat:No
Recovery Time:30 ms
Response Time:35 ms
Number of Stored Colors:1
Safety Input - Single Channel:40-100 mA @ 13-27 VAC/dc
Country of Origin:US
Feature: Common Ethernet Protocol:No
Electrical Life:100,000 @ 1500 VA
Feature: E-Stops/Rope Pulls:No
Feature: Expandable:No
Feature: Removable Terminals:No
Feature: Gate Switch (NC/NC) Input:No
Feature: Gate Switch (NC/NO) Input:No
Feature: Gate Switch (OSSD) Input:No
Feature: Light Curtains/Scanner with EDM Input:No
Feature: Light Curtains/Scanner without EDM Input:No
Feature: Motor Speed:No
Feature: Muting:No
Feature: Safety Mat:No
Feature: In-Series Diagnostics:No
Mechanical Life:10 mil
Specifications
| Measurement Maximum | 0 |
| Max Operating Temperature | 50 °C |
| Power Consumption | 0.1 A |
| Measurement Minimum | 0 |
| Ingress Protection | IP20 |
| Device Type | Safety Relay |
| Feature: PCCC | No |
| Feature: Has EtherNet/IP | No |
| Feature: Modbus/TCP | No |
| Safe Output Rating | Relay - 6 A |
| Supply Voltage | 24 VAC/dc +/- 10% |
| Safety Module Type | Relay Extension Module |
| Independently Controlled Safe Outputs | 1 |
| Relative Humidity | 90% @ 50 °C |
| Vibration | 10-55 Hz at 0.35 mm |
| Feature: LCD Display | No |
| Input Configuration | 1 NC |
| Terminal Type | Screw |
| Number of Safe Inputs | 1 |
| Output Configuration | 4 NO |
| Safety Mat | No |
| Recovery Time | 30 ms |
| Response Time | 35 ms |
| Number of Stored Colors | 1 |
| Safety Input - Single Channel | 40-100 mA @ 13-27 VAC/dc |
| Country of Origin | US |
| Feature: Common Ethernet Protocol | No |
| Electrical Life | 100,000 @ 1500 VA |
| Feature: E-Stops/Rope Pulls | No |
| Feature: Expandable | No |
| Feature: Removable Terminals | No |
| Feature: Gate Switch (NC/NC) Input | No |
| Feature: Gate Switch (NC/NO) Input | No |
| Feature: Gate Switch (OSSD) Input | No |
| Feature: Light Curtains/Scanner with EDM Input | No |
| Feature: Light Curtains/Scanner without EDM Input | No |
| Feature: Motor Speed | No |
| Feature: Muting | No |
| Feature: Safety Mat | No |
| Feature: In-Series Diagnostics | No |
| Mechanical Life | 10 mil |
