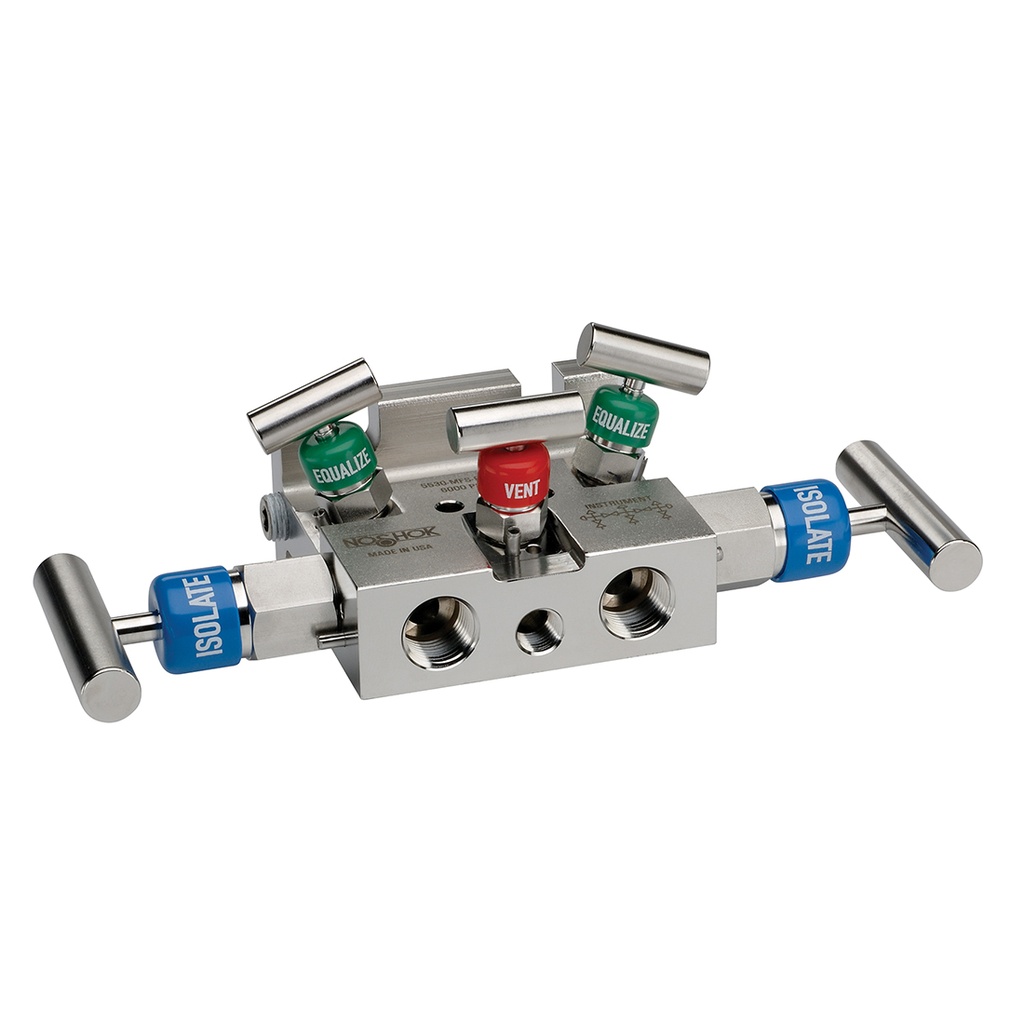

5530 Series 5-Valve Natural Gas Manifold Valve, Soft Seat, Flange x 1/2" NPT Female, 316 SS, Flare Pattern, 0.375" Orifice
Manufacturer: Noshok Inc
Mfg Product Code: 5530-MFS-FP
Weight: 7.5 lb(s)
On Hand: 0
Soft Seat, Flange x 1/2" NPT Female, 316 SS, Flare Pattern, 0.375" Orifice 5 Manifold Valve
- Designed for use with differential pressure transmitters incorporating two isolation valves, two equalizing valves and a vent valve required in natural gas applications
- Flare Pattern valve configuration provides maximum clearance for fingers during operation
- Soft tip valves feature a patented Acetal non-rotating soft tip stem, and a back-up metal-to-metal seal (U.S. Patent 6,820,857)
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
5530 Series 5-Valve Natural Gas Manifold Valve, Soft Seat, Flange x 1/2" NPT Female, 316 SS, Flare Pattern, 0.375" Orifice
Soft Seat, Flange x 1/2" NPT Female, 316 SS, Flare Pattern, 0.375" Orifice 5 Manifold Valve
Valve Type:Flange-Female
Valve Material:316 SS
Pressure Rating:6,000 psi @ 200 °F
Flow Coefficient:Cv 3.0
Body Material:316 SS
Process Type:Natural Gas Flow
Body Config:Flare Pattern
Seat Type:Soft Seat/Tip
Specifications
| Valve Type | Flange-Female |
| Valve Material | 316 SS |
| Pressure Rating | 6,000 psi @ 200 °F |
| Flow Coefficient | Cv 3.0 |
| Body Material | 316 SS |
| Process Type | Natural Gas Flow |
| Body Config | Flare Pattern |
| Seat Type | Soft Seat/Tip |
