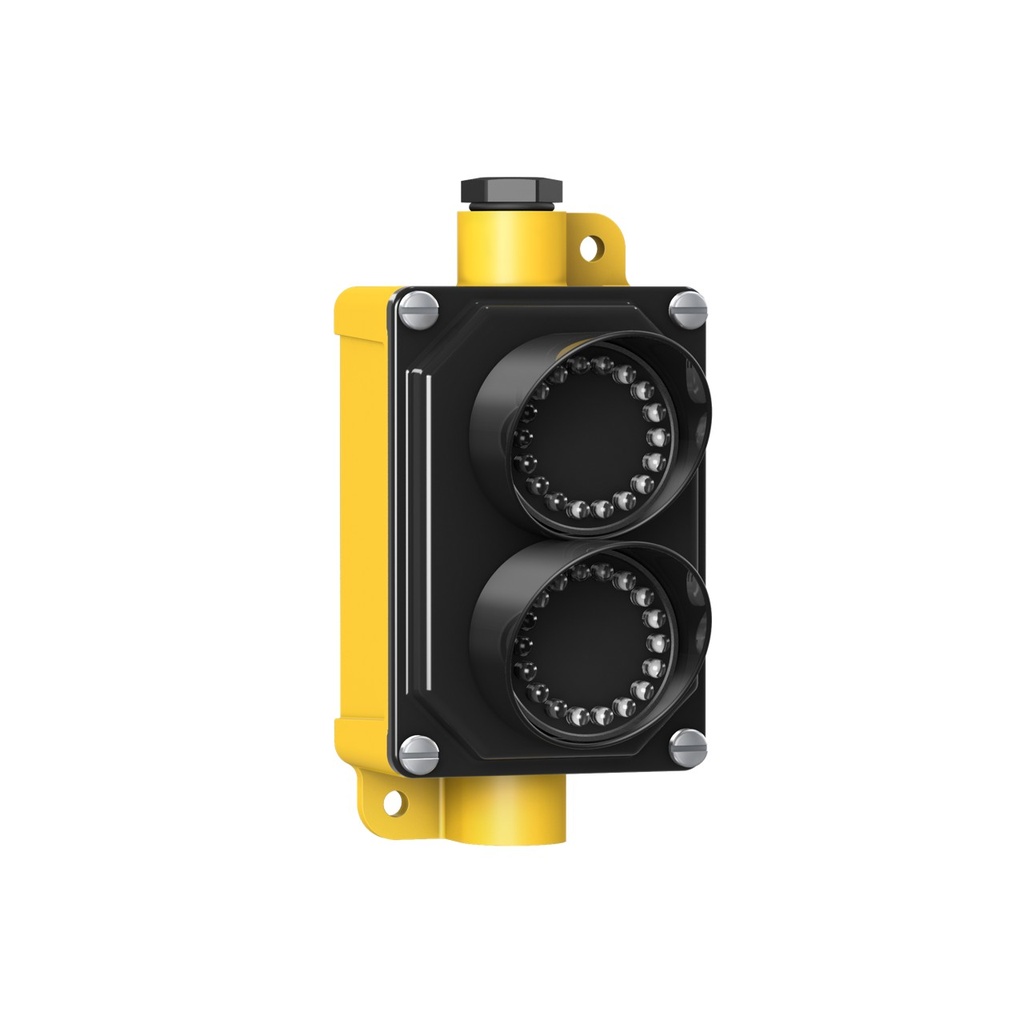

EZ-LIGHT Traffic Series: 2-Indicator Daylight Visible (SP250RGA120)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 53788
Weight: 1.3 lb(s)
Features:
- EZ-LIGHT Traffic Series: 2-Indicator Daylight Visible
- Voltage: 85-130 VAC
- Housing: Polycarbonate
- IP65
- Colors: Red Green
- Field Wireable
EZ-LIGHT Traffic Series: 2-Indicator Daylight Visible (SP250RGA120)
Power:AC or DC
Feature: Display:No
Feature: Display Lighting:No
Max Current Color:16 mA
Min Operating Temperature:-40 °C
Max Operating Temperature:50 °C
Power Source:VDC or VAC
Measurement Minimum:0
Ingress Protection:IP65, IP65
Housing Style:Flat Mount - Signal Light
Housing Material_:Polycarbonate
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Modbus RTU:No
Feature: Wireless:No
Feature: Indication:Yes
Supply Voltage:85-130 VAC/75-120 VDC
Color Option 2:Green
Feature: Quick Disconnect:No
Lumens Color 1:20
Color Technology:Standard LED
Feature: Audible:No
Color Option 1:Red
Color 1 - Wavelength/Color Temp/Coordinates:625 nm
Color Input Control:Individual (One wire/color, same number of colors as input wires)
Multi-Color Device:Simultaneous Colors On
Animation Option 1:Solid On
Number of Colors / Segments:2
Lumens Color 2:57
Color 2 - Wavelength/Color Temp/Coordinates:528 nm
Number of Input Pins/Conductors:3
Input Type:AC
Mounting Thread:No Thread
Max Input Response Time (ms):10 ms
Feature: Chemical Resistant:No
Indication Intensity:High Brightness & Daylight Visible
Connection Type:Terminal
Country of Origin:US
Feature: Traffic Light:Yes
Specifications
| Power | AC or DC |
| Feature: Display | No |
| Feature: Display Lighting | No |
| Max Current Color | 16 mA |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 50 °C |
| Power Source | VDC or VAC |
| Measurement Minimum | 0 |
| Ingress Protection | IP65, IP65 |
| Housing Style | Flat Mount - Signal Light |
| Housing Material_ | Polycarbonate |
| Feature: Hazardous Area | No |
| Feature: IO Link | No |
| Feature: Modbus RTU | No |
| Feature: Wireless | No |
| Feature: Indication | Yes |
| Supply Voltage | 85-130 VAC/75-120 VDC |
| Color Option 2 | Green |
| Feature: Quick Disconnect | No |
| Lumens Color 1 | 20 |
| Color Technology | Standard LED |
| Feature: Audible | No |
| Color Option 1 | Red |
| Color 1 - Wavelength/Color Temp/Coordinates | 625 nm |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Multi-Color Device | Simultaneous Colors On |
| Animation Option 1 | Solid On |
| Number of Colors / Segments | 2 |
| Lumens Color 2 | 57 |
| Color 2 - Wavelength/Color Temp/Coordinates | 528 nm |
| Number of Input Pins/Conductors | 3 |
| Input Type | AC |
| Mounting Thread | No Thread |
| Max Input Response Time (ms) | 10 ms |
| Feature: Chemical Resistant | No |
| Indication Intensity | High Brightness & Daylight Visible |
| Connection Type | Terminal |
| Country of Origin | US |
| Feature: Traffic Light | Yes |
