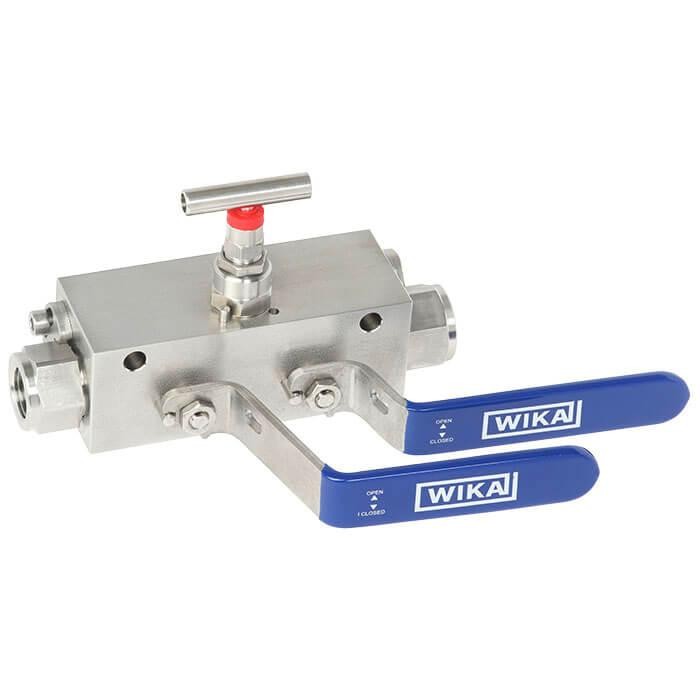

Representative photo. Please check item description for details.
Wika IBM3 Series Mono-Block, Double Block & Bleed Valve Manifold, 316/316L SS, 1/2" NPTF to 1/2" NPTF, 6000 psi, 0.394 in. (10 mm) Bore
Manufacturer: Wika Instrument Lp
Mfg Product Code: 52986492
Weight: 1.0 lb(s)
On Hand: 0
IBM3 DBB B/B/B TH/TH 1/2 NPT F/F 6000 PSI - 420 bar 316/316L
Applications
- Oil and gas industry, chemical and petrochemical industries, power plants, shipbuilding
- For gaseous and liquid aggressive media that are highly viscous or crystallising, also in aggressive environments
- Test benches and calibration equipment
- Control panels (e. g. wellheads, actuators), lubrication systems, dry gas seal systems
- Sampling systems for process analysis
Special features
- Increased safety with metal enclosed valve seats and double valve body seal
- High-quality machining guarantees smooth operation with low torque and low wear
- Leak-tested tightness in accordance with BS 6755 / ISO 5208 leakage rate A
- Customisable arrangement with ball and needle valves
- Customer-specific combination of valves and instruments (hook-up) on request
Features
- IBM3 DBB B/B/B TH/TH 1/2 NPT F/F 6000 PSI - 420 bar 316/316L
- Function: Double Block &
- Bleed
- Design type: Threaded/Threaded
- Version: Ball-Ball-Ball
- Connection size and type: 1/2" NPT female/female
- Pressure rating: 6000 PSI - 420 bar
- Material body: Stainless steel 316/316L - 1.4401/1.4404 - S31600/S31603
- Material packing: PEEK
- Vent connection: 1/2" NPT female with plug
- Mounting: with bracket holes
- Certificates/Approvals: NACE MR0175 Sour Gas Service &
- Inspection certificate 3.1, EN 10204, all wetted parts material
- Internal Bore: 10mm
Wika IBM3 Series Mono-Block, Double Block & Bleed Valve Manifold, 316/316L SS, 1/2" NPTF to 1/2" NPTF, 6000 psi, 0.394 in. (10 mm) Bore
IBM3 DBB B/B/B TH/TH 1/2 NPT F/F 6000 PSI - 420 bar 316/316L
Measurement Maximum:0
Process Connection Type:NPT-Female
Instrument Connection Size:1/2"
Instrument Connection Type:NPT-Female
Valve Material:316/316L SS
Pressure Rating:6000 psi
Bore Size:0.394 in. (10 mm)
Measurement Minimum:0
Packings:PEEK
Specifications
| Measurement Maximum | 0 |
| Process Connection Type | NPT-Female |
| Instrument Connection Size | 1/2" |
| Instrument Connection Type | NPT-Female |
| Valve Material | 316/316L SS |
| Pressure Rating | 6000 psi |
| Bore Size | 0.394 in. (10 mm) |
| Measurement Minimum | 0 |
| Packings | PEEK |
