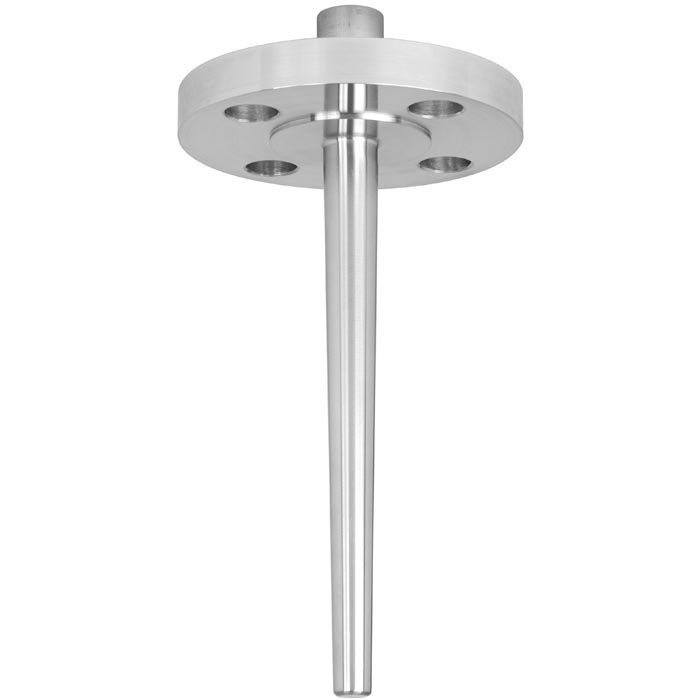

Wika TW10 Special, Flanged Thermowell, 3" 150lb, 500mm
Manufacturer: Wika Instrument Lp
Mfg Product Code: 52970429
Weight: 15.0 lb(s)
On Hand: 0
Features:
- Drawing # and Part # TBD
- TW10-F FPW 1/2 NPT female U=450 mm B=0.260 inch (6.6 mm) SS304/304L
- Flange: 3 inch 150 lbs RF
- Instrument connection [N]: 1/2 NPT female
- Bar Material: SS304/304L
- Flange Material: SS304/304L
- Thermowell Style: Stepped
- Head Length: 57 mm
- Insertion length [U]: 450 mm
- Bar diameter [Bd or F2]: 1.125 inch (28.6 mm)
- Root diameter [Q]: 19 mm
- Tip diameter [V or F3]: 12.7 mm
- Bore size [B or d1]: 0.260 inch (6.6 mm)
- Bore depth / stem length (US): 500 mm
- complete with Teflon coating
Wika TW10 Special, Flanged Thermowell, 3" 150lb, 500mm
Measurement Maximum:0
Process Connection Type:ASME 150#
Measurement Minimum:0
Specifications
| Measurement Maximum | 0 |
| Process Connection Type | ASME 150# |
| Measurement Minimum | 0 |
