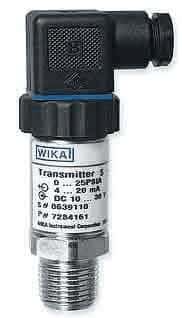

Wika S-10 INDUSTRIAL PRESSURE TRANSMITTER; 0-100" H2O; 4-20 MADC (OLD P/N:8341481)
Manufacturer: Wika Instrument Lp
Mfg Product Code: 52961002
Weight: 0.5 lb(s)
Model S-10
Specifications according to data sheet: PE 81.01
Power Supply: DC 10 (14) ... 30 V
Material of Wetted Parts: stainless steel
Case: stainless steel
Output signal: 4 ... 20 mA, 2-wire
Pressure Range: 0/100 InWC
Process Connection: 1/2 NPT
Accuracy: 0.5% of span
Electrical Connection: 4-pin L-plug DIN EN 175301-803, IP65
Permissible medium temperature: -30 ... +100 °C (-22 ... +212 °F)
Power supply: 10...30 V DC
pin assignment el. connection: UB=1, 0V=2
Wika S-10 INDUSTRIAL PRESSURE TRANSMITTER; 0-100" H2O; 4-20 MADC (OLD P/N:8341481)
Model S-10
Specifications according to data sheet: PE 81.01
Power Supply: DC 10 (14) ... 30 V
Material of Wetted Parts: stainless steel
Case: stainless steel
Output signal: 4 ... 20 mA, 2-wire
Pressure Range: 0/100 InWC
Process Connection: 1/2 NPT
Accuracy: 0.5% of span
Electrical Connection: 4-pin L-plug DIN EN 175301-803, IP65
Permissible medium temperature: -30 ... +100 °C (-22 ... +212 °F)
Power supply: 10...30 V DC
pin assignment el. connection: UB=1, 0V=2
Measurement Maximum:100.0
Measurement Minimum:0
Output Communication Protocol:4-20 mADC
Specifications
| Measurement Maximum | 100.0 |
| Measurement Minimum | 0 |
| Output Communication Protocol | 4-20 mADC |
