Wika CTH6500 Series Hand-Held Precision Thermometer

Manufacturer: Wika Instrument Lp

Mfg Product Code: 52930064

Weight: 5.0 lb(s)

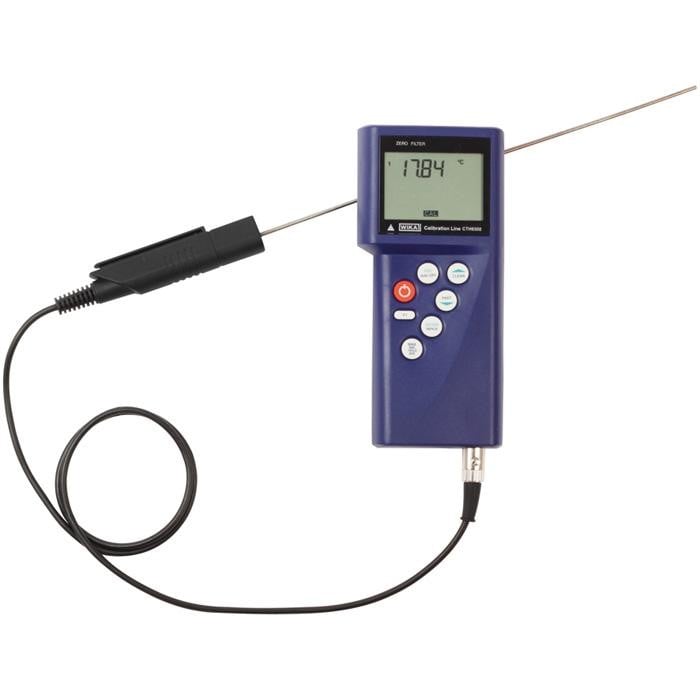

Hand-Held Thermometer Model CTH6500

Applications

• Calibration of thermometers
• Temperature measurement for the purposes of quality assurance
• Measurements in service and maintenance applications
• Long-term monitoring and online documentation

Special Features

• High accuracy of 0.03 K with Pt100
• One- and two-channel versions
• Connection possibilities for various probe types
• Intrinsically safe version Ex ib IIB T4 Gb

Features

• Hand-Held Thermometer Model CTH6500
• Operating range: Pt100:-200°C...600°C/TC:bis 1500°C/rF:0%...100% rF
• Accuracy: Pt100: 0,03 K from -50 °C to 200 °C, then 0,05 % of rdg.,TC: 0.2 K to 1 K,rF: 1.5%rF
• Display resolution: 0.01 °C up to 200 °C, then 0.1 °C
• Ambient temperature: 0 °C ... 40 °C
• Version: with 2 inputs
• Probe at input 1: immersion probe Pt100, d = 3 mm, l = 150 mm, range -200 °C ... +450 °C
• Case set: with, incl. accessories
• Calibration: Acceptance test certificate 3.1 in accordance with DIN EN 10204 for 1 probe (factory calibration)
• Test point for the calibration certificate: 0 °C/50 °C/100 °C
• Number of test points: 3 test points
• Digital Interface: USB
• Power Supply: DC 9 V battery
• .
• Specifications according to data sheet: CT 55.10
• Scope of delivery: 9V battery, operating instructions
• Special features: If calibration is ordered: Done at standard points; see also www.wika.com. Others on request.
