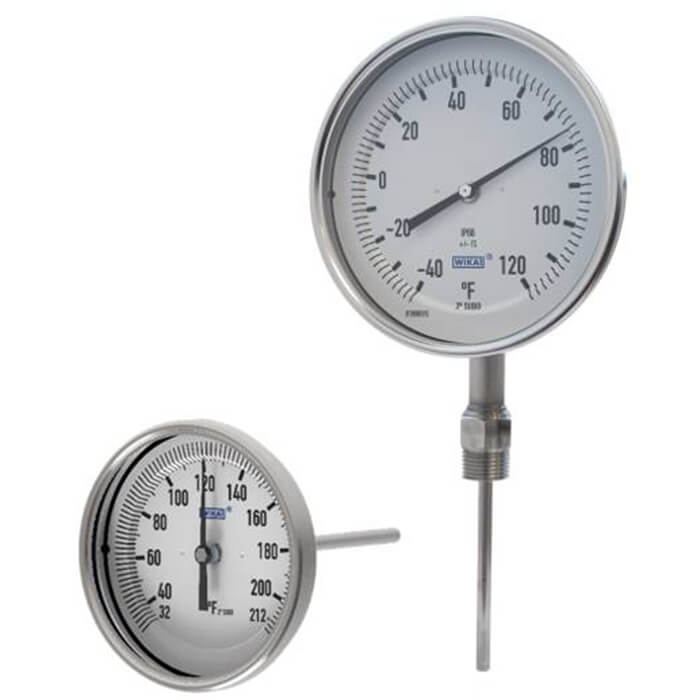

Representative photo. Please check item description for details.
Wika TG.51 Series Bimetal Thermometer, 0 to 250 °F
Manufacturer: Wika Instrument Lp
Mfg Product Code: 52914901
Weight: 2.0 lb(s)
On Hand: 0
TG51.3"/S back mount, 0...250°F , L1=4"x1/4"
Applications
- A wide range of applications including machine building,vessels, micro-brewing, boilers and water systems/piping
- Heating and air-conditioning technology (HVAC)
- Temperature measurement in harsh and aggressive environments which does not corrode 304 stainless steel
Special features
- Robust industrial design
- Hermetically sealed case
- NEMA 4X (IP66) weather protection
- All 304 stainless steel construction
Features
- Bimetal thermometer, Industrial grade according to ASME B40.200
- Model: TG51.3Z
- Specifications according to data sheet: TG51
- Accuracy Class: +/- 1% of Full Scale (ASME B40.3)
- Nominal size: 3"
- Connector position: back mount
- Design of Connection: standard, male thread
- Process Connection: 1/2" NPT
- Scale Range: 0 °F ... 250 °F
- Stem Diameter: 1/4"
- Insertion length L1: 4"
- Window: Flat Instrument Glass
- Ingress Protection: IP 66 / NEMA 4X
- Manufacturer logo: *WIKA®*
- serial number on dial: Serial number *...*
Wika TG.51 Series Bimetal Thermometer, 0 to 250 °F
TG51.3"/S back mount, 0...250°F , L1=4"x1/4"
Measurement Maximum:250.0
Stem Length:4 in (101.6)
Case Material:304 SS
Measurement Minimum:0
Ingress Protection:IP66
Stem Diameter:0.250 in (6.35 mm)
Specifications
| Measurement Maximum | 250.0 |
| Stem Length | 4 in (101.6) |
| Case Material | 304 SS |
| Measurement Minimum | 0 |
| Ingress Protection | IP66 |
| Stem Diameter | 0.250 in (6.35 mm) |
