Wika TR40 Cable RTD sensor (MI-cable)

Manufacturer: Wika Instrument Lp

Mfg Product Code: 52763760

Weight: 2.0 lb(s)

TR40 Cable RTD sensor (MI-cable)
Specifications according to data sheet: TE 60.40
Design: With lead wires
1 x Ni120 (3-WIRE)
Class B
Temperature range of selected class: -50...+250 °C
Probe design: Straight
Lead wire insulation: PTFE jacket, application range -60...+250 °C

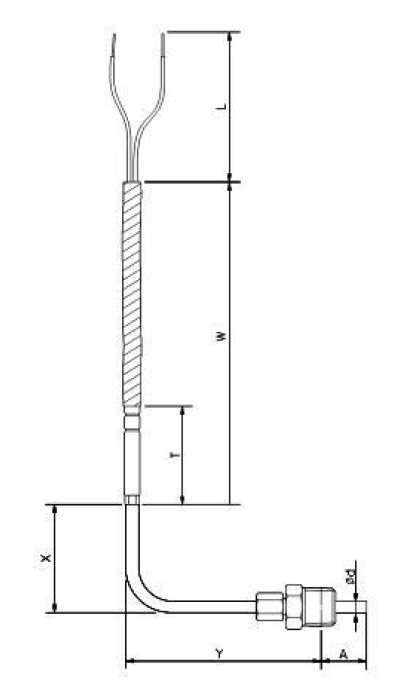

Cable length [W]: 22.0 inch
Cable ending: Stripped leads
Process connection: Without
Probe diameter: 1/4 inch / 0.250 inch (6.35 mm)
Probe material: Stainless steel 316L
A-dimension [A]: 6.0 inch
Stripped length [L]: 3.0 inch
Lower ambient temperature: -40 °C
Mechanical requirements: Standard probe tip (max. 6 g, peak to peak)
Ingress protection: IP54, IEC 60529, dust-protected/protection against splashing water

Features:

• * Specifications according to data sheet: TE 60.40
• * Design: With lead wires
• 1xPt100, 3-wire
• Class B, IEC 60751
• * Sensor working range: -50...+250°C, Sensor: Thin film
• * Probe design: 90 degree bend
• * Lead wire insulation: Armour over PTFE, application range -60...+250 °C
• * Cable length [W]: 39.0 inch
• * Cable ending: Stripped leads
• * Process connection: Compression fitting with stainless steel ferrule
• * Thread size: 1/4 NPT
• * Material process connection: Stainless steel 316
• * Probe diameter: 1/8 inch / 0.125 inch (3.17 mm)
• * Probe material: Stainless steel 316L
• * Insertion length [A]: 1.6 inch
• * Mechanical requirements: Standard probe tip (max. 6 g, peak to peak)
• * Dimension [X]: 1.5
• * Dimension [Y]: 3.7
• * Stripped length [L]: 6.0 inch
• * Ingress protection: IP54, IEC 60529, dust-protected/protection against splashing water
• * Lower ambient temperature: -40 °C
