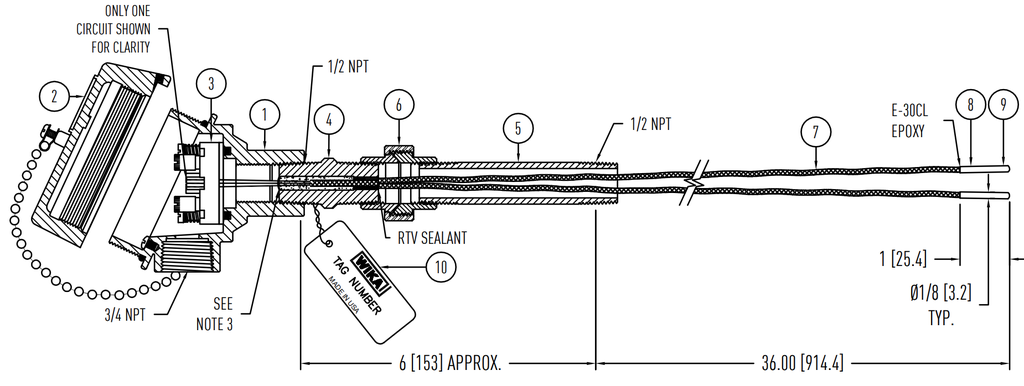

Wika TR10-1/4" DUAL 3-WIRE RTD ASSEMBLY w/ BUSHING-UNION-NIPPLE

Manufacturer: Wika Instrument Lp

Mfg Product Code: 52757048

Weight: 5.0 lb(s)

TR10-2 Internal spring loaded RTD assembly
Unit of Measure: Imperial (inch)
Connection head: 1/4000 F (Aluminum)
Terminal block/Transmitter: Crastin
Instrument x Conduit entry: 1/2 NPT x 3/4 NPT
N-Dimension: 6.0 inch (152 mm)
Neck extension: Fixed Bushing-Union-Nipple Stainless steel
Measuring element: Pt100, class A (IEC 60751)
Wiring configuration: Dual 3-wire
Sheath material: 28 AWG Teflon wire with SS overbraid (x2)
Temperature range: -30...+250 °C
Sensor diameter: 1/8 inch / 0.125 inch (3.17 mm)
A-Dimension: 36.00 inch

Features:

• TR10 Industrial RTD Assembly
• RTD assembly description : Industrial assembly configured
• Unit of measure: Metric (mm)
• Insert design: Spring loaded plate (removable insert)
• Connection head: KN4-A (Aluminium)
• Cable entry: 1/2 NPT
• Head instrument connection: 1/2 NPT
• Terminal block/transmitter: Ceramic terminal block
• Neck extension: Nipple
• Neck material: Stainless steel 316 (1.4401)
• Thread size: 1/2 NPT
• N-Dimension: 100 mm (approx. 4.0 inch)
• Measuring element: Pt100, class A (IEC 60751)
• Wiring configuration: Dual 3-Wire
• Temperature range: -100...+450 °C, wire wound
• Tip construction: General purpose
• Sensor diameter: 6.0 mm
• Sheath material: Stainless steel 316 / 316 L (1.4401 / 1.4435)
• A-Dimension: 305 mm
• Sheath construction: MI- Cable
