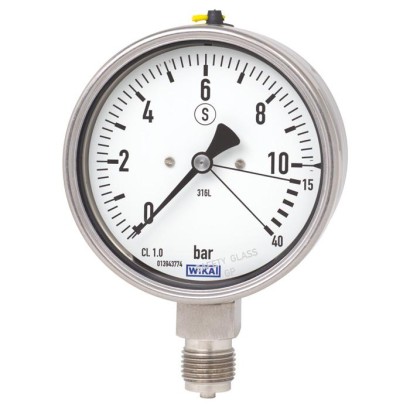

Wika Series Dry Pressure Gauge, 4" Dial, 0 to 150 psi (580 psi OP), 1/4 NPT SS Lower Mount
Manufacturer: Wika Instrument Lp
Mfg Product Code: 52469000
Weight: 1.0 lb(s)
Engineered for resilience, the Wika 23x.36 Series pressure gauge excels in demanding environments. Its robust stainless steel construction and advanced safety features make it ideal for oil and gas, chemical, and power industries. Designed to withstand occasional overpressure up to four times its full scale value, this gauge provides exceptional protection.
The gauge's solid baffle wall and non-splintering window safeguard operators from potential hazards. For applications plagued by vibrations, the optional liquid-filled model ensures optimal performance. With a range of 0 to 0.6 to 0 to 40 bar (0 to 10 to 0 to 600 psi), this gauge offers versatility for various applications. Trust Branom to provide this top-tier pressure gauge.
Features
- Bourdon Tube Pressure Gauges, Safety Pattern Series
- EN 837-1, High Overpressure Safety
- Model: 232.36
- Specifications according to data sheet: PM 02.15
- Measuring System: Stainless Steel
- Case: Stainless Steel with Solid Baffle Wall and Blowout Back
- Bezel ring: cam ring (bayonet type), stainless steel
- Window: laminated safety glass
- Accuracy Class: class 1.0
- Case filling: without
- Nominal size: 4"
- Unit of outer Scale: psi / -inHg
- Measuring range: gauge pressure range
- Scale range: 0/150 psi overpressure safe to 580 psi
- Process Connection: 1/4 NPT
- Connector location: lower mount
- Ignition protection type: without
- Zone: without
- Pointer: standard pointer
- Manufacturer logo: WIKA
- Ingress Protection: IP 65
- Window: laminated safety glass
- Accuracy Class: class 1.0
- Pressure Gauge Standard: International (standard Europe)
- with Serial number
Wika Series Dry Pressure Gauge, 4" Dial, 0 to 150 psi (580 psi OP), 1/4 NPT SS Lower Mount
Gauge: Brand:Wika
Gauge: Model:232.36
Gauge: Dial Size:4 in (100 mm)
Gauge: Scale Range:≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar)
Gauge: Pressure Type:Gauge Pressure
Gauge: Measuring Principle:Bourdon Tube
Gauge: Fill Type:Dry
Gauge: Product Unit of Measure:psi / inHg
Gauge: Process Connection Size:1/4 NPT
Gauge: Process Connection Location:Lower Mount
Gauge: Wetted Material:Stainless Steel
Gauge: Accuracy:±1%
Gauge: Ingress Protection:IP 65
Gauge: Case Material:Stainless Steel
Specifications
| Gauge: Brand | Wika |
| Gauge: Model | 232.36 |
| Gauge: Dial Size | 4 in (100 mm) |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Measuring Principle | Bourdon Tube |
| Gauge: Fill Type | Dry |
| Gauge: Product Unit of Measure | psi / inHg |
| Gauge: Process Connection Size | 1/4 NPT |
| Gauge: Process Connection Location | Lower Mount |
| Gauge: Wetted Material | Stainless Steel |
| Gauge: Accuracy | ±1% |
| Gauge: Ingress Protection | IP 65 |
| Gauge: Case Material | Stainless Steel |
