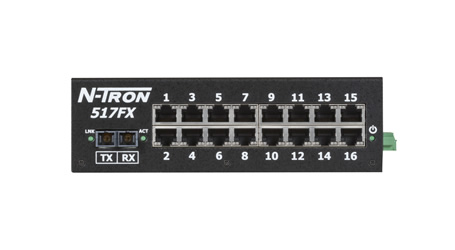

500-A Series, 17-Port, N-Tron 517FX-A Process Control Ethernet Switch, SC 2km
Manufacturer: Red Lion Controls, Inc.
Mfg Product Code: 517FX-A-SC
Weight: 3.0 lb(s)
Red Lion's N-Tron® series 500-A industrial Ethernet switches offer up to 26 ports of Fast Ethernet connectivity and are specifically designed to meet the requirements of mission critical PLC and process control applications. Designed for plug-and-play performance in EtherNet/IP, Modbus TCP and PROFINET applications, the 500-A monitored switch line provides best-in-class reliable connectivity, N-View™ monitoring technology, IGMP snooping, VLAN, QoS, port control, trunking and port mirroring.
Features
- 17 Port Industrial Ethernet Switch
- Sixteen 10/100 BaseTX RJ-45 Ports
- One 100BaseFX Multimode Fiber Ports with SC Connectors
- IEEE 802.3 Compliance
- -40° to 85° C Operating Temperature
- Autosensing 10/100BaseTX, Duplex, and MDIX
- ESD and Surge Protection on all Built-in Ports
- Up to 2.6 Gb/s Throughput
- Redundant Power Inputs (10-30 VDC)
- Rugged Industrial DIN-Rail Enclosure
- Advanced Management Features:
- IGMP Auto Configuration
- VLAN
- QoS
- Trunking or Link aggregation
- Port Mirroring
- N-View™ Remote Monitoring Technology
500-A Series, 17-Port, N-Tron 517FX-A Process Control Ethernet Switch, SC 2km
Brand_Name:Red Lion
Manufacturer Product Family:500-A Series Process Control Switches
Min Operating Temperature:-40 °C
Max Operating Temperature:85 °C
Mounting Options:DIN Rail
Case Material:Metal
Input Voltage:10 to 30 VDC
Ingress Protection:IP20
Fiber Type:Multimode
Ethernet Connector Type:SC
No. Ports:17
10/100 Ports:16
100 Fiber Ports:1
Distance Rating:2 km
Specifications
| Brand_Name | Red Lion |
| Manufacturer Product Family | 500-A Series Process Control Switches |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 85 °C |
| Mounting Options | DIN Rail |
| Case Material | Metal |
| Input Voltage | 10 to 30 VDC |
| Ingress Protection | IP20 |
| Fiber Type | Multimode |
| Ethernet Connector Type | SC |
| No. Ports | 17 |
| 10/100 Ports | 16 |
| 100 Fiber Ports | 1 |
| Distance Rating | 2 km |
