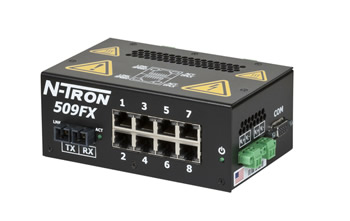

500-A Series, 9-Port, N-Tron 509FX-A Process Control Ethernet Switch, SC 80km
Manufacturer: Red Lion Controls, Inc.
Mfg Product Code: 509FXE-A-SC-80
Weight: 2.7 lb(s)
Red Lion's N-Tron® series 500-A industrial Ethernet switches offer up to 26 ports of Fast Ethernet connectivity and are specifically designed to meet the requirements of mission critical PLC and process control applications. Designed for plug-and-play performance in EtherNet/IP, Modbus TCP and PROFINET applications, the 500-A monitored switch line provides best-in-class reliable connectivity, N-View™ monitoring technology, IGMP snooping, VLAN, QoS, port control, trunking and port mirroring.
Features
- 9 Port Industrial Ethernet Switch
- Eight 10/100BaseTX RJ-45 Ports
- One 100BaseFX Singlemode 80km Fiber Ports with SC Connectors
- IEEE 802.3 Compliance
- -40° to 85° C Operating Temperature
- Autosensing 10/100BaseTX, Duplex, and MDIX
- ESD and Surge Protection on all Built-in Ports
- Up to 2.6 Gb/s Throughput
- Redundant Power Inputs (10-30 VDC)
- Bi-Color LED's For Link, Speed, Activity & Duplex Status
- Rugged Industrial DIN-Rail Enclosure
- Advanced Management Firmware:
- IGMP Auto Configuration
- VLAN
- QoS
- Trunking or Link aggregation
- Port Mirroring
- N-View™ Remote Monitoring Technology
500-A Series, 9-Port, N-Tron 509FX-A Process Control Ethernet Switch, SC 80km
Brand_Name:Red Lion
Manufacturer Product Family:500-A Series Process Control Switches
Min Operating Temperature:-40 °C
Max Operating Temperature:85 °C
Mounting Options:DIN Rail
Case Material:Metal
Input Voltage:10 to 30 VDC
Ingress Protection:IP20
Fiber Type:Singlemode
Ethernet Connector Type:SC
No. Ports:9
10/100 Ports:8
100 Fiber Ports:1
Distance Rating:80 km
Specifications
| Brand_Name | Red Lion |
| Manufacturer Product Family | 500-A Series Process Control Switches |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 85 °C |
| Mounting Options | DIN Rail |
| Case Material | Metal |
| Input Voltage | 10 to 30 VDC |
| Ingress Protection | IP20 |
| Fiber Type | Singlemode |
| Ethernet Connector Type | SC |
| No. Ports | 9 |
| 10/100 Ports | 8 |
| 100 Fiber Ports | 1 |
| Distance Rating | 80 km |
