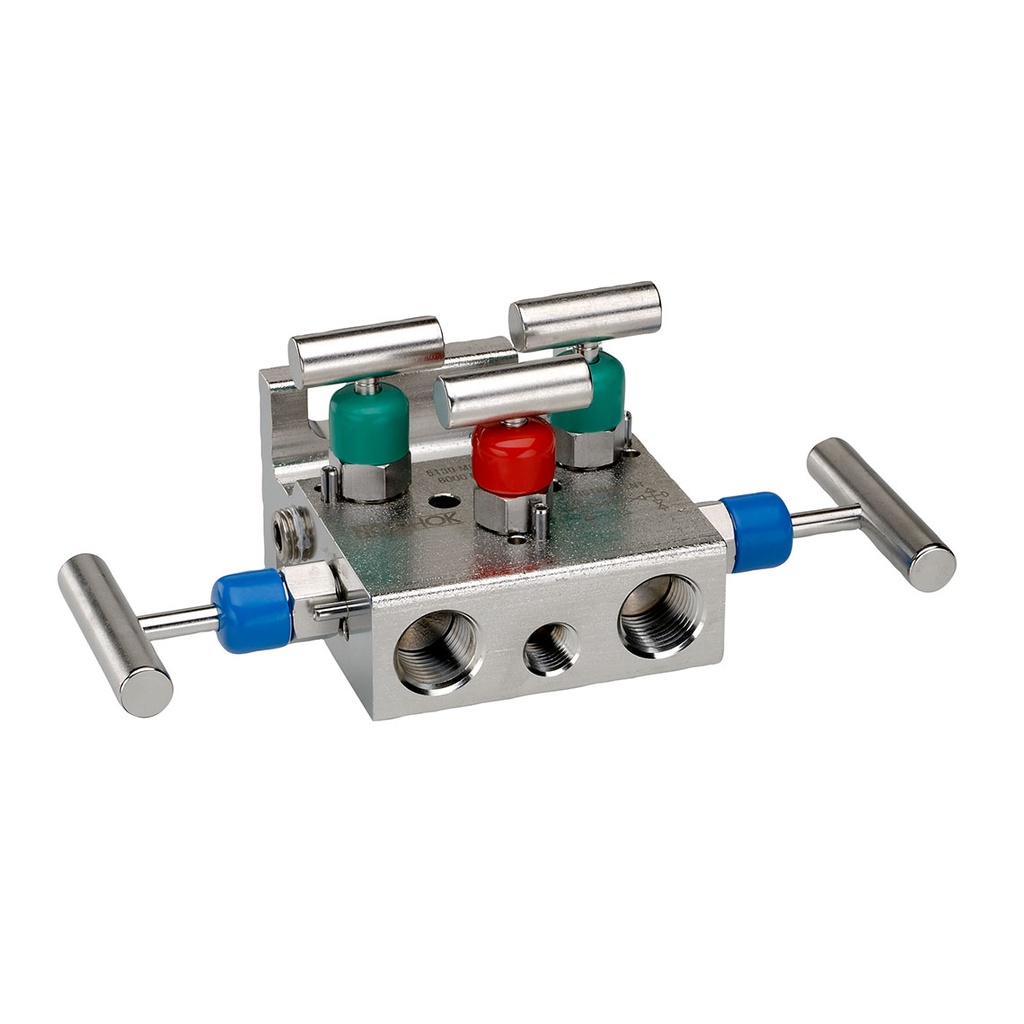

5030 Series 5-Valve Natural Gas Manifold Valve, Hard Seat, Flange x 1/2" NPT Female, 316 SS, 0.187" Orifice
Manufacturer: Noshok Inc
Mfg Product Code: 5030-MFS
Weight: 6.0 lb(s)
On Hand: 0
Hard Seat, Flange x 1/2" NPT Female, 316 SS, 0.187" Orifice 5 Manifold Valve
- Designed for use with differential pressure transmitters incorporating two isolation valves, two equalizing valves and a vent valve required in natural gas applications
- Flare Pattern valve configuration provides maximum clearance for fingers during operation
- Soft tip valves feature a patented Acetal non-rotating soft tip stem, and a back-up metal-to-metal seal (U.S. Patent 6,820,857)
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
5030 Series 5-Valve Natural Gas Manifold Valve, Hard Seat, Flange x 1/2" NPT Female, 316 SS, 0.187" Orifice
Hard Seat, Flange x 1/2" NPT Female, 316 SS, 0.187" Orifice 5 Manifold Valve
Orifice Size:0.187 in
Valve Type:Flange-Female
Valve Material:316 SS
Pressure Rating:10,000 psi @ 200 °F
Flow Coefficient:Cv 0.44
Process Connection Size:1/2"
Body Material:316 SS
Process Type:Natural Gas Flow
Seat Type:Hard Seat
Specifications
| Orifice Size | 0.187 in |
| Valve Type | Flange-Female |
| Valve Material | 316 SS |
| Pressure Rating | 10,000 psi @ 200 °F |
| Flow Coefficient | Cv 0.44 |
| Process Connection Size | 1/2" |
| Body Material | 316 SS |
| Process Type | Natural Gas Flow |
| Seat Type | Hard Seat |
