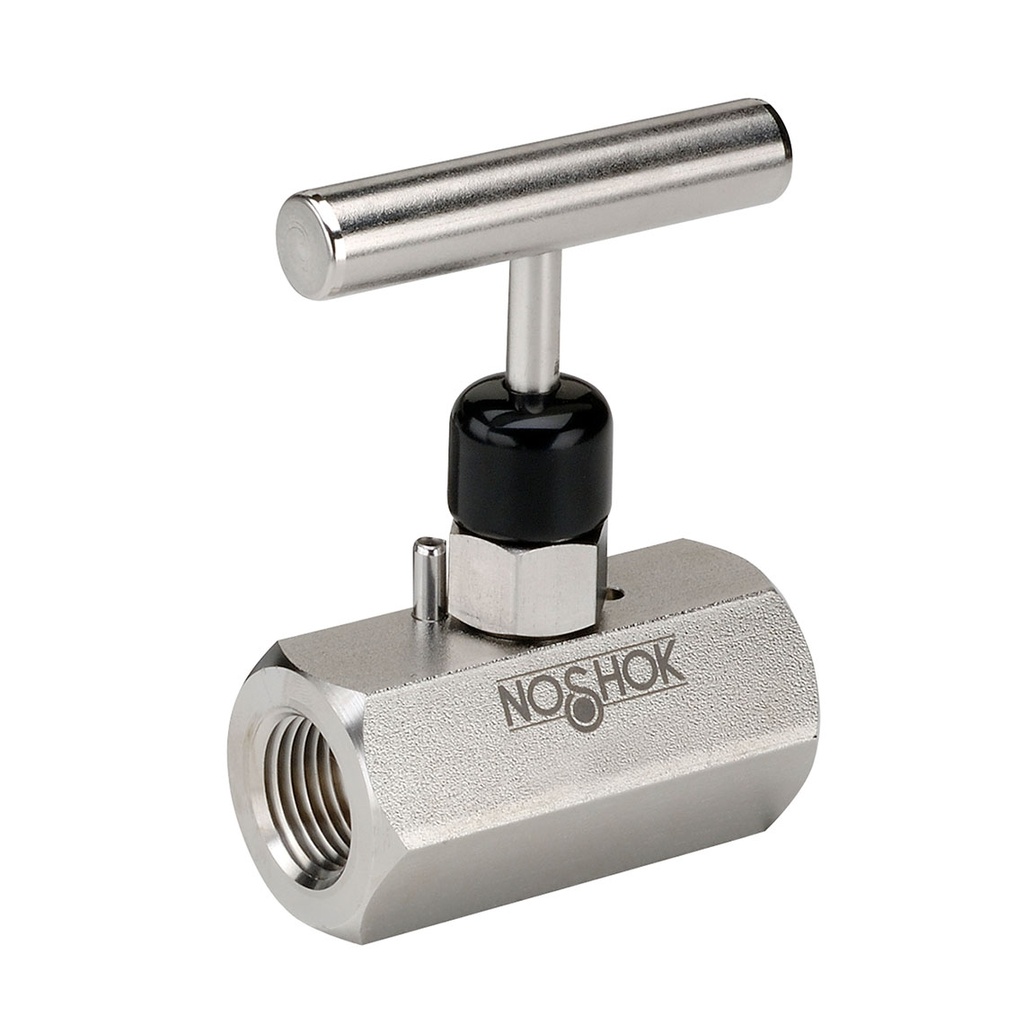

500 Series Standard, Soft Seat Needle Valve, 1/4" NPT, Female x Female, 316 SS, Panel Mount, 0.187" Orifice
Manufacturer: Noshok Inc
Mfg Product Code: 502-FFS-PM2
Weight: 1.3 lb(s)
On Hand: 0
1/4" NPT, Female x Female, 316 SS, Panel Mount, Soft Seat, 0.187" Orifice Needle Valve
- 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
- Replaceable Acetal seat and straight through porting for bidirectional, high capacity flow and easy roddable cleaning
- Blow-out proof stem provides a secondary stem seal in the full open position
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
500 Series Standard, Soft Seat Needle Valve, 1/4" NPT, Female x Female, 316 SS, Panel Mount, 0.187" Orifice
1/4" NPT, Female x Female, 316 SS, Panel Mount, Soft Seat, 0.187" Orifice Needle Valve
Orifice Size:0.187"
Process Connection Type:NPT-Female/NPT-Female
Valve Type:Female-Female
Valve Material:316 SS
Pressure Rating:6,000 psi @ 200 °F
Flow Coefficient:0.76 Cv
Mounting Options:Panel Mount (2 nuts)
Process Connection Size:1/4"
Body Material:316 SS
Specifications
| Orifice Size | 0.187" |
| Process Connection Type | NPT-Female/NPT-Female |
| Valve Type | Female-Female |
| Valve Material | 316 SS |
| Pressure Rating | 6,000 psi @ 200 °F |
| Flow Coefficient | 0.76 Cv |
| Mounting Options | Panel Mount (2 nuts) |
| Process Connection Size | 1/4" |
| Body Material | 316 SS |
