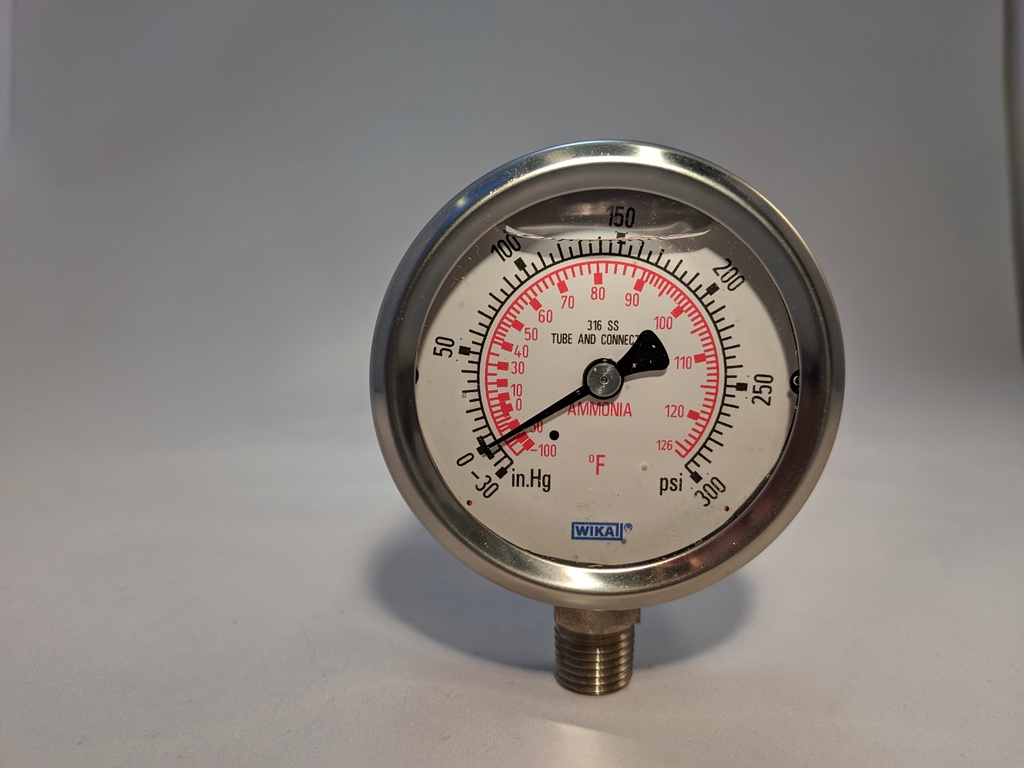

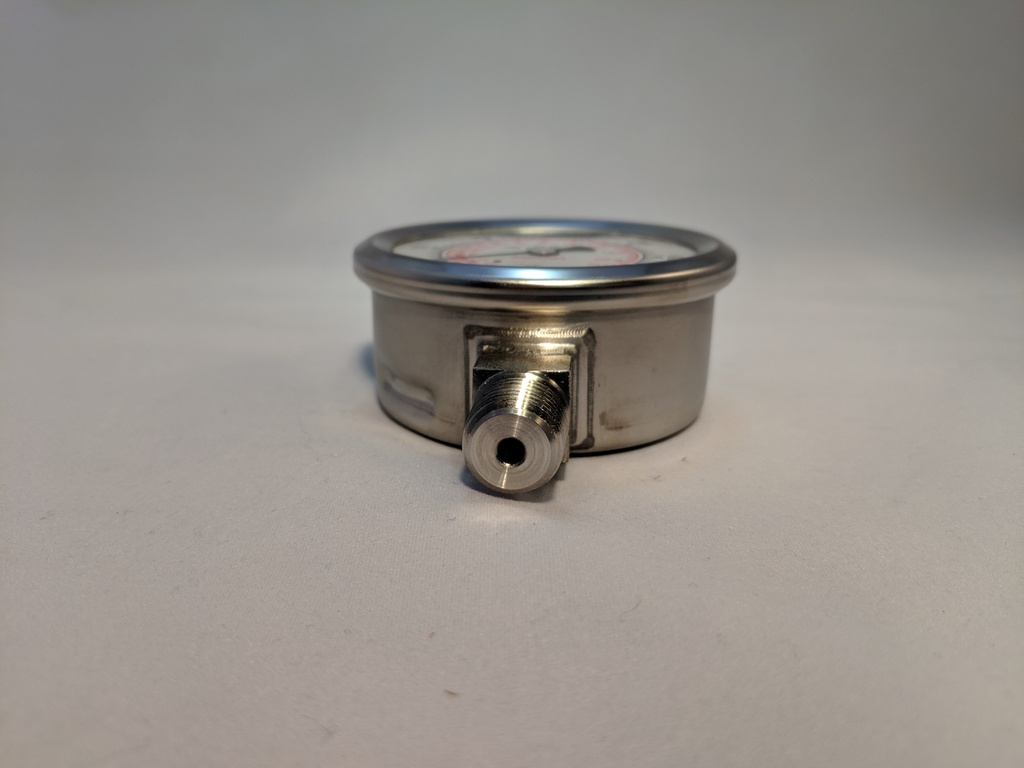

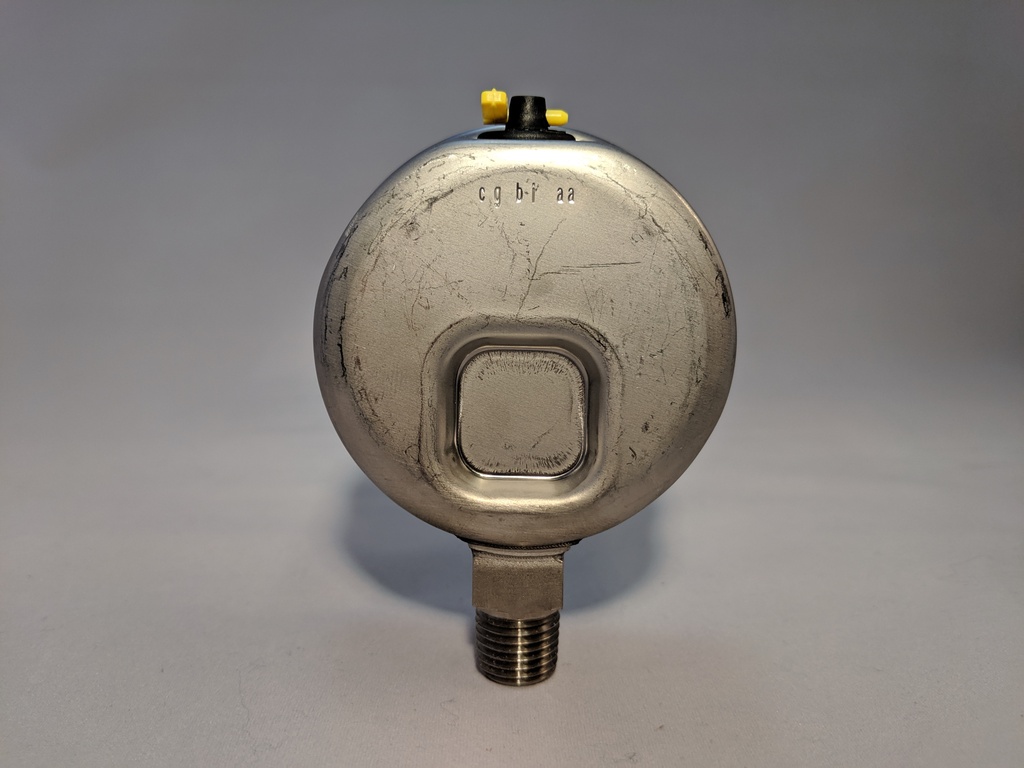

Wika 233.53 Series Glycerine Filled Pressure Gauge, 2.5" Dial, -30 inHg to 300 psi (°F), 1/4 NPT SS Lower Mount
Manufacturer: Wika Instrument Lp
Mfg Product Code: 50129538
Weight: 0.44 lb(s)
233.53AM 2.5 -30INHG/300PSI/F 1/4 L
This high-quality Bourdon tube pressure gauge has been designed especially for the process industry.
Applications
- For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments
- Chemical and petrochemical industries, oil and gas industry, power engineering and also water and wastewater technology
- Machine building and general plant construction
Features
- 233.53AM 2.5 -30INHG/300PSI/F 1/4 L
- 233.53 2.5" -30INHG/300PSI/DEG F 1/4"NPT LM;
- AMMONIA 126F-INNER SCALE IN RED PMS032;
- DIAL PER WN13.246, *R*, *WIKA*; *AMMONIA* BELOW DIAL RIVETS IN RED PMS 032;
- *316 SS TUBE AND CONNECTION* ABOVE POINTER AXIS IN BLACK;
- *F* IN RED PMS 032;
- WETTED PARTS STAINLESS STEEL;
- CASE SS 304 WITH VENT PLUG;
- CRIMP RING STAINLESS STEEL 3D;
- GLYCERINE LIQUID FILLED;
- MOVEMENT STAINLESS STEEL
- POINTER ALUMINUM BLACK;
- DIAL ALUMINUM, WHITE;
- WINDOW POLYCARBONATE;
- ACCURACY +/- 2/1/2% OF SPAN;
- SINGLE PACKAGING;
Wika 233.53 Series Glycerine Filled Pressure Gauge, 2.5" Dial, -30 inHg to 300 psi (°F), 1/4 NPT SS Lower Mount
233.53AM 2.5 -30INHG/300PSI/F 1/4 L
Gauge: Brand:Wika
Gauge: Model:233.53
Gauge: Dial Size:2-1/2 in (63 mm & 68 mm)
Gauge: Scale Range:≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar)
Gauge: Pressure Type:Gauge Pressure
Gauge: Measuring Principle:Bourdon Tube
Gauge: Fill Type:Liquid Filled / Fillable
Gauge: Product Unit of Measure:psi / inHg
Gauge: 2nd Scale:°F
Gauge: Process Connection Size:1/4 NPT
Gauge: Process Connection Location:Lower Mount
Gauge: Wetted Material:Stainless Steel
Gauge: Accuracy:±1%
Gauge: Case Material:Stainless Steel
Specifications
| Gauge: Brand | Wika |
| Gauge: Model | 233.53 |
| Gauge: Dial Size | 2-1/2 in (63 mm & 68 mm) |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Measuring Principle | Bourdon Tube |
| Gauge: Fill Type | Liquid Filled / Fillable |
| Gauge: Product Unit of Measure | psi / inHg |
| Gauge: 2nd Scale | °F |
| Gauge: Process Connection Size | 1/4 NPT |
| Gauge: Process Connection Location | Lower Mount |
| Gauge: Wetted Material | Stainless Steel |
| Gauge: Accuracy | ±1% |
| Gauge: Case Material | Stainless Steel |
