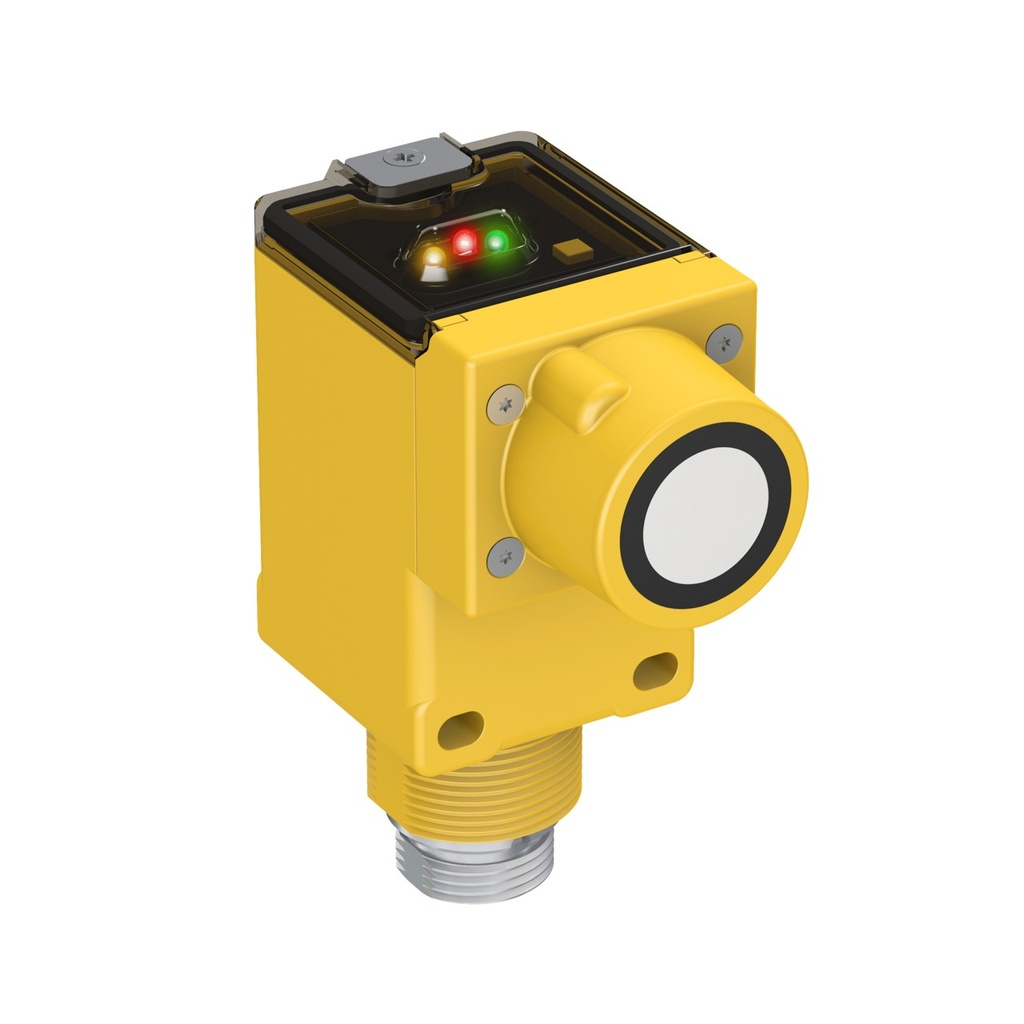

Analog Q45U Series: Proximity Mode (Q45ULIU64BCRQ)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 47557
Weight: 0.66 lb(s)
Analog Q45U Series: Proximity Mode
Features:
- Analog Q45U Series: Proximity Mode
- Range: 250 mm
- 3 m
- Input: 15-24V dc
- Output: Selectable 0-10V dc or 4-20mA sourcing
- MINI-Style Quick-Disconnect Connector
Analog Q45U Series: Proximity Mode (Q45ULIU64BCRQ)
Analog Q45U Series: Proximity Mode
Brand_Name:Banner
Analog Current Output Rating:1 to 500 Ω impedance
Power/Current Consumption (exclusive of load):100 mA
Power Supply:15-24 VDC
Temperature Effect (mm/°C):0.05% of sensing distance/°C
Measurement Minimum:0
Ingress Protection:IP67
Sensing Beam:Ultrasonic
Housing Style:Rectangular
Max Sensing Distance:3000 mm
Sensing Mode (Detailed):Time of Flight
Sensing Mode (General):Proximity
Device Type:Sensor
Feature: RS-232:No
Feature: RS-485:No
RS-422:No
Feature: IO Link:No
Feature: Wireless:No
Feature: Quick Disconnect:Yes
Quick Disconnect Type:7/8 in. (Mini)
Max Op. Relative NC Humidity:100%
Feature: Chemical Resistant:No
Number of Pins:5
Adjustments:Teach Button; DIP Switches
Feature: Timing (Hold/Delay):No
Min Response Time:80 ms
Vibration:MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Feature: Ultrasonic:Yes
Mechanical Shock:IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Min Sensing Distance:250 mm
Feature: Clear Object Detection:Yes
Min Window Size:25 mm
Max Measurement Range:1-20 m
Output Protection:Protected against false pulse on power-up and continuous overload or short-circuit of outputs
SSI:No
Profibus:No
Feature: Remote Teach:Yes
Analog Voltage Output Rating:10mA Max
Supply Protection Circuitry:Protected against reverse polarity and transient overvoltages
Connection:Integral QD
Country of Origin:US
NEMA / UL:NEMA 6P, NEMA 6P
Feature: Common Ethernet Protocol:No
Feature: PC Configurable:No
Indicator Type:LED
Warm-Up Time:15 min
Ultrasonic Frequency:128 kHz
Analog Linearity:1.0% FS
Specifications
| Brand_Name | Banner |
| Analog Current Output Rating | 1 to 500 Ω impedance |
| Power/Current Consumption (exclusive of load) | 100 mA |
| Power Supply | 15-24 VDC |
| Temperature Effect (mm/°C) | 0.05% of sensing distance/°C |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
| Sensing Beam | Ultrasonic |
| Housing Style | Rectangular |
| Max Sensing Distance | 3000 mm |
| Sensing Mode (Detailed) | Time of Flight |
| Sensing Mode (General) | Proximity |
| Device Type | Sensor |
| Feature: RS-232 | No |
| Feature: RS-485 | No |
| RS-422 | No |
| Feature: IO Link | No |
| Feature: Wireless | No |
| Feature: Quick Disconnect | Yes |
| Quick Disconnect Type | 7/8 in. (Mini) |
| Max Op. Relative NC Humidity | 100% |
| Feature: Chemical Resistant | No |
| Number of Pins | 5 |
| Adjustments | Teach Button; DIP Switches |
| Feature: Timing (Hold/Delay) | No |
| Min Response Time | 80 ms |
| Vibration | MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G). |
| Feature: Ultrasonic | Yes |
| Mechanical Shock | IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave |
| Min Sensing Distance | 250 mm |
| Feature: Clear Object Detection | Yes |
| Min Window Size | 25 mm |
| Max Measurement Range | 1-20 m |
| Output Protection | Protected against false pulse on power-up and continuous overload or short-circuit of outputs |
| SSI | No |
| Profibus | No |
| Feature: Remote Teach | Yes |
| Analog Voltage Output Rating | 10mA Max |
| Supply Protection Circuitry | Protected against reverse polarity and transient overvoltages |
| Connection | Integral QD |
| Country of Origin | US |
| NEMA / UL | NEMA 6P, NEMA 6P |
| Feature: Common Ethernet Protocol | No |
| Feature: PC Configurable | No |
| Indicator Type | LED |
| Warm-Up Time | 15 min |
| Ultrasonic Frequency | 128 kHz |
| Analog Linearity | 1.0% FS |
