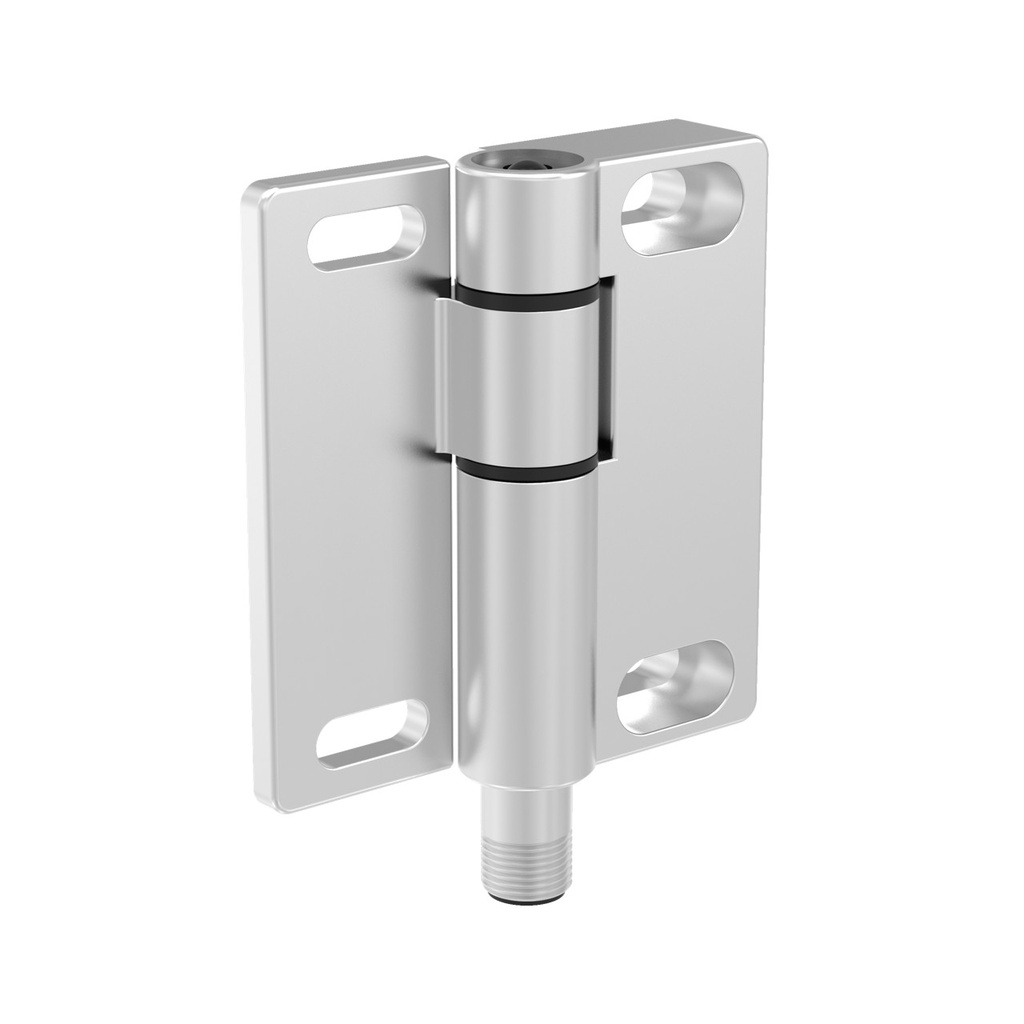

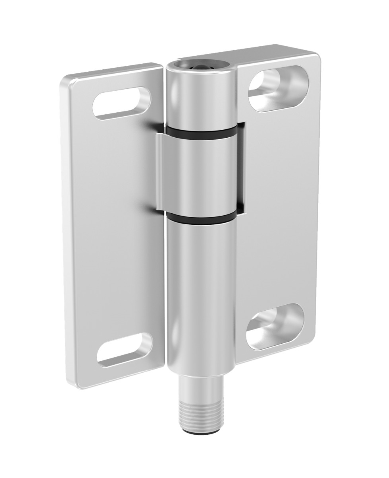

Hinge Safety Interlock Switch Zinc Die cast (SI-HG80DQD)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 46731
Weight: 0.8 lb(s)
Hinge Safety Interlock Switch Zinc Die cast
Features:
- Hinge Safety Interlock Switch Zinc Die cast
- Inline QD
- SPDT (1 NC/1 NO)
- Micro M12 4-pin (Dual Key) QD
Hinge Safety Interlock Switch Zinc Die cast (SI-HG80DQD)
Hinge Safety Interlock Switch Zinc Die cast
Brand_Name:Banner
Manufacturer Product Family:INTERLOCK SWITCH
Measurement Maximum:0
Min Operating Temperature:-25 °C
Max Operating Temperature:70 °C
Measurement Minimum:0
Ingress Protection:IP67
Device Type:Hinge
Housing Material_:Zinc Alloy Die-Cast
Feature: Washdown Rated:Yes
Feature: Quick Disconnect:Yes
Quick Disconnect Type:M12
Output:Contacts
Number of Pins:4
PL Rating:e
SISTEMA:B10d = 2 million
SIL Rating:SIL CL 3
Safety Category Rating:4
Feature: Lockable:No
Device Shape:Hinge
Switch Style:Contact
Coding Level/Tamper Resistance:Uncoded
Actuator (Safety) Contacts:1 NC/1 NO
Safety Category:Cat 4
Device Size:97 x 72 x 19 mm
Switch Point Positioning:One-Time Set
Range of Motion:180°
Connection Type:M12
Country of Origin:DE
Feature: In-Series Diagnostics:No
Mechanical Life:1 mil
Specifications
| Brand_Name | Banner |
| Manufacturer Product Family | INTERLOCK SWITCH |
| Measurement Maximum | 0 |
| Min Operating Temperature | -25 °C |
| Max Operating Temperature | 70 °C |
| Measurement Minimum | 0 |
| Ingress Protection | IP67 |
| Device Type | Hinge |
| Housing Material_ | Zinc Alloy Die-Cast |
| Feature: Washdown Rated | Yes |
| Feature: Quick Disconnect | Yes |
| Quick Disconnect Type | M12 |
| Output | Contacts |
| Number of Pins | 4 |
| PL Rating | e |
| SISTEMA | B10d = 2 million |
| SIL Rating | SIL CL 3 |
| Safety Category Rating | 4 |
| Feature: Lockable | No |
| Device Shape | Hinge |
| Switch Style | Contact |
| Coding Level/Tamper Resistance | Uncoded |
| Actuator (Safety) Contacts | 1 NC/1 NO |
| Safety Category | Cat 4 |
| Device Size | 97 x 72 x 19 mm |
| Switch Point Positioning | One-Time Set |
| Range of Motion | 180° |
| Connection Type | M12 |
| Country of Origin | DE |
| Feature: In-Series Diagnostics | No |
| Mechanical Life | 1 mil |
