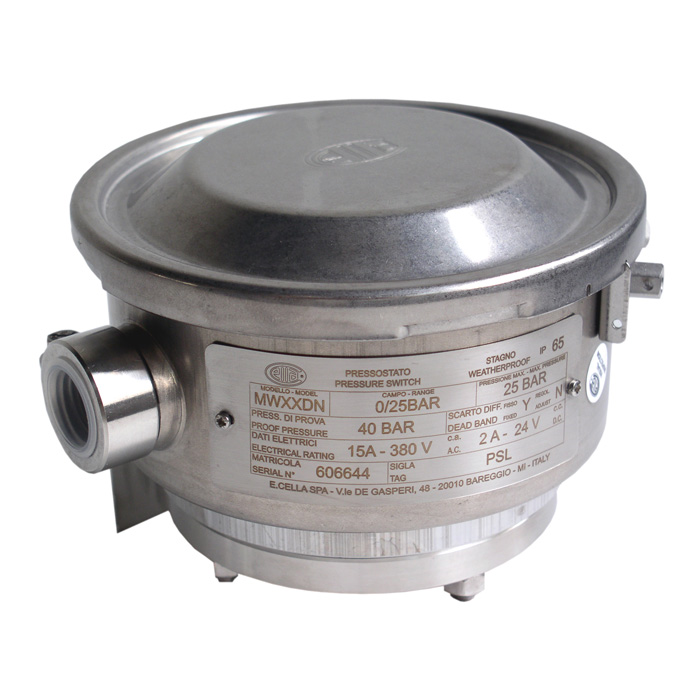

Representative photo. Please check item description for details.
Wika MW SERIES DIAPHRAGM PRESSURE SWITCH, 0-16BAR
Manufacturer: Wika Instrument Lp
Mfg Product Code: 45741741
Weight: 2.21 lb(s)
On Hand: 0
Features:
- Diaphragm pressure switch
- Stainless steel case
- Model MW
- Specifications according to data sheet: PV 31.10
- electric contacts: 2 x SPDT or 1 x DPDT silver contact
- setting range: 0...16 bar
- working range: Standard, working range = 0...16 bar, proof pressure 25 bar
- Set Point not defined
- process connection: 1/4 - 18 NPT-F
- electrical connection: 1/2 -14 NPT-F
- Enclosure with plate for wall or direct mounting
- Ingress Protection: IP66
- XXDN Diaphragm: Inconel 718/O-Ring: FPM/Connection: Stainless steel AISI 316L
Wika MW SERIES DIAPHRAGM PRESSURE SWITCH, 0-16BAR
Measurement Maximum:16.0
Process Connection Type:NPT
Max Operating Pressure:25 bar
Case Material:316 SS
Measurement Minimum:0
Output Communication Protocol:Contact Relay
Input Voltage:230 VAC
Ingress Protection:IP66
Specifications
| Measurement Maximum | 16.0 |
| Process Connection Type | NPT |
| Max Operating Pressure | 25 bar |
| Case Material | 316 SS |
| Measurement Minimum | 0 |
| Output Communication Protocol | Contact Relay |
| Input Voltage | 230 VAC |
| Ingress Protection | IP66 |
