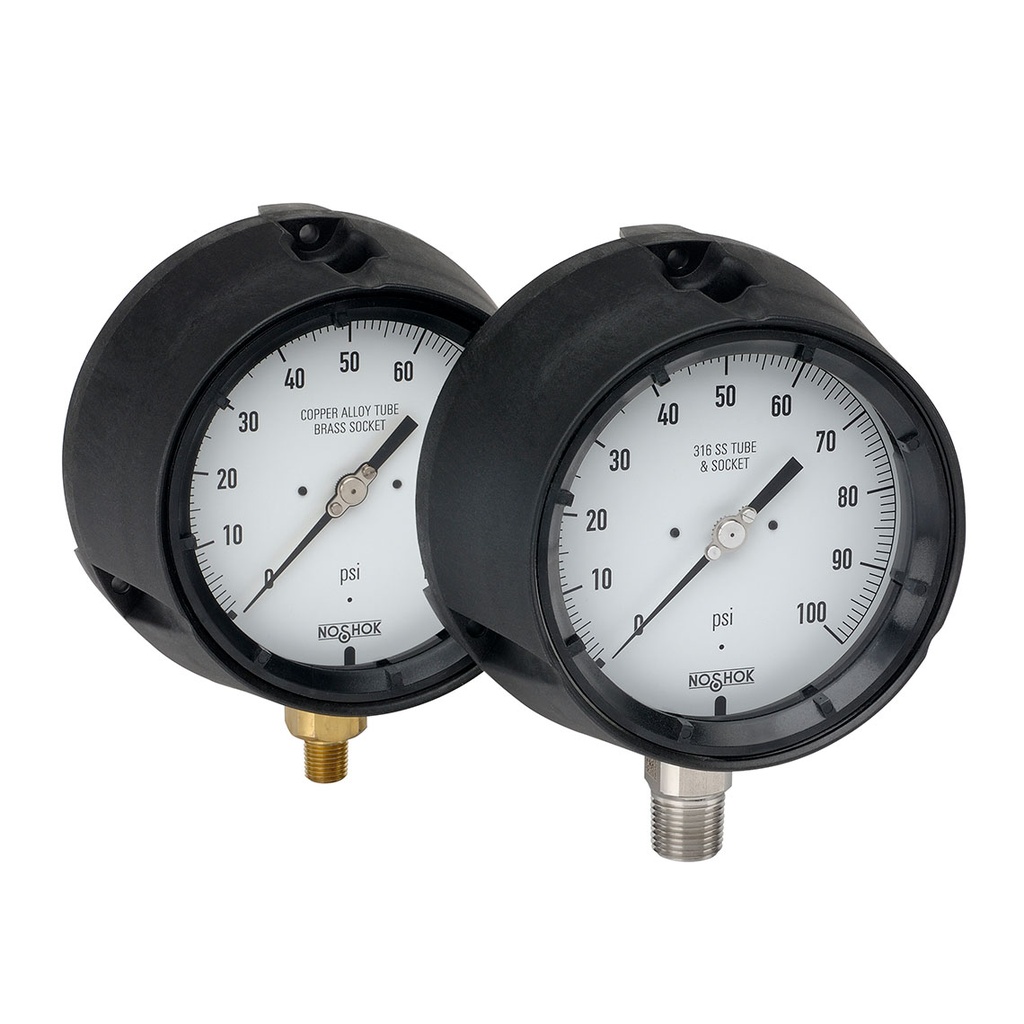

700 Series Stainless Steel Process Pressure Gauge, 0 psi to 600 psi
Manufacturer: Noshok Inc
Mfg Product Code: 45-760-600-psi
Weight: 0.8 lb(s)
4.5" 316 SS Internals, 600 psi, 1/2" (NPT) Male Bottom, Glycerin Filled
- Turret style dry (field fillable) and liquid filled process gauges
- Vacuum and compound ranges through 0 psi to 15,000 psi
- Black Polypropylene safety case with solid front and blow out back
- 316 Stainless Steel or Brass wetted parts
- Cleaning for Oxygen Service (O2) is available only for dry or HL (Halocarbon) filled gauges
- For gauges with MIP, GY40 fill is standard for liquid filled gauges
Applications:
- Injection molding machines
- Laboratory & test equipment
- Power generation
- Oil field & offshore
- Utilities
- Water & wastewater
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
700 Series Stainless Steel Process Pressure Gauge, 0 psi to 600 psi
4.5" 316 SS Internals, 600 psi, 1/2" (NPT) Male Bottom, Glycerin Filled
Measurement Maximum:600.0
Process Connection Type:NPT-Male
Dial Size:4-1/2 in (115 mm)
Pressure Range:0 to 600 psi
Min Operating Pressure:0 psi
Max Operating Pressure:600 psi
Min Operating Temperature:-4 °F
Product Unit of Measure:psi single scale
Max Operating Temperature:212 °F
Process Connection Size:1/2"
Process Connection Location:Bottom
Accuracy:±0.5% full scale
Case Material:PP, Black
Wetted Material:316 SS
Measurement Minimum:0
Specifications
| Measurement Maximum | 600.0 |
| Process Connection Type | NPT-Male |
| Dial Size | 4-1/2 in (115 mm) |
| Pressure Range | 0 to 600 psi |
| Min Operating Pressure | 0 psi |
| Max Operating Pressure | 600 psi |
| Min Operating Temperature | -4 °F |
| Product Unit of Measure | psi single scale |
| Max Operating Temperature | 212 °F |
| Process Connection Size | 1/2" |
| Process Connection Location | Bottom |
| Accuracy | ±0.5% full scale |
| Case Material | PP, Black |
| Wetted Material | 316 SS |
| Measurement Minimum | 0 |
