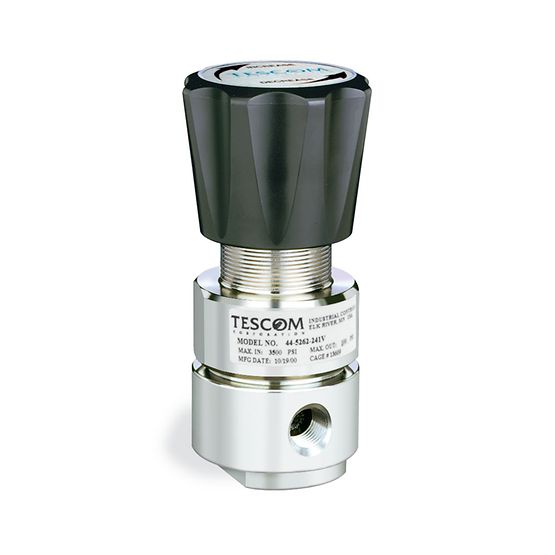

TESCOM™ 44-5200 Series Pressure Regulator Control

Manufacturer: Tescom Corporation

Mfg Product Code: 44-5263-343V

Weight: 2.0 lb(s)

Maximum Inlet Pressure400 and 3500 psig / 27.6 and 241 bar
Outlet Pressure Ranges 1-25, 1-50, 2-100, 2-250, 5-500, 5-600 psig
0.07-1.7, 0.07-3.4, 0.14-6.9, 0.14-17.2, 0.35-34.5, 0.35-41.4 bar
MaterialBody, Piston: 316 Stainless Steel or Brass
Bonnet: 300 Series Stainless Steel or Brass
Seats: Vespel®
O-Ring: Viton®
Filter (40 micron): 316 Stainless Steel
Remaining Parts300 Series Stainless Steel and Brass
Operating Temperature-15°F to 200°F / -26°C to 93°C
For extended temperatures from -40°F to 400°F / -40°C to 204°C, consult TESCOM.
Port Size & Type1/4 NPTF
Flow CapacityCv = 0.06, 0.15
Load TypeDome, Air
