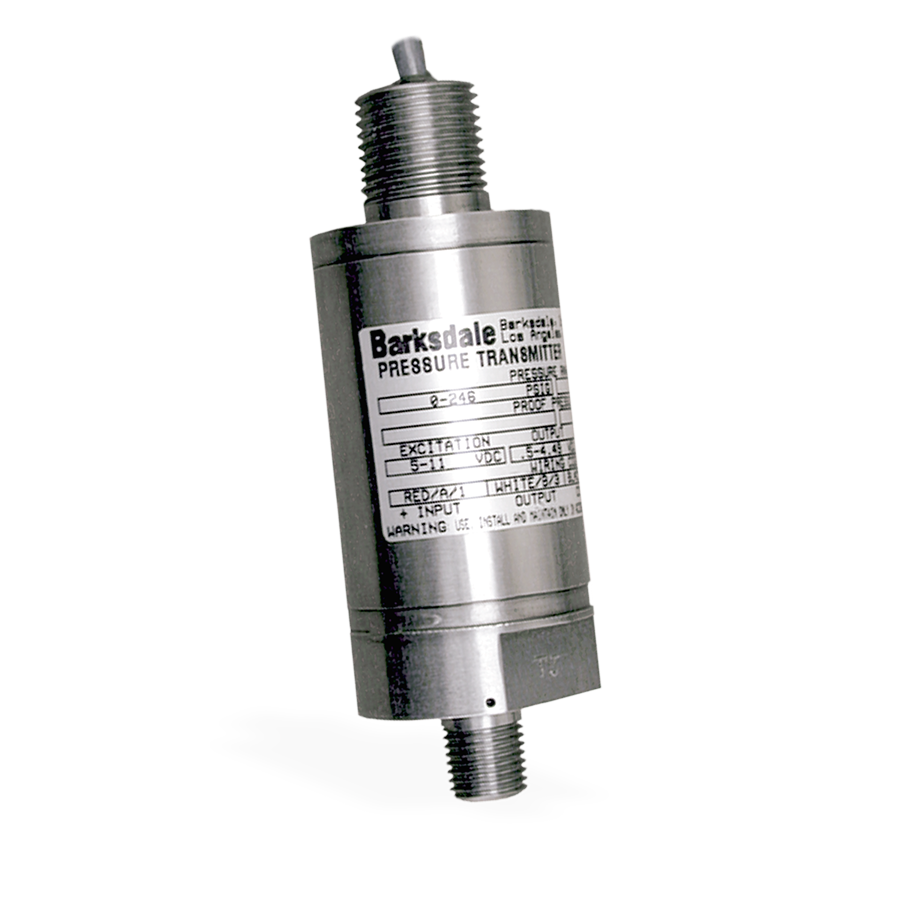

Representative photo. Please check item description for details.
Barksdale 425X Explosion Proof Transducer, 4 to 20 mA Analog Output, 0 to 150 psig (0 to 10.3 barg), 1/4-8 NPT
Manufacturer: Barksdale Inc Dba Dynalco Controls Corp
Mfg Product Code: 425X-05
Weight: 0.75 lb(s)
On Hand: 0
Barksdale's 420X Series Explosion-Proof Transducers provide accurate and reliable pressure measurement in hazardous locations. Designed for safety and performance in potentially explosive atmospheres, these transducers minimize the risk of ignition.
Key Features:
- Enhanced Safety:
- Explosion-proof design prevents ignition of flammable vapors, minimizing the risk of explosions.
- Non-incendive design eliminates the need for external zener barriers, reducing installation costs.
- High Accuracy:
- Diffused silicon sensor for precise pressure measurement.
- Rugged Construction:
- Rugged stainless steel construction for durability in harsh environments.
- NEMA 4X, 7, and 9 enclosures, and ATEX/IECEx certification for 425X Series for global use.
- Superior Performance:
- Superior EMI, ESD, and RFI protection for reliable operation in challenging environments.
- Built-in high pressure snubber (2000 psi and above) for improved reliability.
- Versatile Outputs:
- Available in 5V (Series 423X), 4-20mA (Series 425X), and 0-10V (Series 426X) outputs.
Applications:
- Oil & gas pipelines
- Oil patch
- Petrochemical plants
- Refineries
- Pulp and paper mills
- Coal and oil fired power plants
- Cement plants
- Gas transfers for fuel systems
- Gas panels
- Gas mixing systems
Barksdale 425X Explosion Proof Transducer, 4 to 20 mA Analog Output, 0 to 150 psig (0 to 10.3 barg), 1/4-8 NPT
Measurement Maximum:150.0
Process Connection Type:NPT-Male
Process Connection Location:Bottom
Measurement Minimum:0
Output Communication Protocol:4-20 mADC
NEMA / UL:NEMA 4X
Specifications
| Measurement Maximum | 150.0 |
| Process Connection Type | NPT-Male |
| Process Connection Location | Bottom |
| Measurement Minimum | 0 |
| Output Communication Protocol | 4-20 mADC |
| NEMA / UL | NEMA 4X |
