  3. SSA-EB1 Panel-mount Emergency Stop Push Button: (SSA-EB1PL1-02)
Public Pricelist (v2)

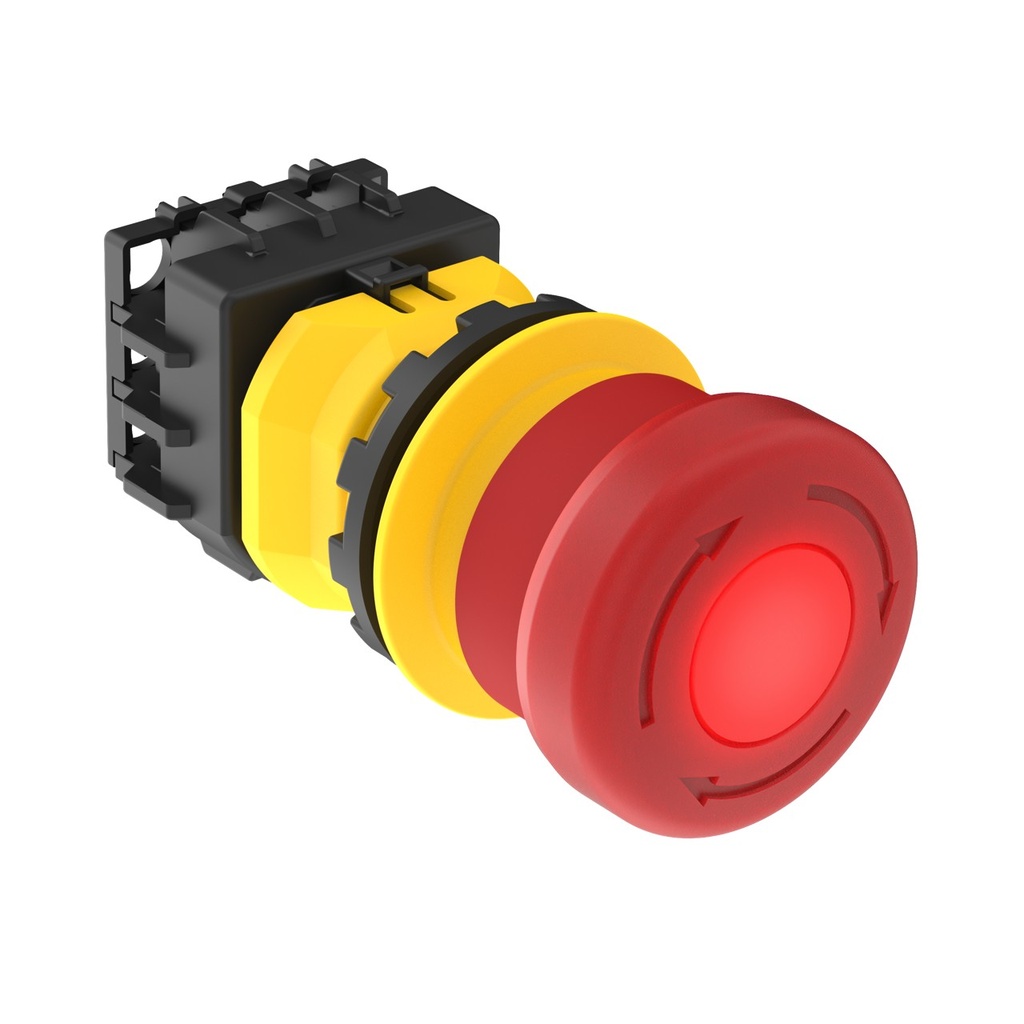

Representative photo. Please check item description for details.

SSA-EB1 Panel-mount Emergency Stop Push Button: (SSA-EB1PL1-02)

https://www.branom.com/web/image/product.template/24169/image_1920?unique=aa6e1a8
(0 review)

Manufacturer: Banner Engineering Corp

Mfg Product Code: 42206

Weight: 0.15 lb(s)

On Hand: 0

SSA-EB1 Panel-mount Emergency Stop Push Button:

Features:

  • SSA-EB1 Panel-mount Emergency Stop Push Button:
  • Illuminated 40 mm Actuator
  • Contacts: 2NC
  • Screw Terminals
  • 30 mm mounting hole

$ 75.00 75.0 USD $ 75.00

$ 75.00

Not Available For Sale

  • Valve: Actuation
  • Measurement Maximum
  • Min Operating Temperature
  • Max Operating Temperature
  • Measurement Minimum
  • Ingress Protection
  • Housing Style
  • Device Type
  • Housing Material_
  • Physical Dimensions
  • Feature: Quick Disconnect
  • Contact Quantity
  • Actuated Color
  • Actuator/Button Material
  • Contact Rating
  • Mounting Thread/Style
  • Feature: Illuminated
  • Feature: Lockable
  • Illumination Type
  • Armed Color (Solid)
  • Connection Type
  • Country of Origin
  • Button Diameter
  • Feature: Button Shroud
  • Feature: Actuation

This combination does not exist.

Contact Us

SSA-EB1 Panel-mount Emergency Stop Push Button: (SSA-EB1PL1-02)

  • Valve: Actuation
  • Measurement Maximum
  • Min Operating Temperature
  • Max Operating Temperature
  • Measurement Minimum
  • Ingress Protection
  • Housing Style
  • Device Type
  • Housing Material_
  • Physical Dimensions
  • Feature: Quick Disconnect
  • Contact Quantity
  • Actuated Color
  • Actuator/Button Material
  • Contact Rating
  • Mounting Thread/Style
  • Feature: Illuminated
  • Feature: Lockable
  • Illumination Type
  • Armed Color (Solid)
  • Connection Type
  • Country of Origin
  • Button Diameter
  • Feature: Button Shroud
  • Feature: Actuation

$ 75.00 75.0 USD $ 75.00

$ 75.00

Not Available For Sale

This combination does not exist.

SSA-EB1 Panel-mount Emergency Stop Push Button:

Valve: Actuation:Twist/Pull-to-Release
Measurement Maximum:0
Min Operating Temperature:-25 °C
Max Operating Temperature:55 °C
Measurement Minimum:0
Ingress Protection:IP65
Housing Style:Base
Device Type:Push Button
Housing Material_:Polycarbonate
Physical Dimensions:81 x 37 x 40 mm
Feature: Quick Disconnect:No
Contact Quantity:2 NC
Actuated Color:Red or OFF
Actuator/Button Material:Thermoplastic
Contact Rating:2 A @ 30 VDC
Mounting Thread/Style:Panel
Feature: Illuminated:Yes
Feature: Lockable:No
Illumination Type:Button
Armed Color (Solid):Off or Red
Connection Type:Screw Terminal
Country of Origin:JP
Button Diameter:40 mm
Feature: Button Shroud:No
Feature: Actuation:Twist/Pull-to-Release

Specifications

Valve Features
Valve: Actuation Twist/Pull-to-Release
Uncategorized
Measurement Maximum 0
Min Operating Temperature -25 °C
Max Operating Temperature 55 °C
Measurement Minimum 0
Ingress Protection IP65
Housing Style Base
Device Type Push Button
Housing Material_ Polycarbonate
Physical Dimensions 81 x 37 x 40 mm
Feature: Quick Disconnect No
Contact Quantity 2 NC
Actuated Color Red or OFF
Actuator/Button Material Thermoplastic
Contact Rating 2 A @ 30 VDC
Mounting Thread/Style Panel
Feature: Illuminated Yes
Feature: Lockable No
Illumination Type Button
Armed Color (Solid) Off or Red
Connection Type Screw Terminal
Country of Origin JP
Button Diameter 40 mm
Feature: Button Shroud No
Feature: Actuation Twist/Pull-to-Release
