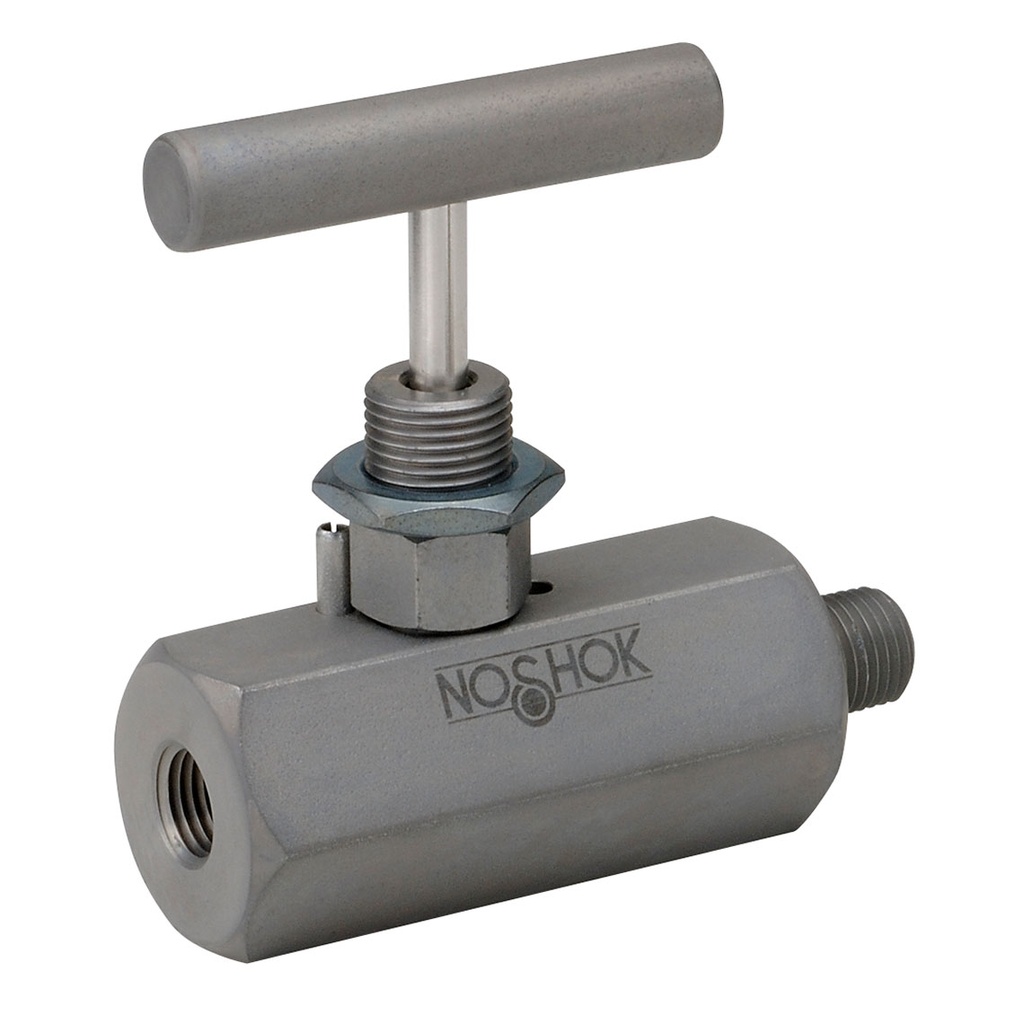

Representative photo. Please check item description for details.
Needle Valve, Hard Seat, 1/4 NPT Female - 1/4 NPT Female, Steel, 0.187" Orifice, Panel Mount (2 nuts)
Manufacturer: Noshok Inc
Mfg Product Code: 402-FFC-PM2
Weight: 0.5 lb(s)
On Hand: 0
- 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
- Blow-out proof stem provides a secondary stem seal in the full open position
- FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE or Graphite packing optional (certain NPT sizes only)
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Needle Valve, Hard Seat, 1/4 NPT Female - 1/4 NPT Female, Steel, 0.187" Orifice, Panel Mount (2 nuts)
Orifice Size:0.187"
Seat:Hard Seat
Measurement Maximum:0
Process Connection Type:NPT-Female/NPT-Female
Valve Type:Female-Female
Valve Material:Steel
Pressure Rating:10,000 psi @ 200 °F
Flow Coefficient:0.44 Cv
Process Connection Size:1/4"
Measurement Minimum:0
Body Material:Steel
Seat Type:Hard Seat
Specifications
| Orifice Size | 0.187" |
| Seat | Hard Seat |
| Measurement Maximum | 0 |
| Process Connection Type | NPT-Female/NPT-Female |
| Valve Type | Female-Female |
| Valve Material | Steel |
| Pressure Rating | 10,000 psi @ 200 °F |
| Flow Coefficient | 0.44 Cv |
| Process Connection Size | 1/4" |
| Measurement Minimum | 0 |
| Body Material | Steel |
| Seat Type | Hard Seat |
