CIRCULATION FLANGE HEATER

Manufacturer: Watlow Electric Manufacturing Company

Mfg Product Code: 4007-8515

Weight: 0.01 lb(s)

Circ Flange Size: 6 Inch
Circ Flange Class: 150 lb.
Flange/Vessel Material: Steel Flange
Inlet/Outlet Nozzle Size: 2 inch
Nozzle Connection: Male NPT
Cold End (below flange): 4.8750
Inlet Configuration: U Configuration, Inlet nozzle near flange
Orientation: Horizontal
Mounting: Saddles
Process Sensor (Outlet Nozzle): None
Gasket: 700 degree F, Compressed Fiber
Flange Voltage: 480
Flange Wattage: 75000
Watt Density: 53.8
B Dimension (Immersed element length): 35.8125
Number of Elements: 15 Elements
Electrical Phase configuration: 3 Phase - Delta wiring
Number of Circuits: 5
Flange Size: 6 Inch Flange
Flange Class: 150 lb.
Flange Material: Steel Flange
Sheath Material: Alloy 800
Baffles? No Baffles
Cold End Section below the Flange: 4.8750
Passivate wetted parts? No
Process Sensor: No Process Sensor
Hi-Limit Sensor: Type J Thermocouple
Thermowell required? No
Mounting Orientation: Horizontal
Number of Hilimit Sensors (1 or 2): 1
First Hi-Limit Location: 23.8750
Stand-off Terminal Enclosure? No
Terminal Enclosure: General Purpose (incl. CSA)
CE Low Volt Directive required? No
Nameplate Part Number: 4007-8502 FL7
Flange part number: 4007-8502

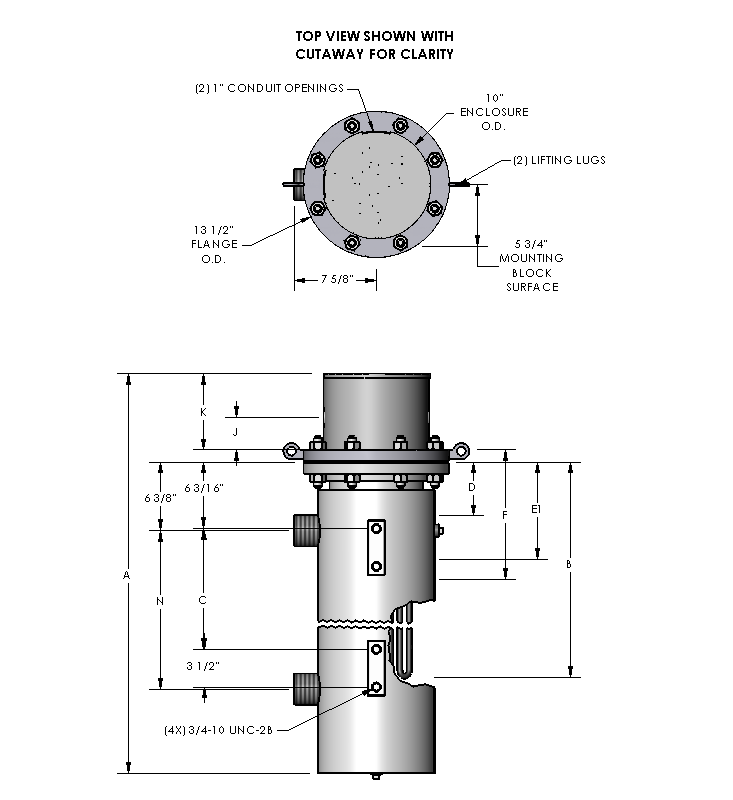

Assembly Drawing: PP_SDL_U_H.dgn
Shell Thickness 0.2800
L1: 38.6850
L2: 4.5000
L3: 15.4688
L4: 15.4688
L5: 19.9688
T1: 0.3750
Nozzle OD: 2.3750
N1: 4.8750
N2: 35.8125
N3: 20.3438
N4: 20.3438
M1: 7.1250
M2: 34.3125
MH: 9.5000
Weldcap Length: 3.5000
OL: 42.5625
IL: 42.5625
S1: 2.6875
VL: 42.5625
LL: 28.3750
