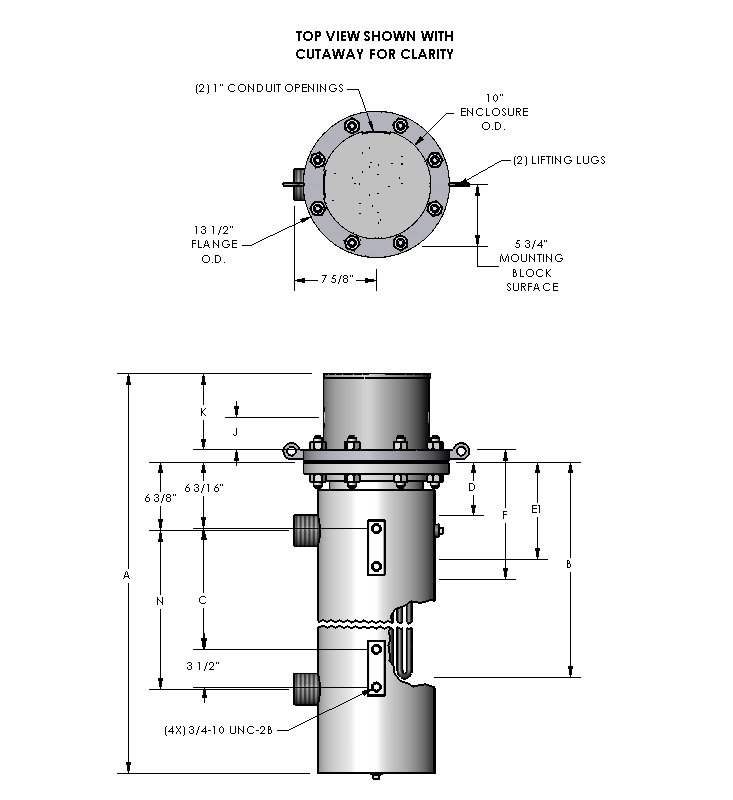

Watlow Circulation Flange Heater
Manufacturer: Watlow Electric Manufacturing Company
Mfg Product Code: 4001-3254
Weight: 0.01 lb(s)
Circ Flange Voltage: 480
Circ Flange Wattage: 41664
Watt Density: 16.1
B Dimension (Immersed element length): 54.6875
Number of Elements: 18 Elements
Electrical Phase configuration: 3 Phase - Wye wiring
Number of Circuits: 2
Flange Size: 8 Inch Flange
Flange Class: 150 lb.
Flange Material: Steel Flange
Sheath Material: Alloy 800
Baffles? No Baffles
Cold End Section below the Flange: 6.8125
Passivate wetted parts? No
Process Sensor: Type K Thermocouple
Hi-Limit Sensor: Type K Thermocouple
Mounting Orientation: Vertical Top
Number of Hilimit Sensors (1 or 2): 1
First Hi-Limit Location: 7.8125
Stand-off Terminal Enclosure? No
Terminal Enclosure: CSA - Explosion Proof (standard)
Process Temperature (F): (max. 176 degrees) 140.0
Max. Working Pressure (PSIG): 100
Heating Media: (max. of 15 characters) 2190 TEP oil
Mounting Orientation: Vertical
CE Low Volt Directive required? No
Nameplate Part Number: 4001-3254 CF7
