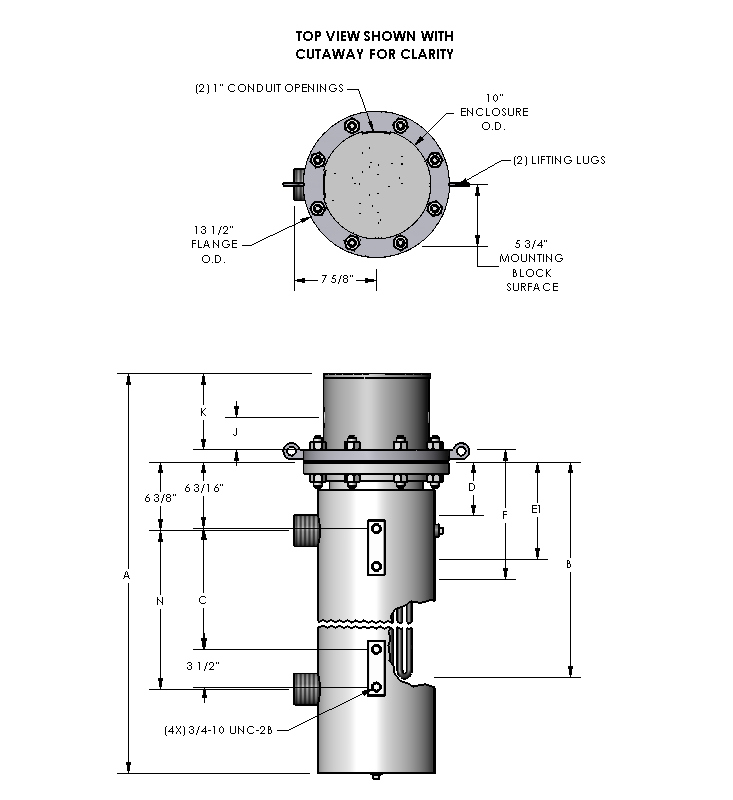

Watlow Circulation Flange Heater

Manufacturer: Watlow Electric Manufacturing Company

Mfg Product Code: 4001-2714

Weight: 0.01 lb(s)

Flange Voltage: 480
Flange Wattage: 76000
Watt Density: 59.7
B Dimension (Immersed element length): 76.0000
Number of Elements: 6 Elements
Electrical Phase configuration: 3 Phase - Delta wiring
Number of Circuits: 2
Flange Size: 4 Inch Flange
Flange Class: 150 lb.
Flange Material: 316 Stainless Steel Flange
Sheath Material: 316 SS
Baffles? No Baffles
Cold End Section below the Flange: 5.0000
Passivate wetted parts? Yes
Process Sensor: No Process Sensor
Hi-Limit Sensor: Type J Thermocouple
Thermowell required? Yes
Mounting Orientation: Horizontal
Number of Hilimit Sensors (1 or 2): 1
First Hi-Limit Location: 51.0000
Stand-off Terminal Enclosure? No
Terminal Enclosure: CSA Enclosure 4 (St.Steel)
CE Low Volt Directive required? No
Nameplate Part Number: 4001-2714 FL7
