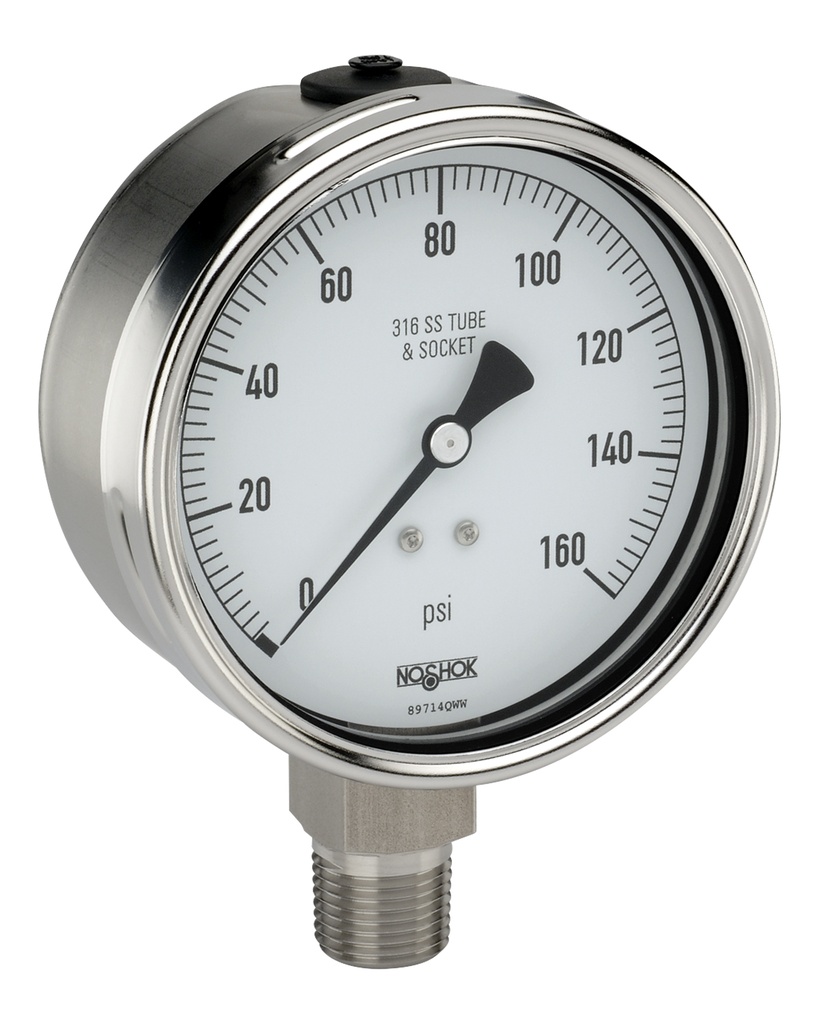

500 Series Stainless Steel Liquid Filled Pressure Gauge, 0 psi to 160 psi, 1/4" Bottom Connection, Adjustable Pointer
Manufacturer: Noshok Inc
Mfg Product Code: 40-500-160-psi-1/4-AP
Weight: 0.5 lb(s)
4" 304 SS Case, 316 SS Internals, 160 psi, 1/4" (NPT) Male Bottom, Glycerin Filled, Adjustable Pointer
- Corrosion-resistant fillable dry or liquid-filled gauge
- Vacuum and compound ranges through 0 psi to 20,000 psi
- 316 Stainless Steel wetted parts
- Cleaning for Oxygen Service (O2) is available only for dry or HL (Halocarbon) filled gauges
Applications:
- Chemical processing
- Oil field & offshore
- Paper mills
- Agriculture plants
- Marine
- Water & wastewater
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
500 Series Stainless Steel Liquid Filled Pressure Gauge, 0 psi to 160 psi, 1/4" Bottom Connection, Adjustable Pointer
4" 304 SS Case, 316 SS Internals, 160 psi, 1/4" (NPT) Male Bottom, Glycerin Filled, Adjustable Pointer
Measurement Maximum:160.0
Process Connection Type:NPT-Male
Dial Size:4 in (100 mm)
Pressure Range:0 psi to 160 psi
Min Operating Pressure:0 psi
Max Operating Pressure:160 psi
Min Operating Temperature:-4 °F
Product Unit of Measure:psi single scale
Max Operating Temperature:212 °F
Process Connection Size:1/4"
Process Connection Location:Bottom
Lens Material:Instrument Glass
Accuracy:±1% full scale
Case Material:304 SS
Wetted Material:316 SS
Measurement Minimum:0
Specifications
| Measurement Maximum | 160.0 |
| Process Connection Type | NPT-Male |
| Dial Size | 4 in (100 mm) |
| Pressure Range | 0 psi to 160 psi |
| Min Operating Pressure | 0 psi |
| Max Operating Pressure | 160 psi |
| Min Operating Temperature | -4 °F |
| Product Unit of Measure | psi single scale |
| Max Operating Temperature | 212 °F |
| Process Connection Size | 1/4" |
| Process Connection Location | Bottom |
| Lens Material | Instrument Glass |
| Accuracy | ±1% full scale |
| Case Material | 304 SS |
| Wetted Material | 316 SS |
| Measurement Minimum | 0 |
