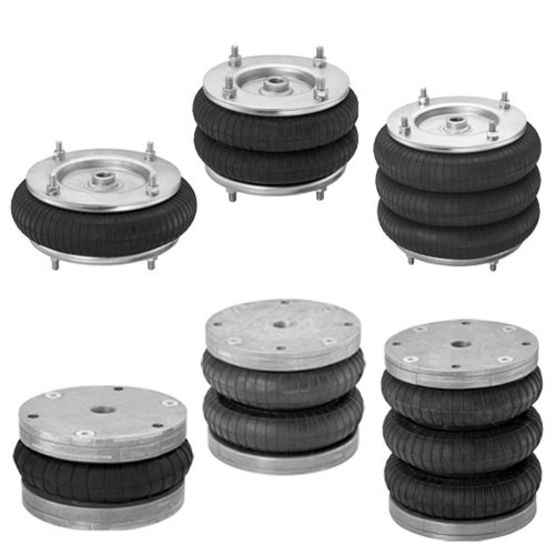

Representative photo. Please check item description for details.
AVENTICS BCC Series 6" Double Synthetic Rubber Bellows Actuator, G 1/2, 11000 N Fmax
Manufacturer: Asco LP
Mfg Product Code: 3999791030
Weight: 3.97 lb(s)
On Hand: 0
6" Double Synthetic Rubber Bellows Actuator, G 1/2, 11000 N Fmax
The AVENTICS Series BCC cylinders are bellow cylinders with removable mounting parts. Users have the option of replacing the rubber bellows themselves. Mounting via internal thread or threaded bolt.
Features
- Bellows: double
- Type: Bellow actuator with mounting ring and cover
- Functional principle: Single-acting, retracted without pressure
- Compressed air connection: G 1/2
- Cover diameter: 152.5 mm
- Feature: 6x2
- Permissible angle of tilt max.: 25 °
- Max. effective stroke: 95 mm
- Min. radial installation space: 195 mm
- Force min.: 4200 N
- Force max.: 11000 N
- Working pressure min.: 0 bar
- Working pressure max: 8 bar
- Min. ambient temperature: -30 °C
- Max. ambient temperature: 90 °C
- Medium: Compressed air
- Pressure for determining forces: 6 bar
- Weight: 1.8 kg
- Material bellow: Chloroprene rubber
- Material front cover: Aluminum:
