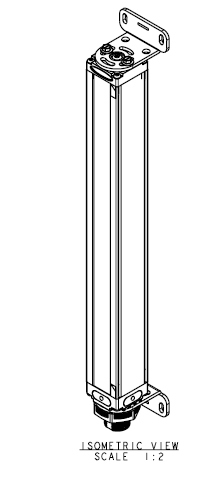

Representative photo. Please check item description for details.
MINI-ARRAY: Emitter Sensor 295mm (11.6 in.) (BMEL1216A)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 38541
Weight: 1.72 lb(s)
On Hand: 0
MINI-ARRAY: Emitter Sensor 295mm (11.6 in.)
Features:
- MINI-ARRAY: Emitter Sensor 295mm (11.6 in.)
- Beam Spacing: 19mm (0.75 in.) total Beams = 16
- System Range (w/ matching receiver) = 0.9 to 17m
- System Requires 2 Quick-Disconnect Cables
MINI-ARRAY: Emitter Sensor 295mm (11.6 in.) (BMEL1216A)
MINI-ARRAY: Emitter Sensor 295mm (11.6 in.)
Measurement Maximum:0
Min Operating Temperature:-20 °C
Max Operating Temperature:70 °C
Power Supply:12 VDC
Measurement Minimum:0
Sensing Mode (Detailed):Emitter
Beam Spacing:19 mm
Device Type:Three-Piece
Housing Length:356 mm
Max Relative Humidity:95%
Number of Beams:16
Housing Material_:Aluminum
Array Length:286 mm
Country of Origin:US
Emitter/Receiver Range:0.9 to 16.5 m
Specifications
| Measurement Maximum | 0 |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 70 °C |
| Power Supply | 12 VDC |
| Measurement Minimum | 0 |
| Sensing Mode (Detailed) | Emitter |
| Beam Spacing | 19 mm |
| Device Type | Three-Piece |
| Housing Length | 356 mm |
| Max Relative Humidity | 95% |
| Number of Beams | 16 |
| Housing Material_ | Aluminum |
| Array Length | 286 mm |
| Country of Origin | US |
| Emitter/Receiver Range | 0.9 to 16.5 m |
