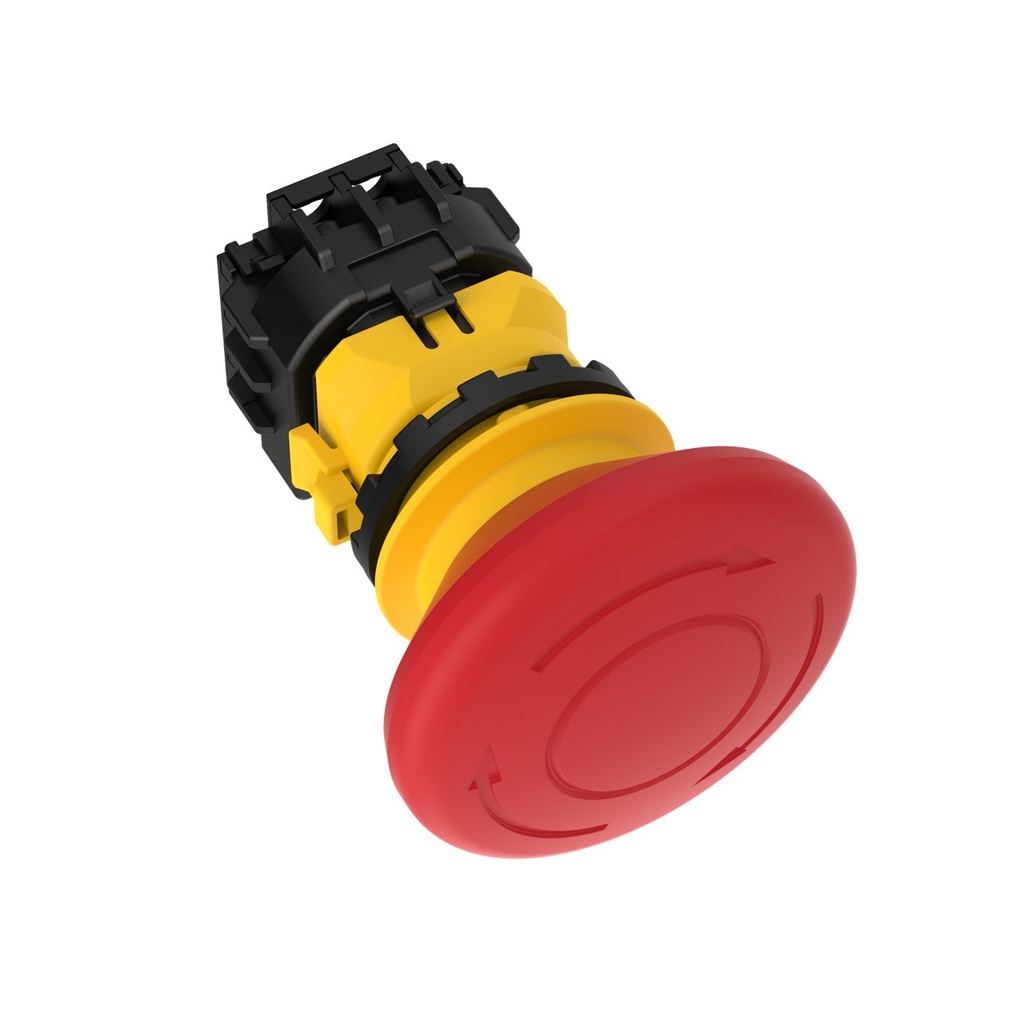

SSA-EB2 Panel-mount Emergency Stop Push Button: (SSA-EB2P-04)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 31948
Weight: 0.2 lb(s)
SSA-EB2 Panel-mount Emergency Stop Push Button:
Features:
- SSA-EB2 Panel-mount Emergency Stop Push Button:
- 60mm Actuator
- Contacts: 4NC
- Screw Terminals
- 30mm mounting hole
SSA-EB2 Panel-mount Emergency Stop Push Button: (SSA-EB2P-04)
SSA-EB2 Panel-mount Emergency Stop Push Button:
Valve: Actuation:Twist/Pull-to-Release
Measurement Maximum:0
Min Operating Temperature:-25 °C
Max Operating Temperature:60 °C
Measurement Minimum:0
Ingress Protection:IP65
Housing Style:Base
Device Type:Push Button
Housing Material_:Polycarbonate
Physical Dimensions:81 x 37 x 60 mm
Feature: Quick Disconnect:No
Contact Quantity:4 NC
Actuator/Button Material:Thermoplastic
Contact Rating:2 A @ 24 VDC
Mounting Thread/Style:Panel
Feature: Illuminated:No
Feature: Lockable:No
Connection Type:Screw Terminal
Country of Origin:JP
Button Diameter:60 mm
Feature: Button Shroud:No
Feature: Actuation:Twist/Pull-to-Release
Specifications
| Valve Features | |
|---|---|
| Valve: Actuation | Twist/Pull-to-Release |
| Uncategorized | |
|---|---|
| Measurement Maximum | 0 |
| Min Operating Temperature | -25 °C |
| Max Operating Temperature | 60 °C |
| Measurement Minimum | 0 |
| Ingress Protection | IP65 |
| Housing Style | Base |
| Device Type | Push Button |
| Housing Material_ | Polycarbonate |
| Physical Dimensions | 81 x 37 x 60 mm |
| Feature: Quick Disconnect | No |
| Contact Quantity | 4 NC |
| Actuator/Button Material | Thermoplastic |
| Contact Rating | 2 A @ 24 VDC |
| Mounting Thread/Style | Panel |
| Feature: Illuminated | No |
| Feature: Lockable | No |
| Connection Type | Screw Terminal |
| Country of Origin | JP |
| Button Diameter | 60 mm |
| Feature: Button Shroud | No |
| Feature: Actuation | Twist/Pull-to-Release |
