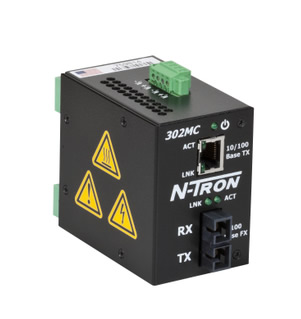

302MC Series, 2-Port, N-Tron 302MC Industrial Media Converter with Monitoring, SC 80km
Manufacturer: Red Lion Controls, Inc.
Mfg Product Code: 302MCE-N-SC-80
Weight: 1.75 lb(s)
Red Lion's N-Tron® series 302 media converters offer high reliability and redundant power inputs. With excellent EMI protection and metal DIN-rail mountable housings, discover how our 302 media converters can easily expand your industrial Ethernet network. These media converters are also available with optional N-View™ OPC monitoring technology.
Features
- Unmanaged Operation
- Plug and Play Operation
- 2 Port Industrial Media Converter
- One 10/100BaseTX RJ-45 Port
- One 100BaseFX Singlemode 80km Fiber Port with SC Connectors
- Compact Size, Small Footprint
- Full IEEE 802.3 Compliance
- Extended Environmental Specifications
- -40°C to 70°C Operating Temperature
- Rugged Steel DIN-Rail or Panel Mount Enclosure
- RJ-45 Port Supports Full/Half Duplex Operation
- RJ-45 Port Auto Senses Speed and Flow Control
- MDIX Auto Cable Sensing (RJ-45)
- Redundant Power Inputs (10-30VDC)
- N-View™ Monitoring Technology
302MC Series, 2-Port, N-Tron 302MC Industrial Media Converter with Monitoring, SC 80km
Brand_Name:Red Lion
Manufacturer Product Family:302MC Series Media Converters
Min Operating Temperature:-40 °C
Max Operating Temperature:70 °C
Mounting Options:DIN Rail
Case Material:Metal
Fiber Type:Singlemode
Ethernet Connector Type:SC
No. Ports:2
10/100 Ports:1
100 Fiber Ports:1
Distance Rating:80 km
Specifications
| Brand_Name | Red Lion |
| Manufacturer Product Family | 302MC Series Media Converters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Mounting Options | DIN Rail |
| Case Material | Metal |
| Fiber Type | Singlemode |
| Ethernet Connector Type | SC |
| No. Ports | 2 |
| 10/100 Ports | 1 |
| 100 Fiber Ports | 1 |
| Distance Rating | 80 km |
