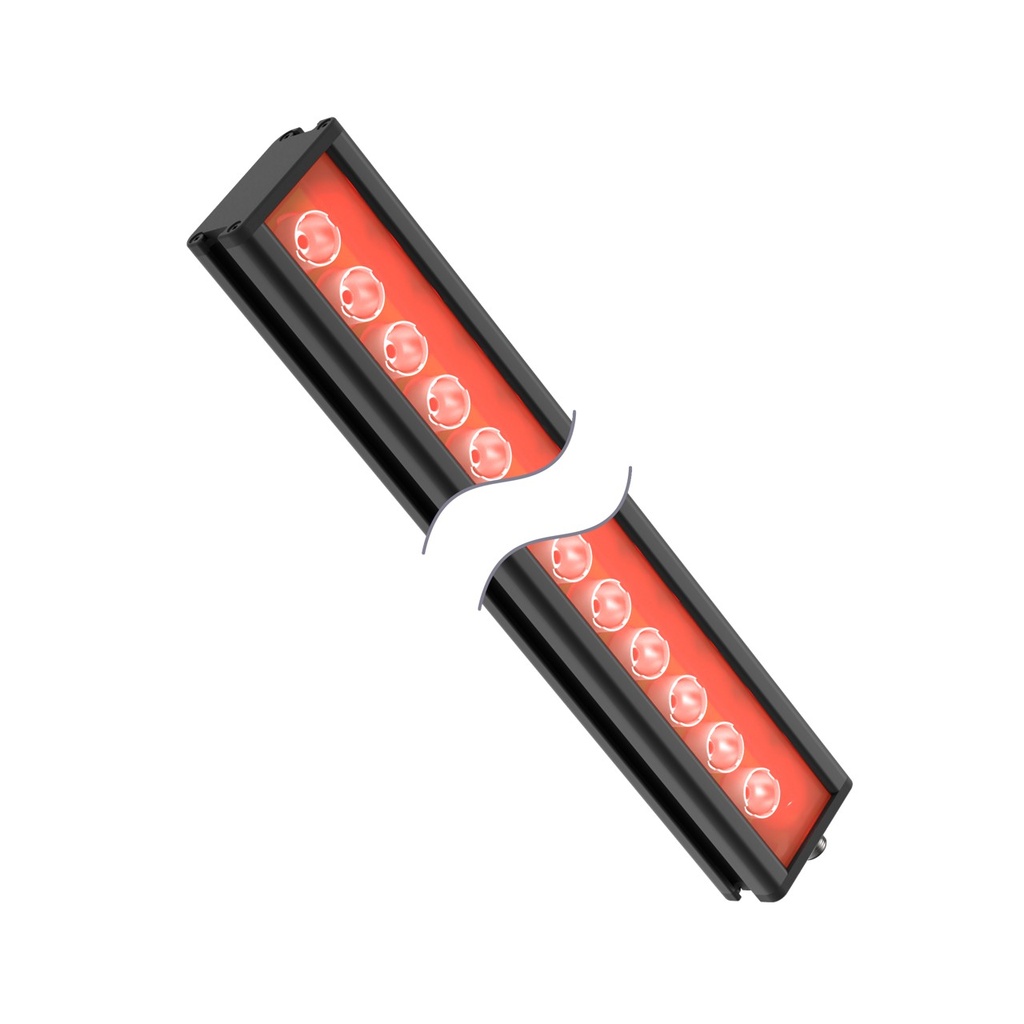

Vision Light-Linear Back Light 1160mm (LEDRLB1160XW6-XQ)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 29704
Weight: 5.5 lb(s)
On Hand: 0
Vision Light-Linear Back Light 1160mm
Features:
- Vision Light-Linear Back Light 1160mm
- Voltage: 24 V dc
- Environmental Rating: IP50 Color: Red
- Euro 5-pin Quick Disconnect Connector
Vision Light-Linear Back Light 1160mm (LEDRLB1160XW6-XQ)
Vision Light-Linear Back Light 1160mm
Power:DC
Measurement Maximum:0
Max Current Color:4000 mA
Max Operating Temperature:50 °C
Measurement Minimum:0
Housing Style:Linear Strip
Device Type:Linear Array Backlight
Housing Material_:Anodized Aluminum, Anodized Aluminum
Physical Dimensions:1205.6 x 59.4 x 32.6 mm
Supply Voltage:24 V DC
Feature: Quick Disconnect:Yes
Color Technology:Standard LED
Quick Disconnect Type:M12
Number of Input Pins/Conductors:5
Color:Red
QD Type/Cable Length:M12; requires mating cordset
Connection Type:Integral QD, Integral QD
Country of Origin:US
Specifications
| Power | DC |
| Measurement Maximum | 0 |
| Max Current Color | 4000 mA |
| Max Operating Temperature | 50 °C |
| Measurement Minimum | 0 |
| Housing Style | Linear Strip |
| Device Type | Linear Array Backlight |
| Housing Material_ | Anodized Aluminum, Anodized Aluminum |
| Physical Dimensions | 1205.6 x 59.4 x 32.6 mm |
| Supply Voltage | 24 V DC |
| Feature: Quick Disconnect | Yes |
| Color Technology | Standard LED |
| Quick Disconnect Type | M12 |
| Number of Input Pins/Conductors | 5 |
| Color | Red |
| QD Type/Cable Length | M12; requires mating cordset |
| Connection Type | Integral QD, Integral QD |
| Country of Origin | US |
