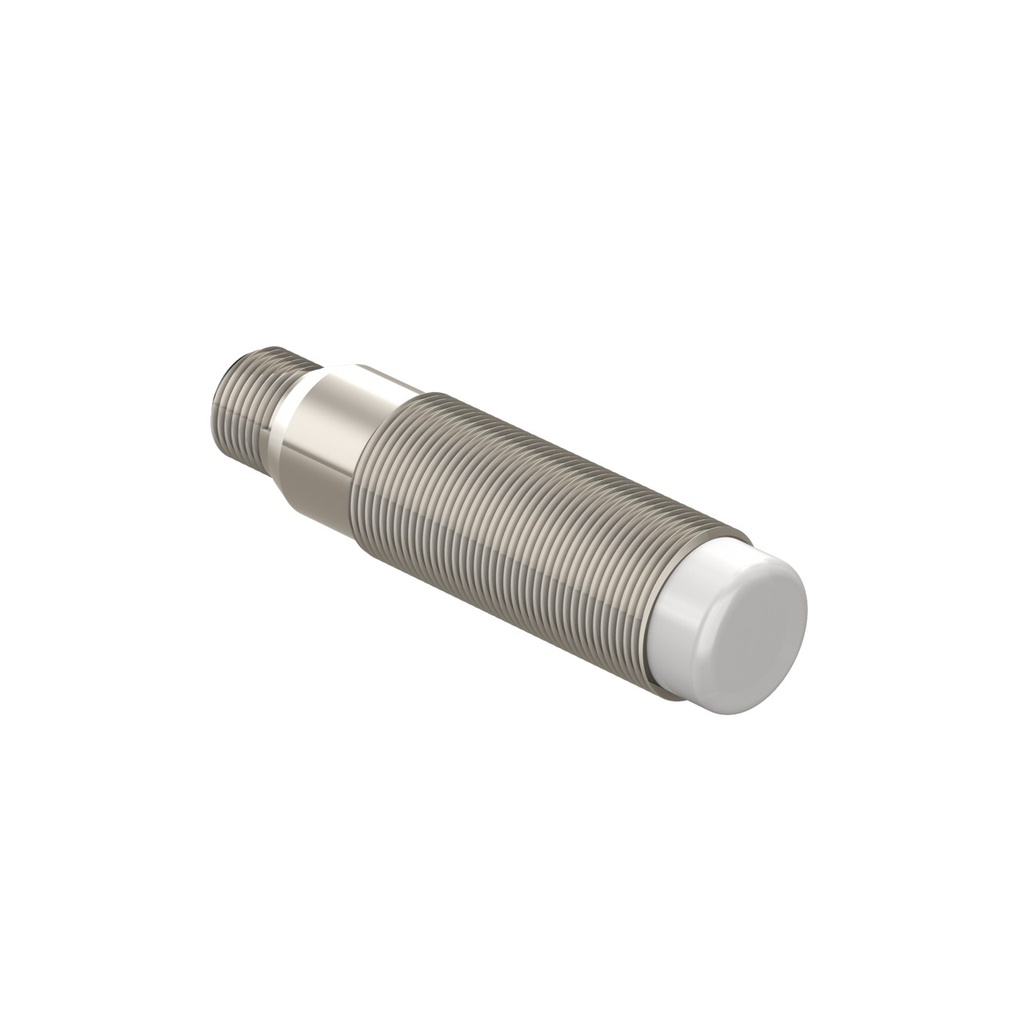

EZ-LIGHT: M18 Series: Nickel-plated Brass Housing M18x1 Threads (M18GRWPQ)
Manufacturer: Banner Engineering Corp
Mfg Product Code: 29471
Weight: 0.18 lb(s)
Features:
- EZ-LIGHT: M18 Series: Nickel-plated Brass Housing M18x1 Threads
- 3-Color General Purpose
- Green Red White Light
- Steady Display
- PNP (Sourcing): Encapsulated IP67
- Euro 4-pin Integral Connector
EZ-LIGHT: M18 Series: Nickel-plated Brass Housing M18x1 Threads (M18GRWPQ)
Power:DC
Feature: Display:No
Feature: Display Lighting:No
Max Current Color:25 mA
Min Operating Temperature:-40 °C
Max Operating Temperature:50 °C
Power Source:VDC
Measurement Minimum:0
Ingress Protection:IP67, IP67
Housing Style:Barrel Mount - Flat Window
Housing Material_:Nickel-Plated Brass
Feature: Hazardous Area:No
Feature: IO Link:No
Feature: Modbus RTU:No
Physical Dimensions:16.5 x 70.4 mm
Feature: Wireless:No
Feature: Indication:Yes
Color Option 3:White
Supply Voltage:10-30 VDC
Color Option 2:Red
Feature: Quick Disconnect:Yes
Color Technology:Standard LED
Feature: Audible:No
Color Option 1:Green
Color Input Control:Individual (One wire/color, same number of colors as input wires)
Multi-Color Device:Single Color On
Animation Option 1:Solid On
Quick Disconnect Type:M12
Number of Colors / Segments:3
Product Size (mm):18 mm
Number of Input Pins/Conductors:4
Input Type:PNP
Feature: Pro-Editor Compatible (Discrete):No
Mounting Thread:M18 x 1.0
Max Input Response Time (ms):1 ms
Feature: Chemical Resistant:No
Connection Type:Integral QD
Country of Origin:US
Cord/Cable Length:150 mm
Specifications
| Power | DC |
| Feature: Display | No |
| Feature: Display Lighting | No |
| Max Current Color | 25 mA |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 50 °C |
| Power Source | VDC |
| Measurement Minimum | 0 |
| Ingress Protection | IP67, IP67 |
| Housing Style | Barrel Mount - Flat Window |
| Housing Material_ | Nickel-Plated Brass |
| Feature: Hazardous Area | No |
| Feature: IO Link | No |
| Feature: Modbus RTU | No |
| Physical Dimensions | 16.5 x 70.4 mm |
| Feature: Wireless | No |
| Feature: Indication | Yes |
| Color Option 3 | White |
| Supply Voltage | 10-30 VDC |
| Color Option 2 | Red |
| Feature: Quick Disconnect | Yes |
| Color Technology | Standard LED |
| Feature: Audible | No |
| Color Option 1 | Green |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Multi-Color Device | Single Color On |
| Animation Option 1 | Solid On |
| Quick Disconnect Type | M12 |
| Number of Colors / Segments | 3 |
| Product Size (mm) | 18 mm |
| Number of Input Pins/Conductors | 4 |
| Input Type | PNP |
| Feature: Pro-Editor Compatible (Discrete) | No |
| Mounting Thread | M18 x 1.0 |
| Max Input Response Time (ms) | 1 ms |
| Feature: Chemical Resistant | No |
| Connection Type | Integral QD |
| Country of Origin | US |
| Cord/Cable Length | 150 mm |
