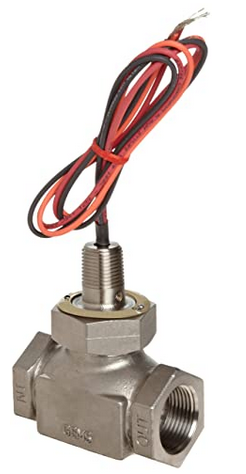

Gems FS-200 Flow Switch, 2" NPT, Stainless Steel Body, SPDT, 10 GPM Set Point

Manufacturer: Setra Systems LLC (dba Gems Sensors)

Mfg Product Code: 27112

Weight: 5.0 lb(s)

FS-200 Series Flow Switches offer accurate flow detection, with 1% repeatability, over a broad range of flow settings and port sizes. Its durable construction delivers long-life reliability in either water or oil. Generous flow paths keep pressure drop

low. These switches are ideal for detection of improper flow rates in high volume lubrication, cooling or process systems. Applications include: Protect Bearings or Gears (oil separators, fuel systems, pumps, compressors, presses), Electronics or

Machinery (heat exchangers, semiconductor manufacturing equipment, induction furnaces, radio transmitters), Process Systems (water filtration and reverse osmosis, chlorinators, de-icers, sterilizers, evaporators).

Sku: 27113

Sensor Type: Shuttle Type

Model: FS-200

Primary Material Of Construction: Alloy

Body Material: 316 Stainless Steel

Wetted Materials: 316 Stainless Steel, Teflon®, Viton, Ceramic

Minimum Pressure: 300

500 psi

Maximum Pressure: 400 psi

Minimum Temperature: -20°F

Maximum Temperature: 300°F

Flow Setting: 15 GPM

Flow Setting Range: 10.01-20.0 GPM

Adjustable Range: N/A

Set Point Accuracy: ±10%

Set Point Differential: 15%

Switch Type: SPDT (20 VA)

Port Size: 2" NPT Female

Electrical Termination: 24" Long, 18 AWG, Polymeric Leads

Recommended Filtration: 150 micron

Approvals: UL Recognized, UL Explosion Proof, CE, CSA, FM

Weight: 8.06
