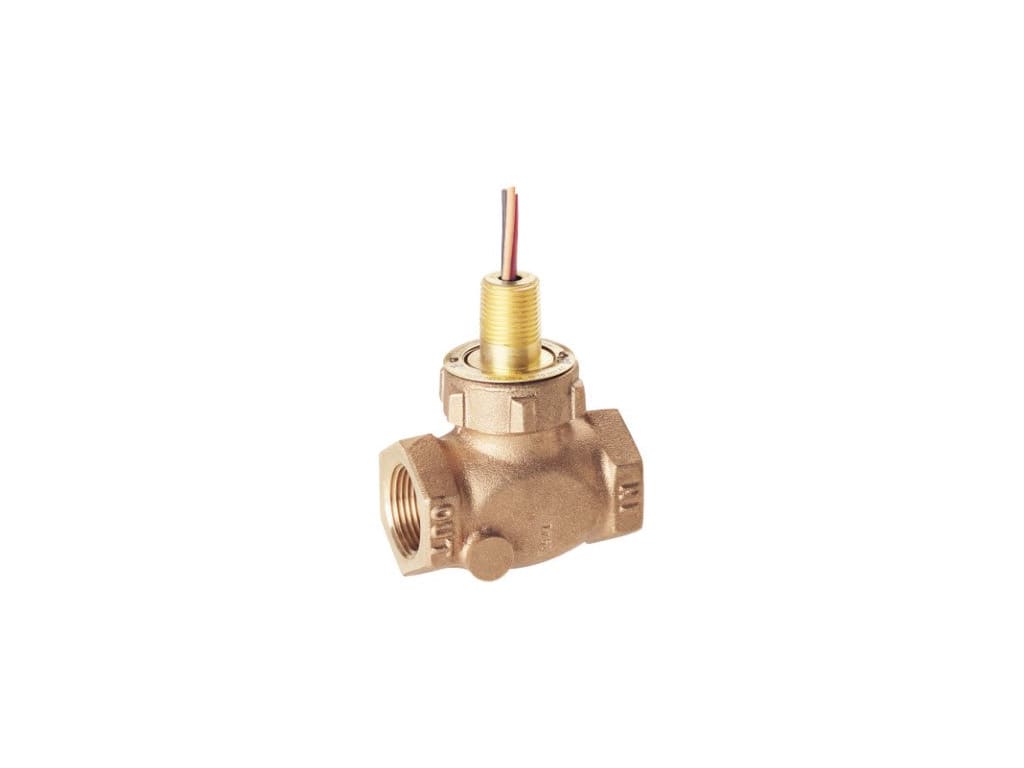

Gems FS-200 Series Flow Switch 2.0 GPM Flow Setting, 1" NPT Female, Bronze, Straight-Through
Manufacturer: Setra Systems LLC (dba Gems Sensors)
Mfg Product Code: 27053
Weight: 1.0 lb(s)
Primary Material of Construction Alloy
Sensor Type Shuttle Type
Adjustable Range N/A
Flow Setting (GPM) 2.00
Body Material Bronze
Port Size 1" NPT Female
Switch Type SPDT (20VA)
Set Point Accuracy ±10%
Maximum Pressure (PSI) 300 - 500
Minimum Temperature (°F) -20
Maximum Temperature 300
Electrical Termination 18 AWG, 24"-26" long Polymeric Leads
Set Point Differential 15%
Wetted Materials Bronze, Teflon®,316 Stainless Steel, Viton, Ceramic
Approvals UL Recognized, UL Explosion Proof, CE, CSA, FM
Recommended Filtration 150 micron
