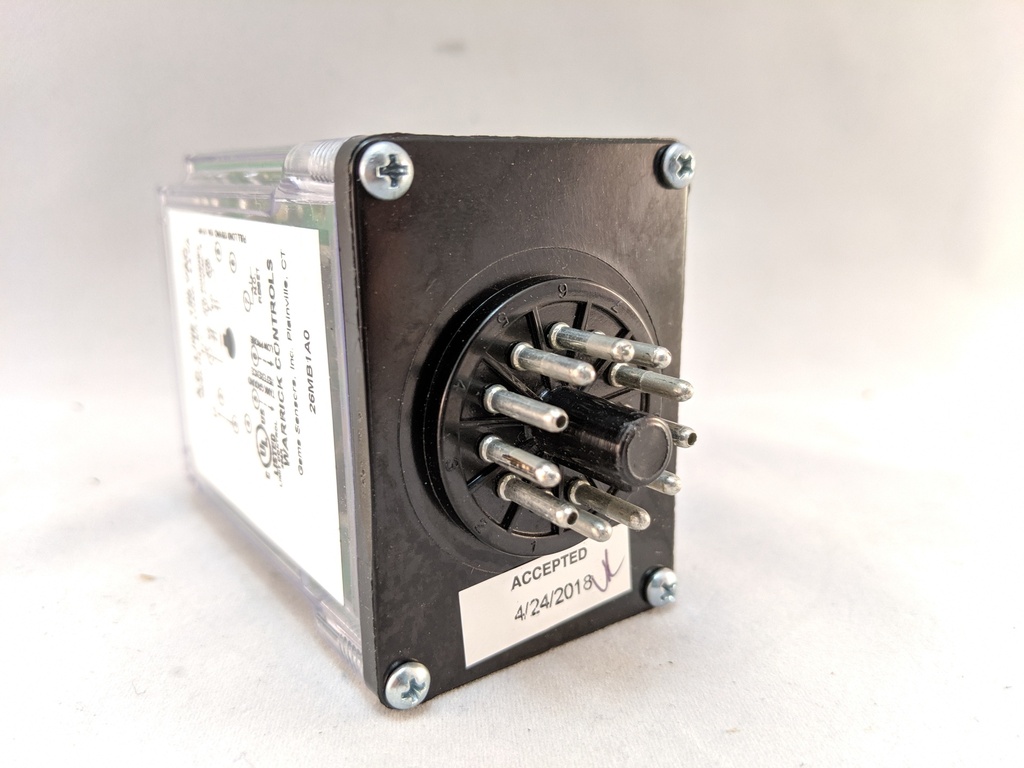

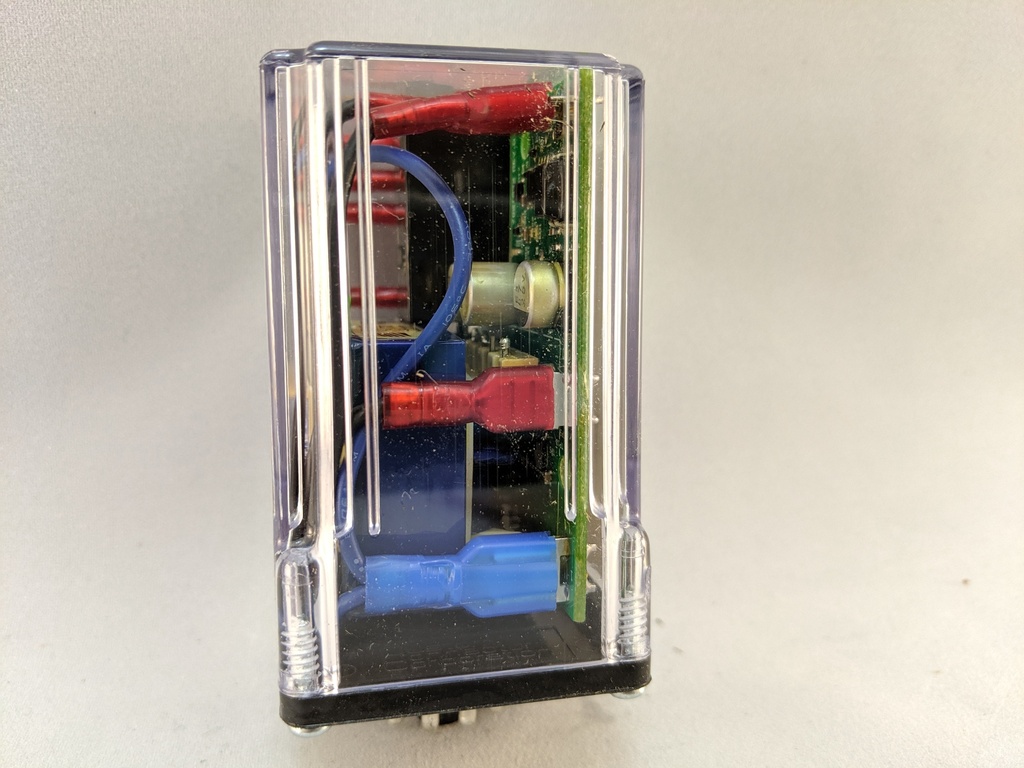

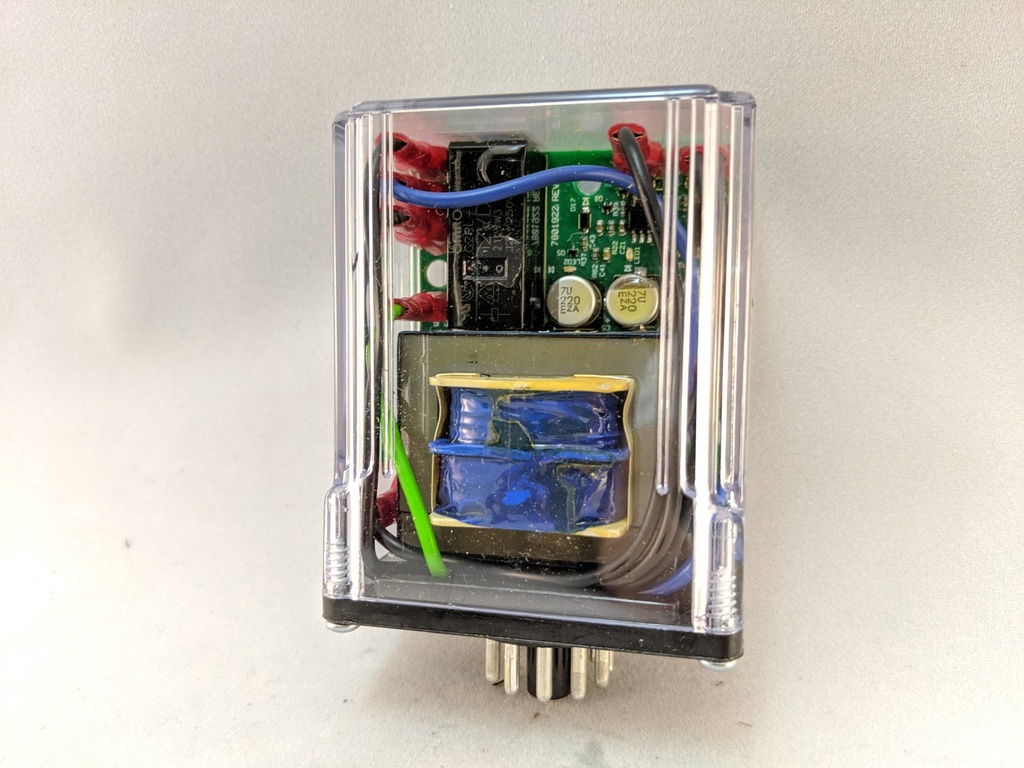

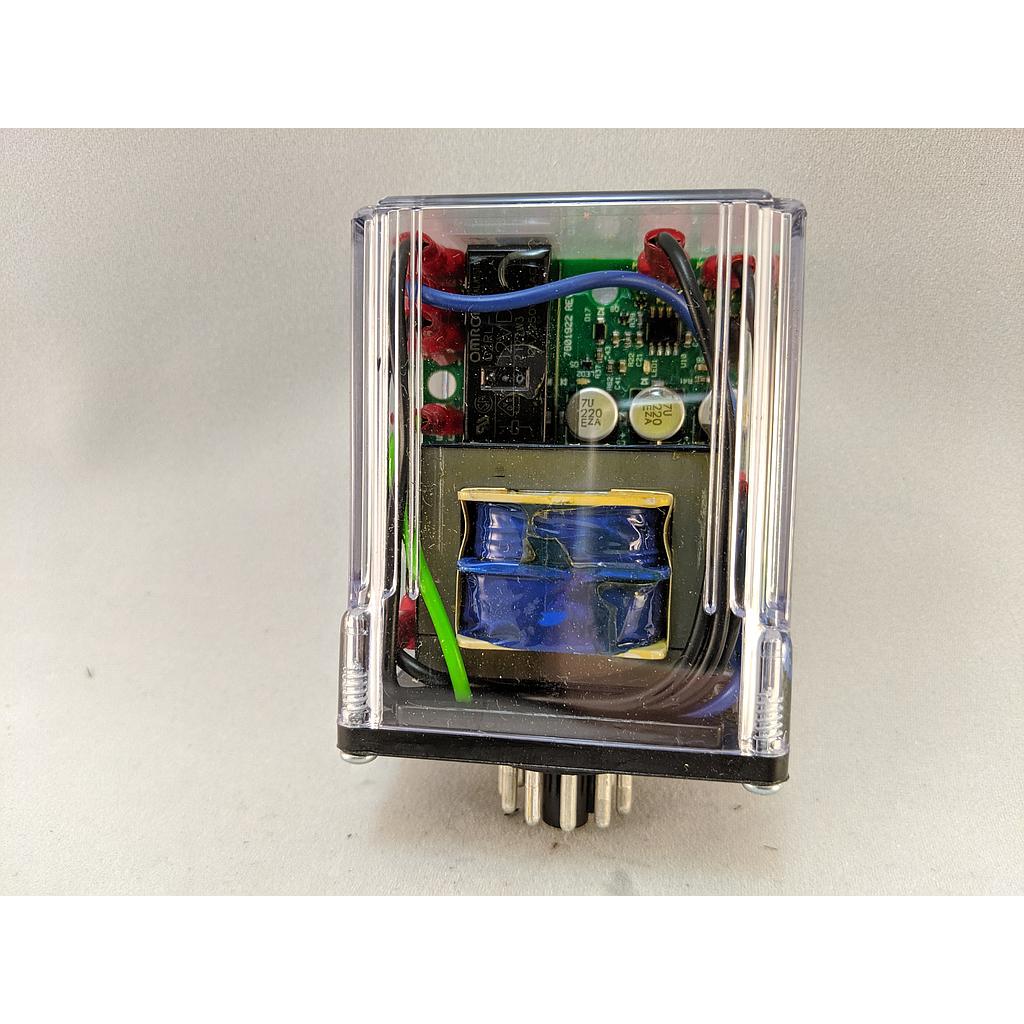

Low-Water Cutoff Level Control, 10k Ohm Sensitivity, 120VAC, 11 Pin Octal Mount, No Enclosure, N.C Pushbutton and Power Outage Features

Manufacturer: Setra Systems LLC (dba Gems Sensors)

Mfg Product Code: 26MB1A0F

Weight: 0.01 lb(s)

Series 26M Low-Water Cutoff Plug-In Module is designed for low-water cutoff protection and meets CSD1 requirements for boiler low-water cutoff. Series 26M features powered contacts. If non-powered contacts are required, please contact factory and request

Sku: 26MB1A0F

Model: 26M

Sensor Type: Low Water Cutoff Controls

Mode Of Operation: Direct

Sensitivity: 10 K ohms

Control Style: Plug-In Module

Socket Style: 11 Pin Octal

Standoff Style: N/A

Enclosure: N/A

Contact Design: 1 Normally Open & 1 Normally Closed (powered)

Contact Rating: 10 Amp Resistive 1/3 horse power

Supply Voltage: 120 VAC

Secondary Voltage: 12 VAC

Terminal Style: Screw Connector

Minimum Temperature: -40°F

Maximum Temperature: 150°F

Protection: Non-Intrinsically Safe

Approvals: UL 353 for use in Boilers

F = PUSHBUTTON, POWER OUTAGE FEATURE

Weight: 1.1
